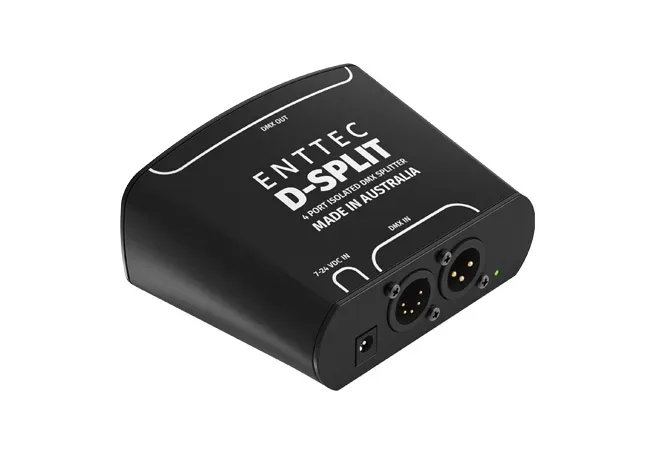

Enttec 4 port DMX Split

The D-Split is an optically-isolated DMX splitter and repeater for DMX512. With one input and four outputs, the D-Split gives you the ultimate flexibility to link up to 32
DMX fixtures.
Need more outputs? Simply add more D-Splits to your chain!
The small, light and portable D-Split offers a great solution to extend your DMX chain, without sacrificing the quality.
ANSI E1.11 – USITT DMX512-A  compatible. Each unit repeats and re-buffers all 512 channels of DMX from the input on each output.



Kogus *

Tootekood: 70578-70579 Kategooria:

Kirjeldus

Connect and Extend
Instead of having to make all fixtures fit within a single daisy chain, each of the four outputs from the D-Split can be the start of its own chain, and multiple D-Splits can be linked together to expand further.
DMX pass through
As the two male DMX inputs of the D-Split are linked (designed for one DMX input at a time), as an installer, you can create non-standard, female-to-female DMX cabling to create a DMX chain of up to 32 D-Splits. Simply daisy chain each male XLR together from a single DMX source.
This is a way to ensure your DMX source can travel between the input side of your D-Splits, even if one isn’t powered on.
Wide voltage range

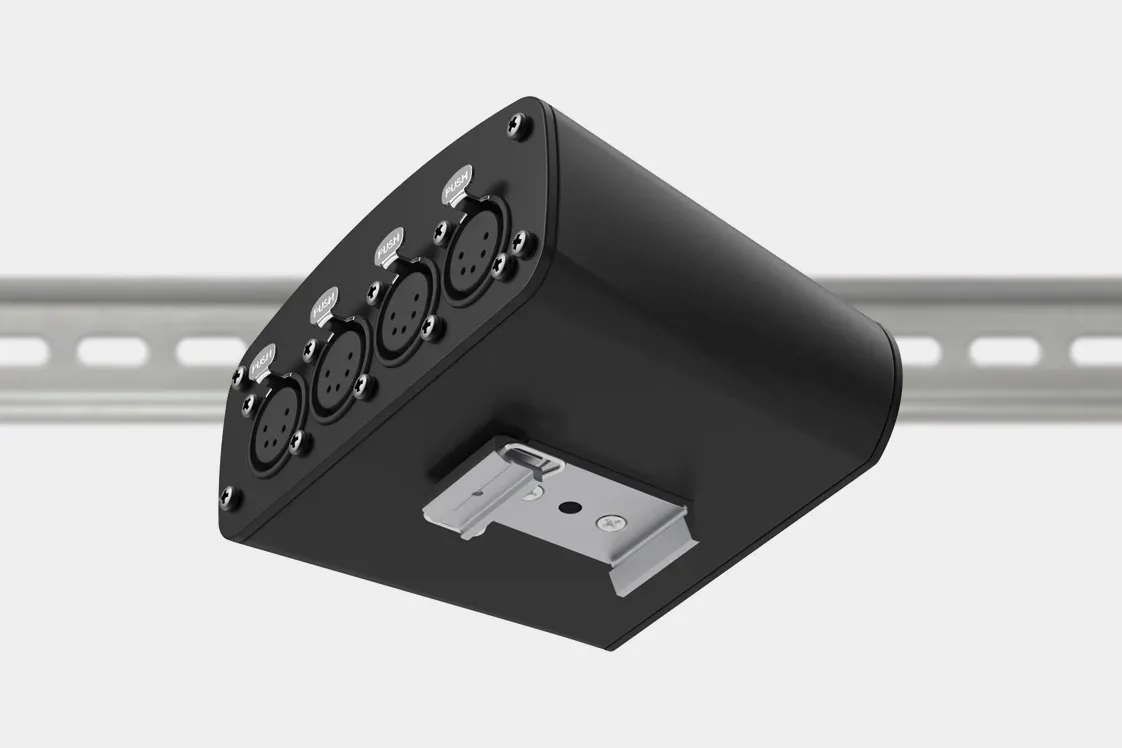

The D-Split is shipped with a universal DC power adaptor as standard. However, if space is tight and you want to share a single power supply between all of your devices (e.g. in a DIN Cabinet), it can accept 7-24V DC input.
Stealth design
The updated D-Split case design features a robust ABS construction with a single power LED, allowing it to blend into the background of your projects.
1000V optical isolation
Each output port features protection up to 1000V of stray voltage, meaning any issues stay on the DMX line and don’t jump across into the rest of your system.
Using a D-Split between your DMX controller and lights is a smart way to help protect your precious gear from getting damaged by DMX cabling faults or stray voltage, all whilst making your DMX wiring scheme far more flexible.
Simply connect your fixtures and controls – let D-Split take care of the rest.



Lisainfo

Kaal 0.16 kg
Mõõtmed 11.68 × 8.64 × 5.02 cm
