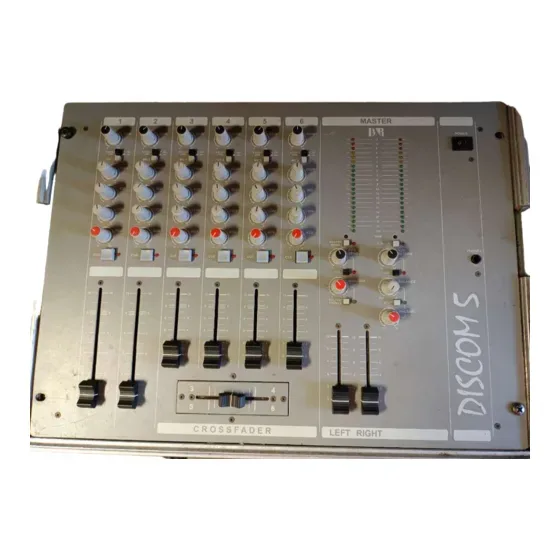

D&R Discom 5
Music mixer.
Kirjeldus
Inputs
Mic input balanced 2 kOhm.
Mic noise -122 dBr (A-weighted).
Sensitivity: -70dB min, 0dB maximum.
Line inputs: unbalanced, 10kOhm, Cinch gain range 40dB.
Phono inputs: unbalanced, 47kOhm, 1-10 mV.
2 Track return: -10dBv at 10kOhm.
Aux return: -10dBv at 10kOhm.
Outputs
Left/Right/Monitor/Aux: +4dBu (1.55volt) at 47 Ohm.
Left/Right/Monitor/Aux: +4dBu (1.55volt) at 47 Ohm.
Tape output: -10dBv at 1kOhm.
Headphone: 400-600 Ohm, 500mW.
High: +/- 12 dB at 12kHz shelving curve.
Mid: +/- 12 dB at 1 kHz bell curve.
Low: +/- 12 dB at 60 Hz bell curve.
Overall
Frequency response 10-60.000 Hz (+/- 0.5dB).
Frequency response 10-60.000 Hz (+/- 0.5dB).
Distortion: <0.009% max at 1 kHz.
Dimensions: 483x356x95 mm ( 8HE ) .
Weight: 9 kg
