Pioneer DJM-800
4-channel high-end digital mixer.
Loaded with an amazing array of features and jawdropping effects, the DJM-800 gives you freedom of creativity and digital control at your fingertips.
The DJM-800 is a powerful 4 channel 96kHz / 24 bit digital mixer that’s complemented by 61 assignable MIDI control channels. It features ‘Harmonic Mixing’, a landmark innovation that detects a track’s key and automatically aligns it to the closest true key, removing inaccuracies created when adjusting the pitch.
The DJM-800 displays a wide variety of effects, such as ‘filter’, ‘sweep’ and ‘crush’ effects through a highpass/lowpass filter, notch filter and bit crusher effect for all line channels.
The effects automatically detect the BPM of the music and sync to the beats. In conjunction with the additional Digital Beat Effects, 50 combinations of effects are possible.
The DJM-800 has a high rigid chassis for minimizing unnecessary vibration that could adversely affect sound quality. It also incorporates a dual-shield structure for eliminating entry of digital noise and a high performance power supply.
Kirjeldus
MIDI Control: Full assignable MIDI controls
S/N Ratio Line: 105 dB
S/N Ratio Phono: 88 dB
S/N Ratio Mic: 84 dB
Crosstalk Line: 82 dB
Distortion: < 0.005 %
Master
Master Balance: Yes
Stereo/Mono Switch: Yes
Level Meter Size: 15 segment
Master Out Attenuator: Yes
Channels
EQ/ISO: 3 band
EQ/ISO Range: –26 dB ~ +6 dB
Rotary Faders: Optional
Level Meter Type: Individual
Level Meter Size: 15 segment
Performance Control
Channels: 4
Sound Color FX: Crush, Filter, Harmonic, Sweep
Beat FX:
Chorus
Delay
Echo
Filter
Flanger
Pan
Phaser
Reverb
Reverse Delay
Reverse Roll
Robot
Roll
Trans
Effect Sampler
Auto BPM Counter: Yes
Effect Level & Depth Volume: Yes
MIDI Global Clock: Yes
Roll Sampler (Fwd): Yes
Roll Sampler (Reverse): Yes
Sound Processor: 32
Crossfader
Crossfader Type: Carbon Rail
CURVE Assignable. Yes
Field Replaceable. Yes
Mic
Mic Connection
Jack
Neutrik Combo
Mic EQ: 2 band
Mic EQ Range: -6 dB ~ +6 dB
Talkover. 3 Position Switch
Talkover Attenuator. Yes
MIDI Info
Assignable Controls: 61
MIDI Out (DIN). 1 (5P DIN)
MIDI Start/Stop: Yes

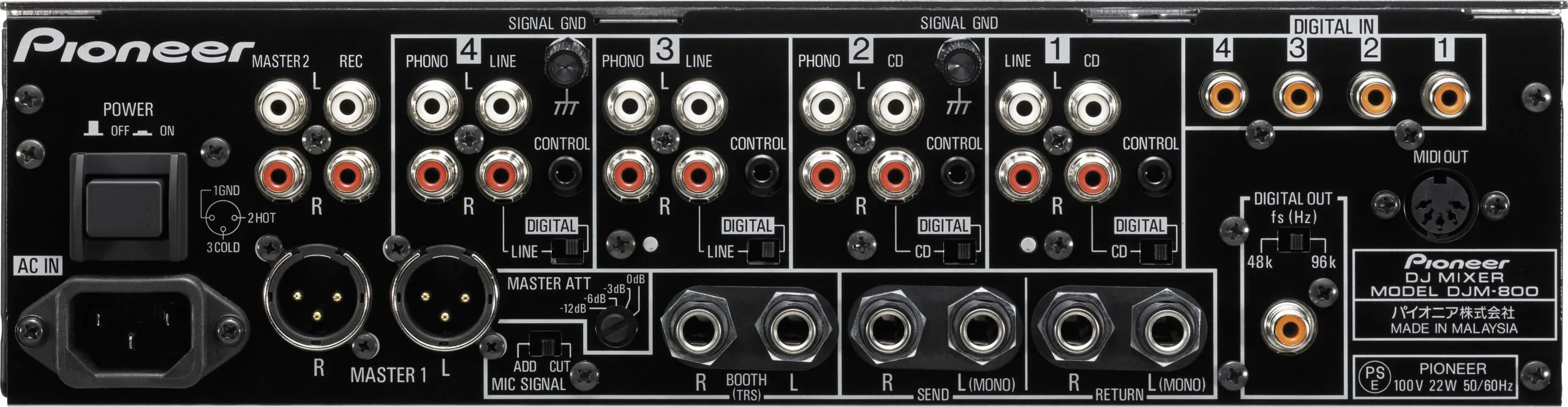

Terminals
Inputs:
1 MIC (1/4 inch Jack)
1 MIC (XLR)
1 RETURN (1/4 inch Jack)
3 PHONO (RCA)
4 S/PDIF Digital (RCA)
5 CD/LINE (RCA)
Outputs:
1 BOOTH (1/4 inch Jack)
1 MASTER (RCA)
1 MASTER (XLR)
1 REC OUT (RCA)
1 S/PDIF Digital (RCA)
1 SEND (1/4 inch Jack)
Lisainfo
Kaal | 8 kg |
---|---|
Mõõtmed | 32 × 38.1 × 10.8 cm |
