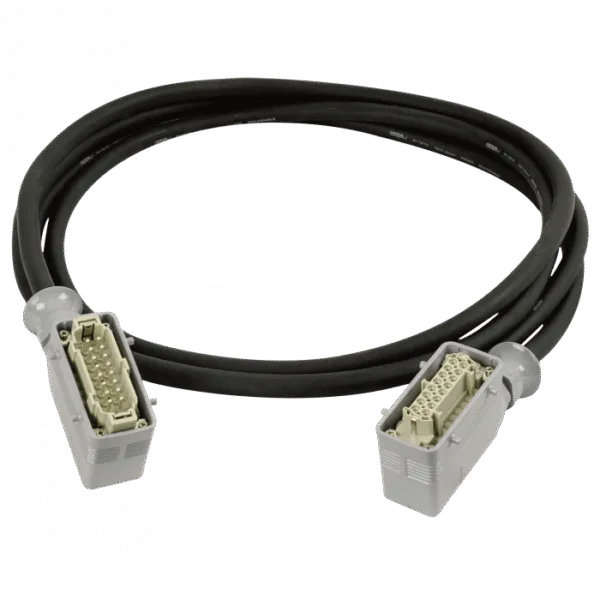

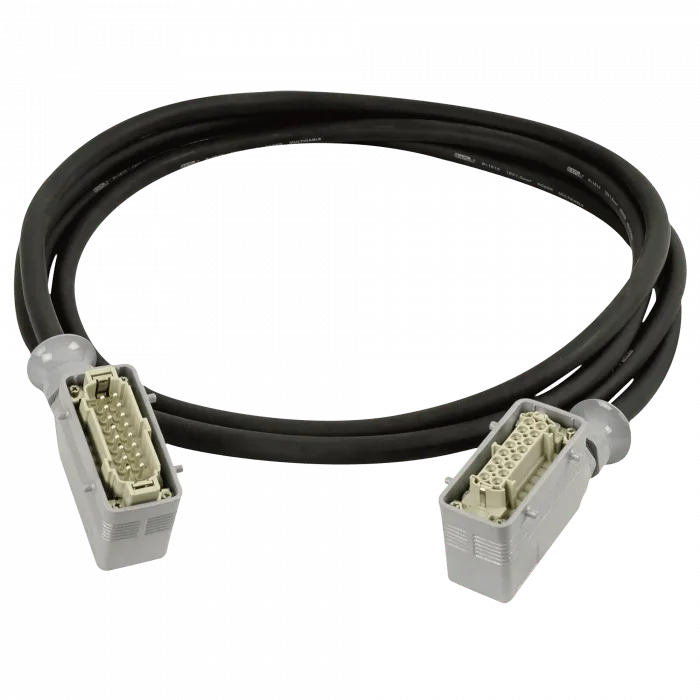

DAP Power Multicable 16 Pin Male-Female, 16 x 1.5 mm² 5m

Kirjeldus

Electrical Specifications and Connections
Rated Current (A): 16 A
Connector 1: CSHF16
Connector 2: CSHM16
Brand Connector 1: ILME
Cable Length: 5 m
Pins: 16
Conductor Resistance: 12 Ω/km
Wire Connection: 1.5 mm²
Maximum Wire Size AWG: 16 AWG
Outer Cable Diameter: 16.01 mm
Outer Isolation Diameter: 2.5 mm
Outer Isolation Type: PVC
Mechanical Specifications
Weight: 2.85 kg
IP Rating: IP65
Material: Copper
Colour: Black
Product Properties
Conductors: 18
Thermal Specifications
Maximum Ambient Temperature: 125 °C
Minimum Ambient Temperature: -40 °C
