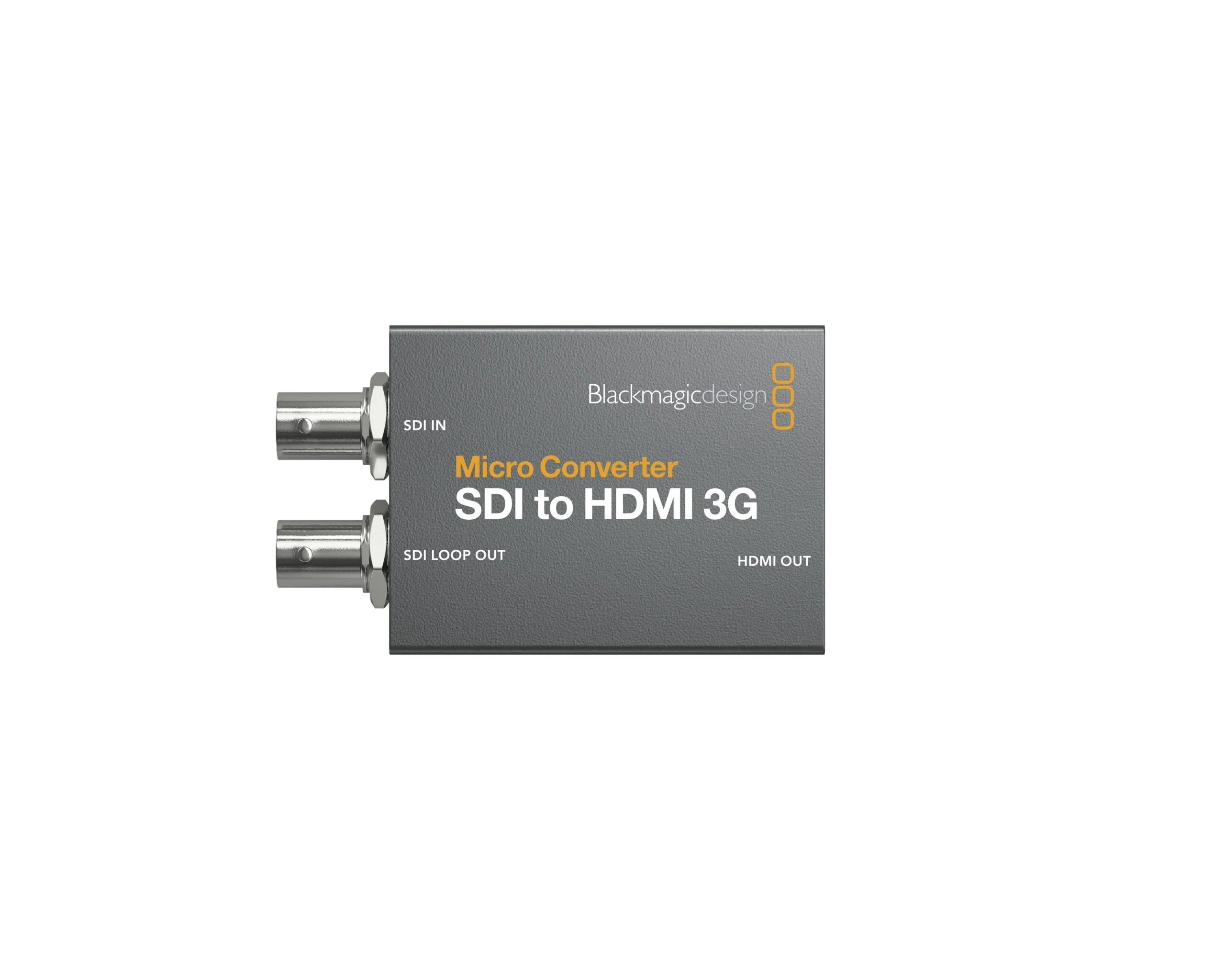

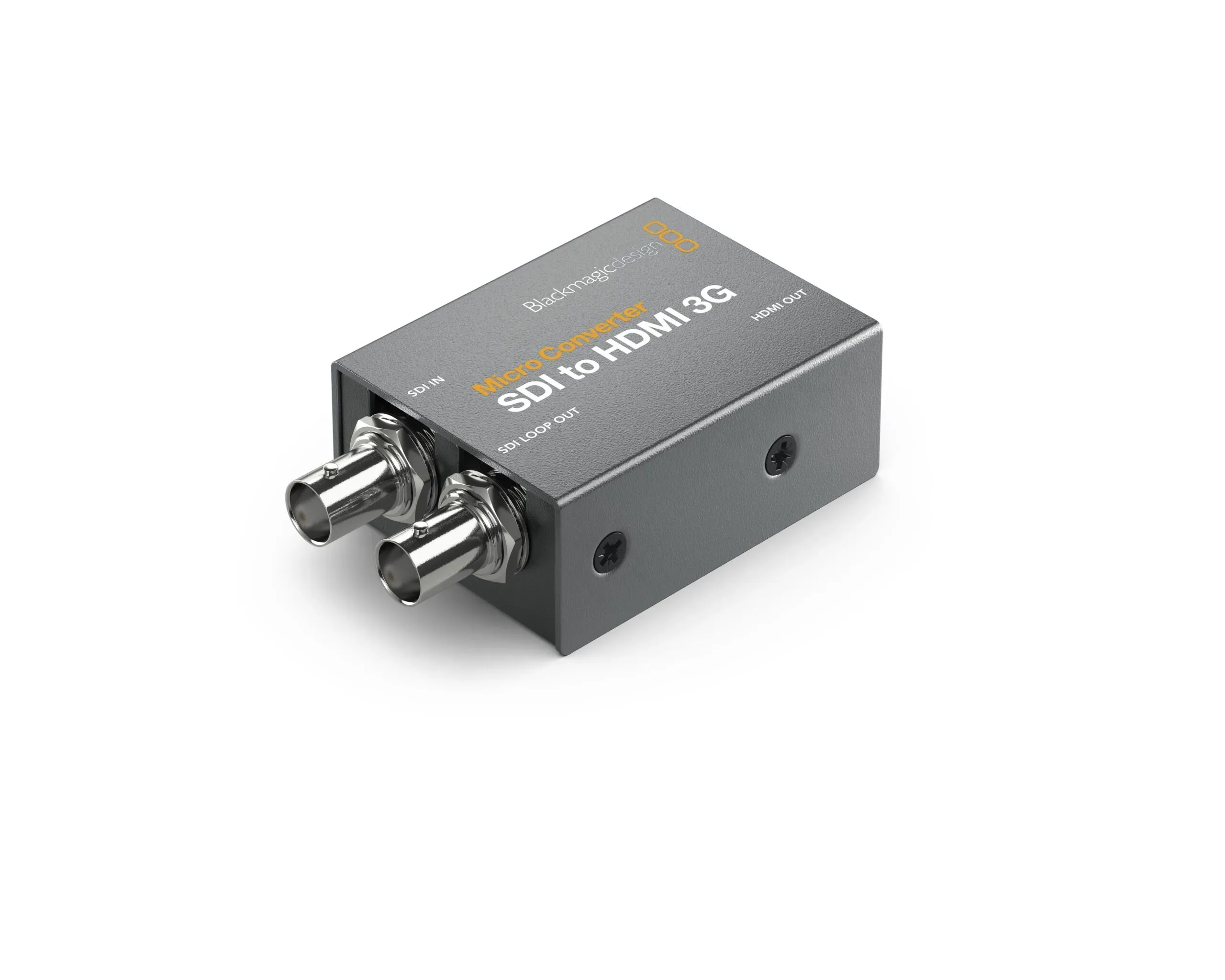

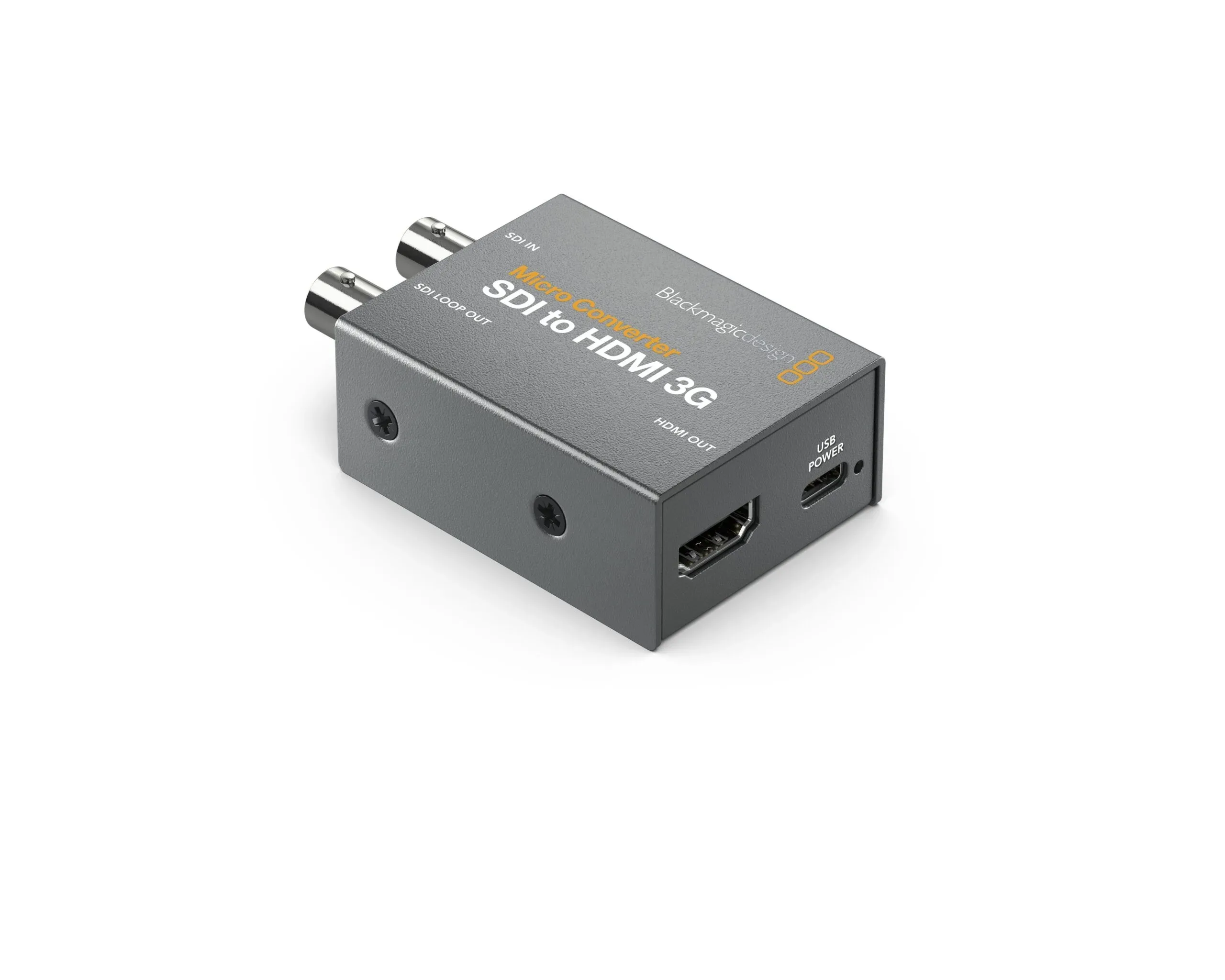

Blackmagic Design Micro Converter SDI to HDMI 3G
This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48.
Kirjeldus
Connections
SDI Video Inputs: 1 x SD, HD or 3G-SDI.
SDI Video Outputs: 1 x SDI loop out.
HDMI Outputs: HDMI Type A out.
Multi Rate Support: Auto detection of SD or HD.
Updates, Configurations and Power: USB Type‑C.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards:
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates: SDI video connections are switchable between standard definition, 720p 1080i, 1080p and DCI high definition.
SDI Color Precision: 4:2:2
SDI Color Space: YUV
SDI Auto Switching: Automatically detects SD, HD and level A or B for 3G‑SDI.
HDMI Video Standards:
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision: 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
HDMI Color Space: YUV
Software
Software Control: Mac™ and Windows™ software upgrade via USB.
Internal Software Upgrade: Via USB.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control: Via software utility.
Power Requirements
Power Consumption: 1.6 W
Operational Voltage Range: 4.4V to 5.25V DC
Environmental Specifications
Operating temperature: 0° to 40° C (32° to 104° F)
Storage temperature: -20° to 60° C (-4° to 140° F)
Relative Humidity: 0% to 90% non-condensing
