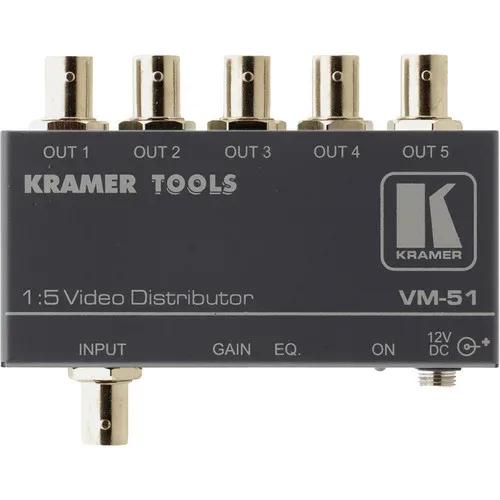

Kramer VM-51 1X5 Video Distribution Amplifier
Kramer VM-51 1X5 Video Distribution Amplifier – Composite Video, Compact Size, Gain and EQ.
The Comprehensive VM-51 is a 1×5 Video Distribution Amplifier; it accepts 1 composite video signal and outputs five identical composite signals. This unit offers adjustable outputs and a compact size.
High Bandwidth
A bandwidth of 420 Mhz allow this device to pass high resolution analog signals and SDI digital signals.
Gain and EQ Adjust
Adjustment for cable length can be accessed on front panel trimmers.
Kirjeldus
Interfaces
Inputs:1 x BNC (Composite)
Outputs: 5x BNC (Composite)
Transmission
Bandwidth: 420 MHz
Differential Gain: 0.05%
Differential Phase: 0.07°
Signal-to-Noise Ratio: 73 dB
Power
Power Consumption: Power Supply: 12 VDC
General
Dimensions: 9.9 x 4.7 x 2.4 cm
Weight: 0.2 kg
Inputs:1 x BNC (Composite)
Outputs: 5x BNC (Composite)
Transmission
Bandwidth: 420 MHz
Differential Gain: 0.05%
Differential Phase: 0.07°
Signal-to-Noise Ratio: 73 dB
Power
Power Consumption: Power Supply: 12 VDC
General
Dimensions: 9.9 x 4.7 x 2.4 cm
Weight: 0.2 kg
