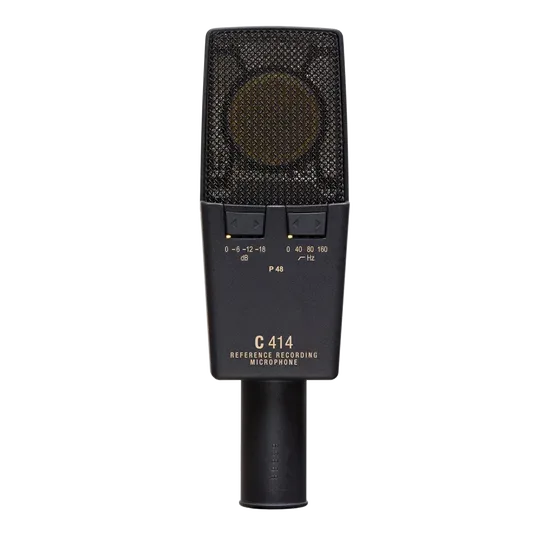

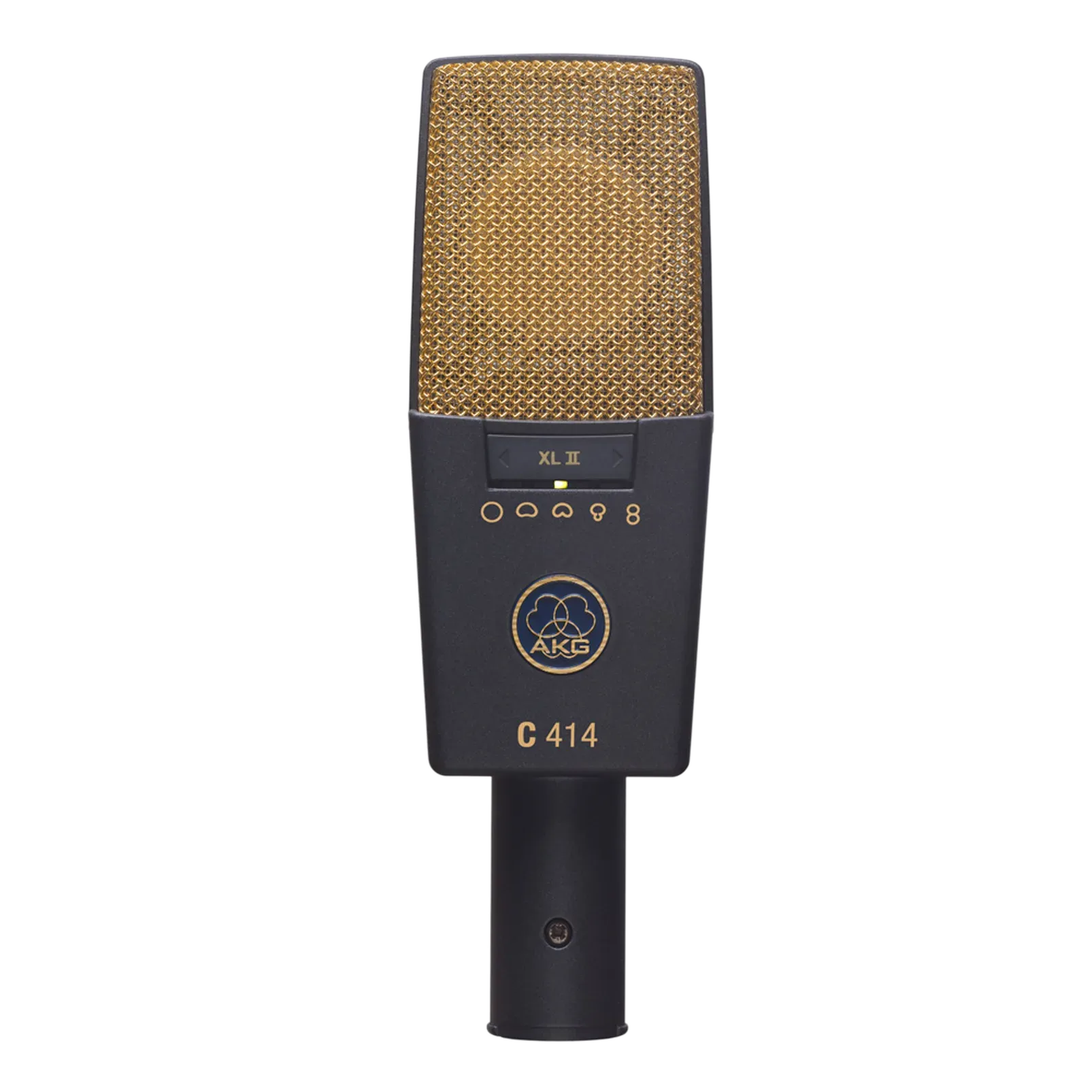

AKG C414 XL II
The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII’s slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.
Kirjeldus
Type: 1-inch large diaphragm pressure gradient microphone
Palar patterns: 9, selectable
Open-circuit sensitivity: 23 mV/Pa (-33 dBV ± 0.5 dB)
Frequency range: 20 to 20,000 Hz (see frequency response graphs)
Impedance: ≤ 200 ohms
Recommended load impedance: ≥2200 ohms
Bass cut filter slope: 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
Preattenuation Pads: -6 dB, -12 dB, -18 dB (selectable)
Equivalent noise level to IEC 60268-4: 20 dB (0 dB preattenuation)
Equivalent noise level to IEC 60268-4
(A-weighted):
6 dB(A) (0 dB preattenuation)
Signal/noise ratio re 1 Pa (A-weighted): 88 dB
Max. SPL for 0.5% THD: 200/400/800/1600 Pa
140/146/152/158 dB SPL
(0/-6/-12/-18 dB preattenuation)
Dynamic range (A-weighted): 134 dB min.
Max. output level (A-weighted): 5 V rms (+14 dBV) (+14 dBV)
Environment: temperature: -10°C to +60°C
R. H.: 95% (+20°C), 85% (+60°C)
Powering: 48 V phantom power to IEC 61938
Current consumption: approx. 4.5 mA
Connector: IEC standard 3-pin XLR
Lisainfo
| Kaal | 0.3 kg |
|---|---|
| Mõõtmed | 3.8 × 5 × 16 cm |
