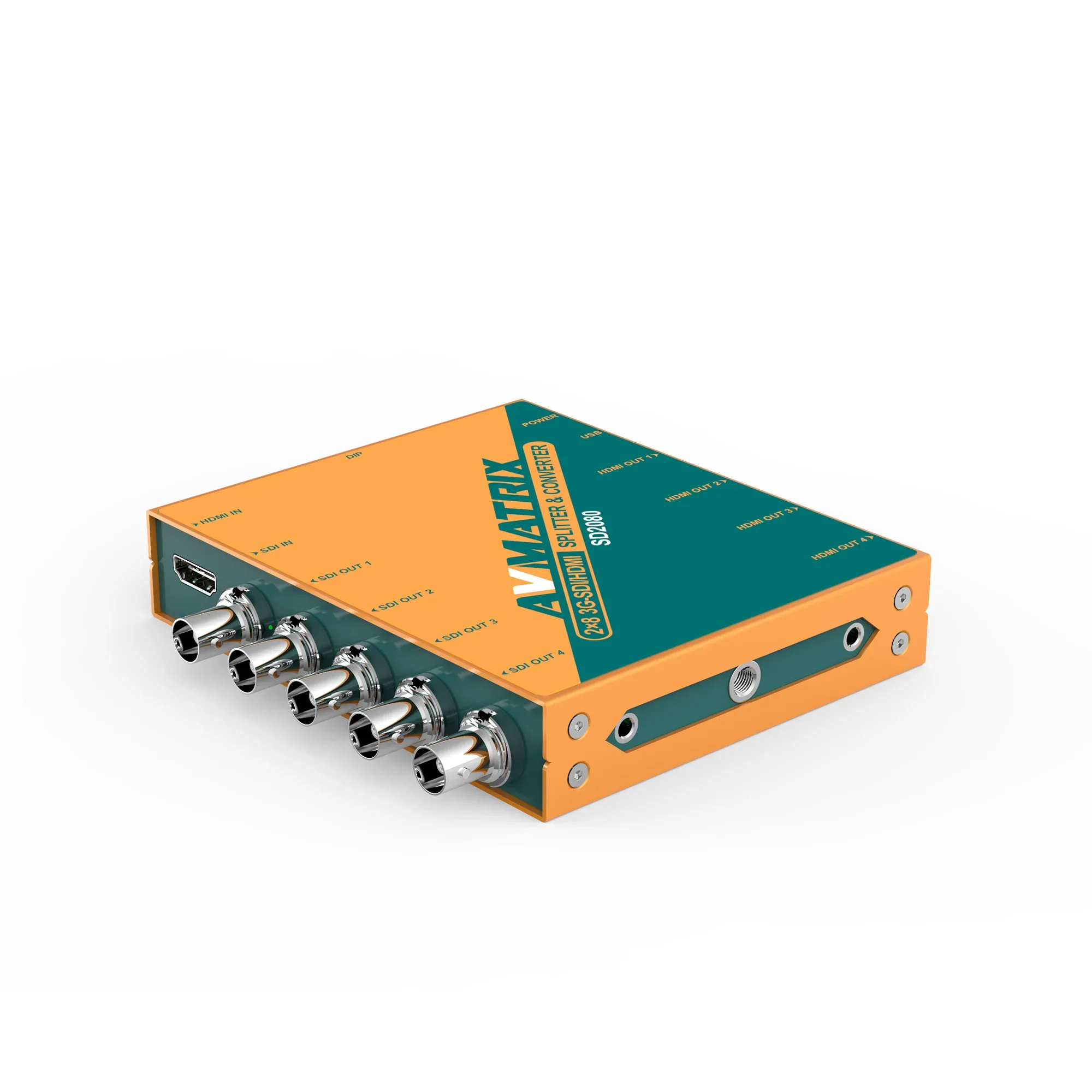

4xSDI / 4xHDMI Splitter / konverter
SDI/HDMI konverter / jagaja, mis jagab pildi samaaegselt 4 x SDI ja 4 x HDMI väljundi vahel.
Kirjeldus
Inputs
HDMI Video Input HDMI Type A x1
SDI Video Input SD/HD/3G-SDI x1
Outputs
HDMI Video Output HDMI Type A x4
SDI Video Output SD/HD/3G-SDI x4
Format
SDI Input Format Support 1080p 60/59.94/50
1080p 30/29.97/25/24/23.98
1080psf 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25
625i 50, 525i 59.94
SDI Video Rate
SD/HD/3G-SDI
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 424M
SDI Color Space and Precision
YUV 4:2:2
SDI Output Format Support
1080p 60/59.94/50
1080p 30/29.97/25/24/23.98/23.976
1080i 60/59.94/50
720p 60/59.94/50
625i 50
525i 59.94
HDMI Input Format Support
1080p 60/59.94/50
1080p 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25
576i 50, 480i 59.94
HDMI Color Space and Precision
RGB 4:4:4, YUV 4:2:2, YUV 4:4:4
Lisainfo
| Kaal | 0.485 kg |
|---|---|
| Mõõtmed | 125.4 × 104 × 24.5 cm |
