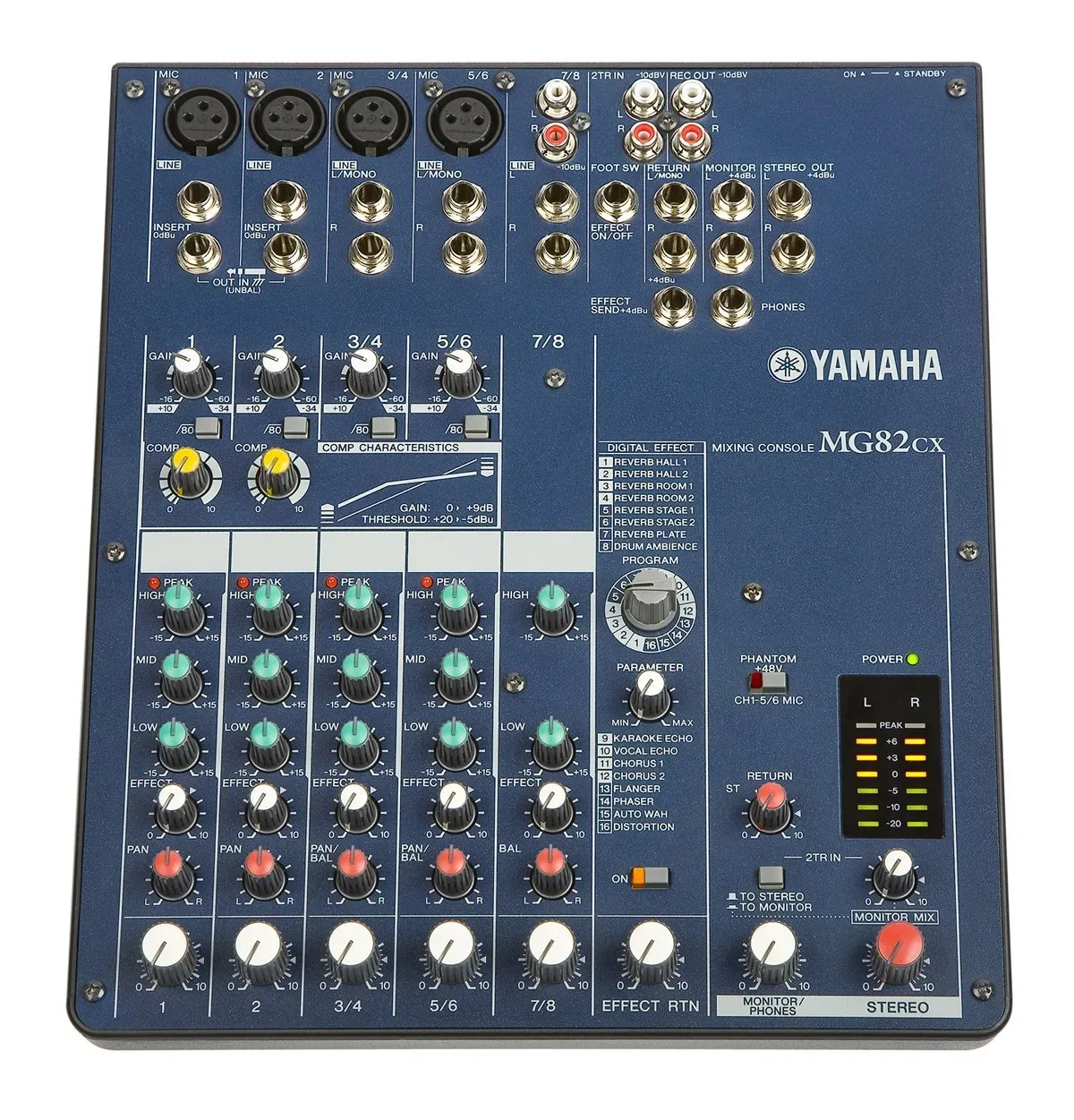

Yamaha MG82CX
MG mixers are lighter and smaller than ever while offering some innovative new features. The MG82CX is an ideal mixer for basic music production or live sound applications that require high sound quality from a relatively small number of input sources. The MG82CX is remarkably compact and lightweight, but no compromises have been made in sound quality. They even have built-in channel compressors that, although easy to operate, can significantly enhance the quality of your mixes. An optional adaptor allows these mixers to be mounted on a microphone stand for easy access and convenient positioning on stage. The MG82CX features top-quality SPX digital effects built in, so you won’t need any extra equipment for many applications.
Kirjeldus
| Mixing capability | Mixing channels | 2 Mono + 3 Stereo | ||
|---|---|---|---|---|
| AUX | 1 (Effect send) | |||
| MAIN | Stereo | |||
| Input channel functions | CH1-2: HPF, Compressor, 3-band PEQ, Intert I/O; CH3-6: HPF, 3-band PEQ; CH7-8: 2-band PEQ | |||
| On-board processors | SPX | |||
| GROUP | – | |||
| I/O | Mic inputs | 4 | ||
| Phantom power | +48V DC; ON/OFF | |||
| Line inputs | 3x Stereo, Return, 2tr in | |||
| Control and others | Foot switch | |||
| Total harmonic distortion | Less than 0.1% | |||
| Frequency response | 0, +1.0, -3dB 20Hz-20kHz | |||
| Hum & noise level | Equivalent input noise | -128dBu | ||
| Residual output noise | -100dBu | |||
| Crosstalk | -70dB | |||
| Power requirements | Use PA-10 AC Adaptor (AC38VCT, 0.62A); Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz | |||
| Power consumption | 21W | |||
| Dimensions | W | 256.6mm | ||
| H | 62.2mm | |||
| D | 302.5mm | |||
| Net weight | 1.6kg | |||
| Accessories | Owner’s Manual, AC adaptor | |||
