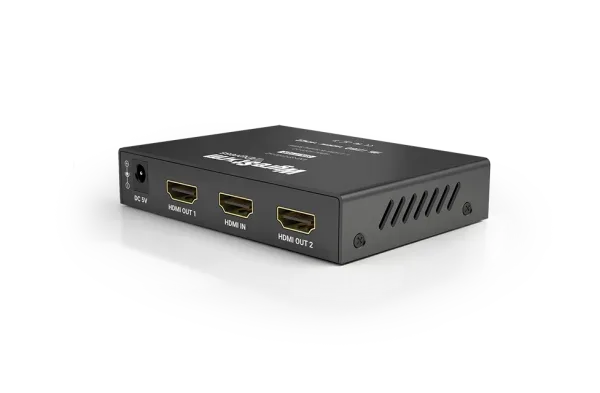

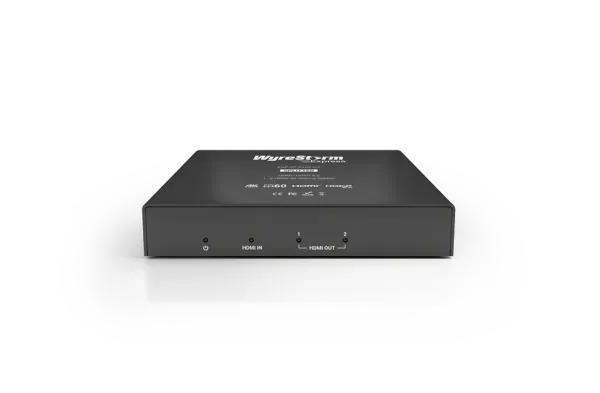

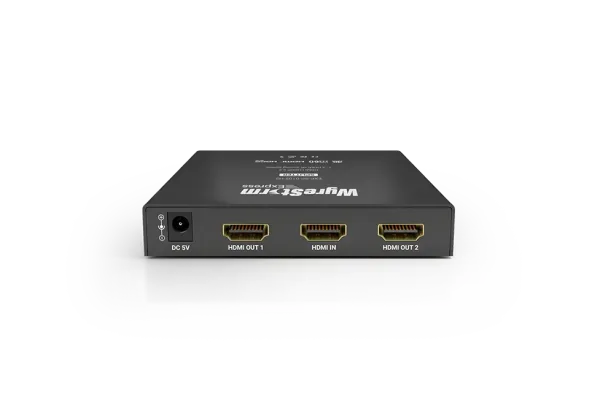

WyreStorm Essentials™ 4K60 1:2 Scaling HDMI Splitter
The latest addition to the WyreStorm Essentials splitter range, the EXP-SP-0102-H2 now offers H2 features and the same value and reliability found in its predecessor, not to mention a few new tricks up its sleeve! Upgrades to support of the full 18Gbps bandwidth HDMI 2.0 offers; 2160p@60Hz 4:4:4 and support for Dolby Vision™ included. As if that wasn’t enough, the EXP-SP-0102-H2 is now featuring a powerful built-in scaler, allowing users to simultaneously connect a mix of 4K and 1080p displays, which gives the source range to play to its fullest potential.
Kirjeldus
AUDIO & VIDEO
Inputs 1x HDMI In 19-pin HDMI type A
Outputs 2x HDMI Out 19-pin HDMI type A
Audio Formats 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Video Resolution (Max)
1920x1080p @60Hz 12bit
1920x1080p @60Hz 16bit
3840x2160p @24Hz 10bit 4:2:0 HDR
3940x2160p @30Hz 8bit 4:4:4
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:2:0
4096x2160p @60Hz 8bit 4:4:4
Supported Standards DCI | RGB |HDR | HDR10 | Dolby Vision up 30Hz | HLG | BT.2020
Maximum Pixel Clock 600Mhz
COMMUNICATION & CONTROL
HDMI HDCP 2.2 | EDID | DVI-D supported with adapter (not included)
POWER
Power Supply 5V DC 1A
Max Power Consumption 1.8W
