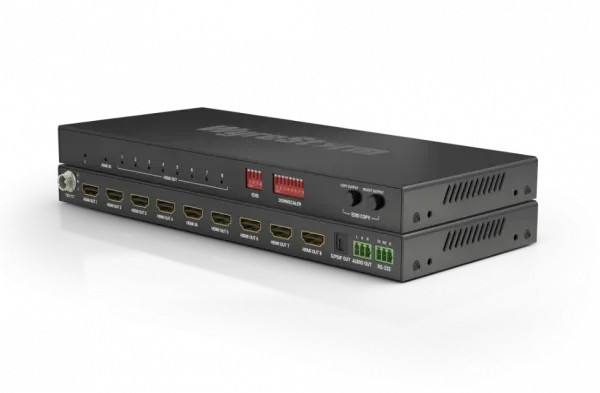

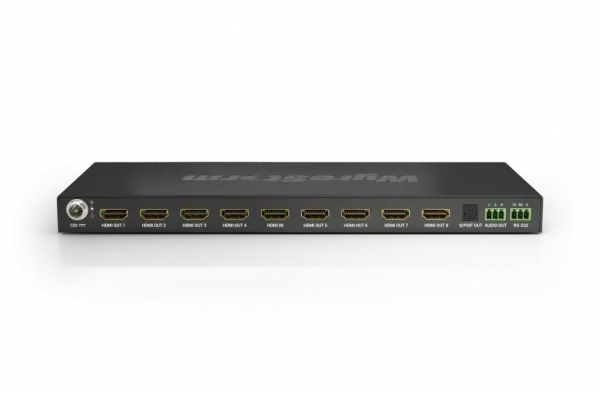

Wyrestorm 4K HDR 1:8 Splitter with Scaling Outputs
The SP-0108-SCL is a small and compact, yet powerful HDMI splitter that can be used in many applications, from digital signage, education, to retail or hospitality. Each HDMI output of the SP-0108-SCL features a 4K to 1080p down scaler, allowing for mixed resolution displays to be used simultaneously without suffering from compatibility limitations. An analog and digital S/PDIF audio de-embed allows easy connection for external amplifiers or DSPs.
Kirjeldus
Audio and video
Inputs 1x HDMI: 19-Pin Type A
Outputs 8x HDMI Out: 19-pin type A | 1x 3-pin Phoenix | S/PDIF
Video Encoding Uncompressed: 18Gbps
End to End Latency: None
Audio Formats 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Video Resolution (Max):
1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:2 HDR10/10+
3840x2160p @60Hz 12bit 4:2:0 Dolby Vision
3840x2160p @50Hz 10bit 4:2:0 HLG
4096x2160p @60Hz 8bit 4:4:4
Supported Standards DCI | RGB | HDR10 | HDR 10+ | Dolby Vision | HLG | BT.2020
Maximum Pixel Clock: 600Mhz
Communication and control
HDMI HDCP 2.2 | EDID
RS-232 1x 3-pin Phoenix connection
Power
Power Supply 12V DC 1A
Max Power Consumption 6,73W
