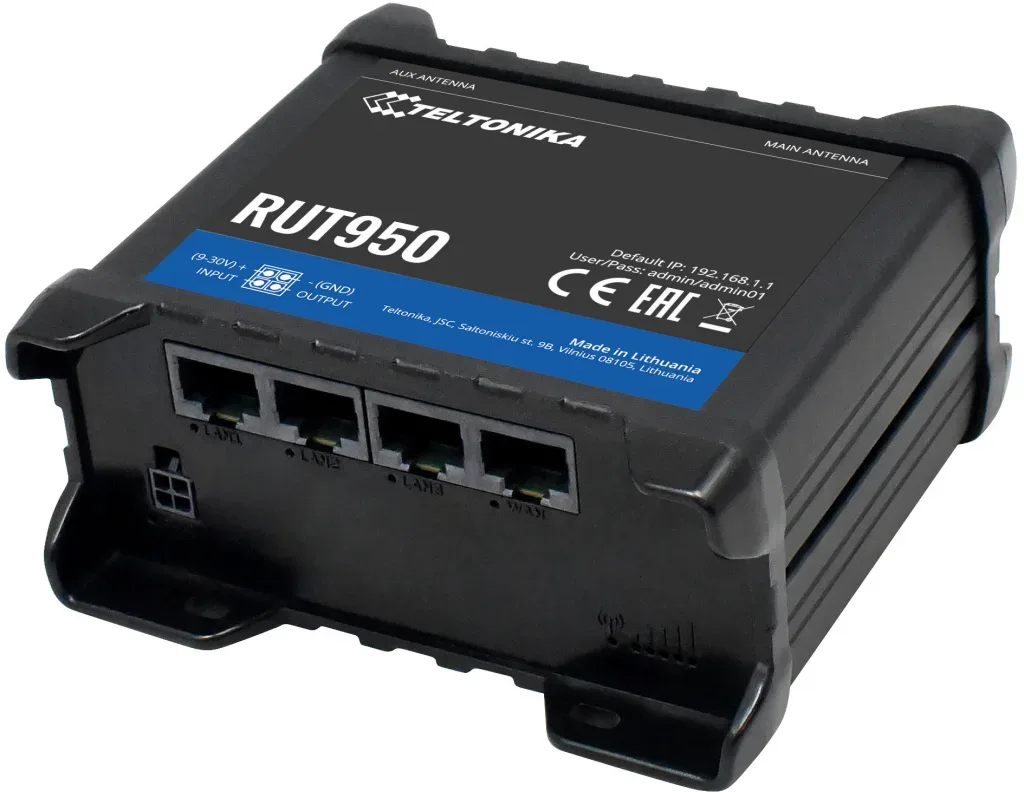

Teltonika RUT950 Industrial cellular router

Kirjeldus

• Mobile module
  4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
• 3GPP Release
  Release 10/11 depending on the hardware version
• SIM switch
  2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status
  IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
• SMS
  SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD
  Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list
  Operator black/white list (by country or separate operators)
• Multiple PDN
  Possibility to use different PDNs for multiple network access and services
• Band management
  Band lock, Used band status display
• APN
  Auto APN
• Bridge
  Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough
  Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode
  802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
• Wi-Fi security
  WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect
• SSID/ESSID
  SSID stealth mode and access control based on MAC address
• Wi-Fi users
  Up to 100 simultaneous connections
• Wireless MAC filter
  Whitelist, blacklist
• Wireless QR code generator
  Once scanned, a user will automatically enter your network without needing to input login information.
• Wireless Connectivity Features
  Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Network

• Hotspot
  Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• Routing
  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols
  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support
  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring
  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall
  Port forward, traffic rules, custom rules
• Firewall status page
  View all your Firewall statistics, rules, and rule counters
• Ports management
  View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology
  Visual representation of your network, showing which devices are connected to which other devices
• Hotspot
  Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• DHCP
  Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
• QoS / Smart Queue Management (SQM)
  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS
  Supported >25 service providers, others can be configured manually
• Network backup
  Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing
  Balance Internet traffic over multiple WAN connections
• SSHFS
  Possibility to mount remote file system via SSH protocol

Ethernet

• WAN1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
• LAN
  3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

VPN

• OpenVPN
  Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption
  DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec
  IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE
  GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP
  Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel
  Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN
  Method of building scalable IPsec VPNs
• SSTP
  SSTP client instance support
• ZeroTier
  ZeroTier VPN client support
• WireGuard
  WireGuard VPN client and server support
• Tinc
  Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.

MODBUS TCP SLAVE

• ID range
  Respond to one ID in range [1;255] or any
• Allow Remote Access
  Allow access through WAN
• Custom registers

• Mobile module
  4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
• 3GPP Release
  Release 10/11 depending on the hardware version
• SIM switch
  2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status
  IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
• SMS
  SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD
  Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list
  Operator black/white list (by country or separate operators)
• Multiple PDN
  Possibility to use different PDNs for multiple network access and services
• Band management
  Band lock, Used band status display
• APN
  Auto APN
• Bridge
  Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough
  Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode
  802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
• Wi-Fi security
  WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect
• SSID/ESSID
  SSID stealth mode and access control based on MAC address
• Wi-Fi users
  Up to 100 simultaneous connections
• Wireless MAC filter
  Whitelist, blacklist
• Wireless QR code generator
  Once scanned, a user will automatically enter your network without needing to input login information.
• Wireless Connectivity Features
  Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Network

• Hotspot
  Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• Routing
  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols
  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support
  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring
  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall
  Port forward, traffic rules, custom rules
• Firewall status page
  View all your Firewall statistics, rules, and rule counters
• Ports management
  View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology
  Visual representation of your network, showing which devices are connected to which other devices
• Hotspot
  Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• DHCP
  Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
• QoS / Smart Queue Management (SQM)
  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS
  Supported >25 service providers, others can be configured manually
• Network backup
  Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing
  Balance Internet traffic over multiple WAN connections
• SSHFS
  Possibility to mount remote file system via SSH protocol

Ethernet

• WAN
  1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
• LAN
  3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

VPN

• OpenVPN
  Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption
  DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
  BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

FIRMWARE CUSTOMISATION

• Operating system
  RutOS (OpenWrt based Linux OS)
• Supported languages
  Busybox shell, Lua, C, C++
• Development tools
  SDK package with build environment provided
• GPL customization
  You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Input / Output

• Input
  1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
• Output
  1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events
  Email, RMS, SMS
• I/O juggler
  Allows to set certain I/O conditions to initiate event

Power

• Connector
  4-pin industrial DC power socket
• Input voltage range
  9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• PoE (passive)
  Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
• Power consumption
  < 2 W idle, < 7 W Max
  Physical Interfaces

• Ethernet
  4 x RJ45 ports, 10/100 Mbps
• I/O’s
  1 x Digital Input, 1 x Digital Output on 4-pin power connector (available from HW revision 1600)
• Status LEDs
  1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
• SIM
  2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
• Power
  1 x 4-pin power connector
• Antennas
  2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors
• Reset
  Reboot/User default reset/Factory reset button

Physical Specification

• Casing material
  Aluminium housing, plastic panels
• Dimensions (W x H x D) 110 x 50 x 100 mm
• Weight 280 g
• Mounting options
  DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature
  -40 °C to 75 °C
• Operating humidity
  10% to 90% non-condensing
• Ingress Protection Rating
  IP30

Regulatory & Type Approvals

• Regulatory
  CE/RED, FCC, IC, PTCRB, RCM, EAC, RoHS, WEEE, IP rating, Anatel, GCF, TRA approval, REACH, DNV GL, Declaration of Software Security, Thailand NBTC, Ukraine UCRF, WiFi Certified, SDPPI (POSTEL)
• Operator
  AT&T, Verizon

Input / Output

• Input
  1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
• Output
  1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events
  Email, RMS, SMS
• I/O juggler
  Allows to set certain I/O conditions to initiate event

Power

• Connector
  4-pin industrial DC power socket
• Input voltage range
  9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• PoE (passive)
  Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
• Power consumption
  < 2 W idle, < 7 W Max
