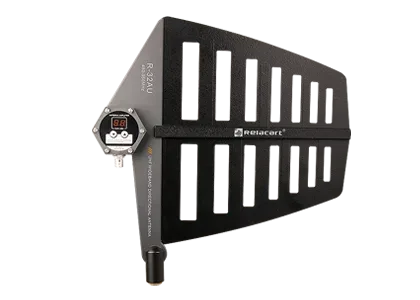

Suundantenn – 480MHz-950MHz

The R-32AU’s reliable performance and resistance to wear and tear provide the best possible reception within the required coverage. The gain setting is used for enhanced amplification of signal reception. The R-32AU can be mounted on a mic stand, suspended from the ceiling, or attached to the wall using an integrated rotatable stand.

Kogus *

Tootekood: R-32AU Kategooriad: ,

Kirjeldus

  • Antenna frequency range：480MHz-950 MHz
  • Amplifier frequency range：480MHz-950 MHZ
  • Antenna directionality：Cardioid
  • Antenna polarization mode：line
  • Antenna gain：≥6.5dB
  • Antenna standing wave ration： <2
  • Amplifier gain：0 to15dB
  • Amplifier low noise：<0.45dB
  • Amplifier OIP3：>38dBm
  • External power supply：6-12VDC
  • Current：75mA
  • Connector port：BNC female

Lisainfo

Kaal 0.715 kg
Mõõtmed 33.2 × 30.4 × 0.3 cm
