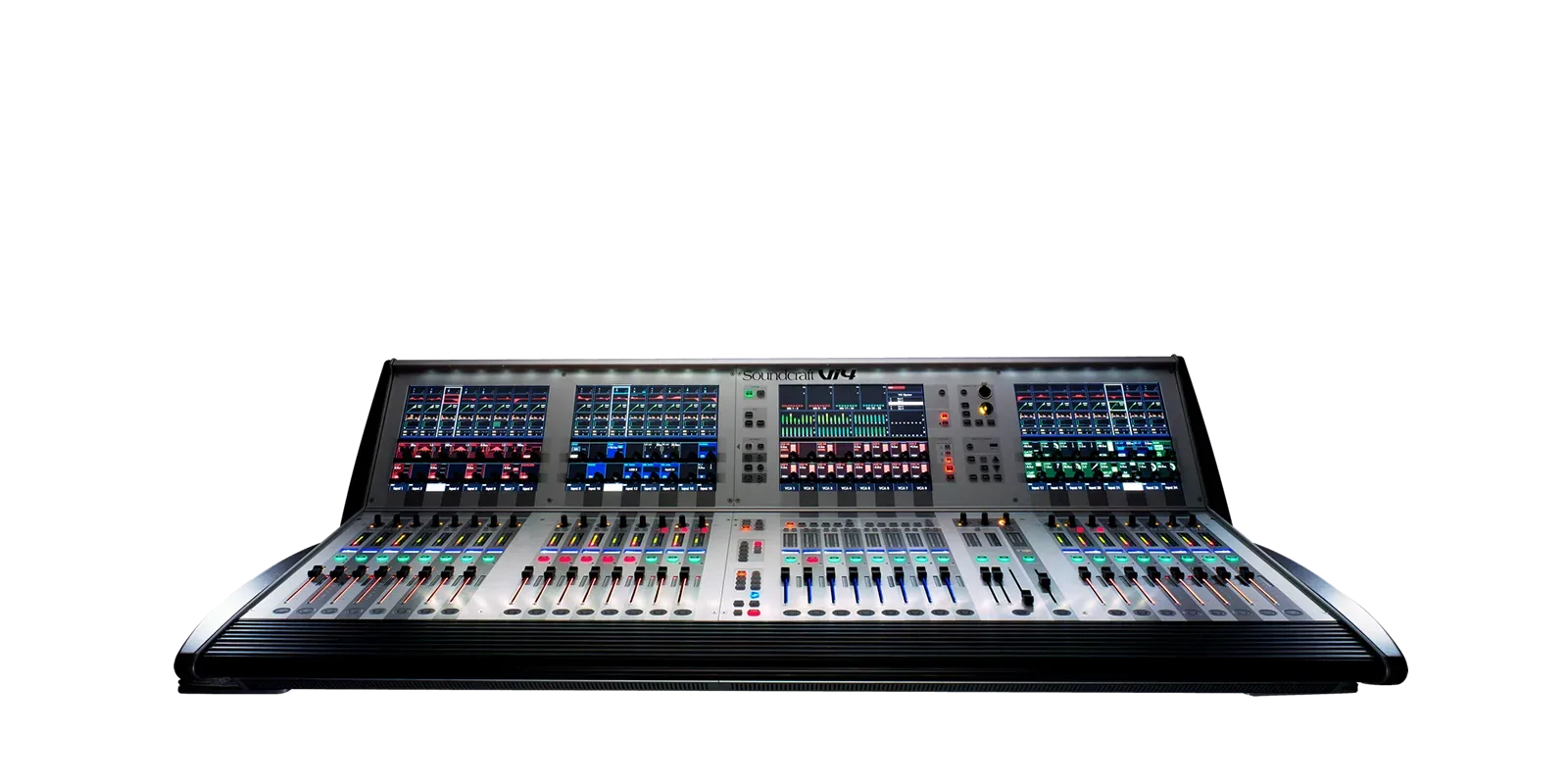

Soundcraft Vi4

Kirjeldus

Features
Audio Channels
Max number of simultaneous mixing channels: 96 mono inputs into 35 Outputs. Pairs of mono inputs can be linked to create stereo channels.
Insert points: 24 insert send/return pairs can be configured (using available I/O) and assigned to any of the 96 inputs or 35 output channels.
Direct Outputs: All 96 input channels can have direct outputs in addition to their internal bus routing, assuming sufficient I/O is available (eg optical MADI card).
Busses: 32 Grp/Aux/Matrix, plus main LCR Mix and LR Solo busses (maximum of 16 matrix outputs can be configured).
Connectivity

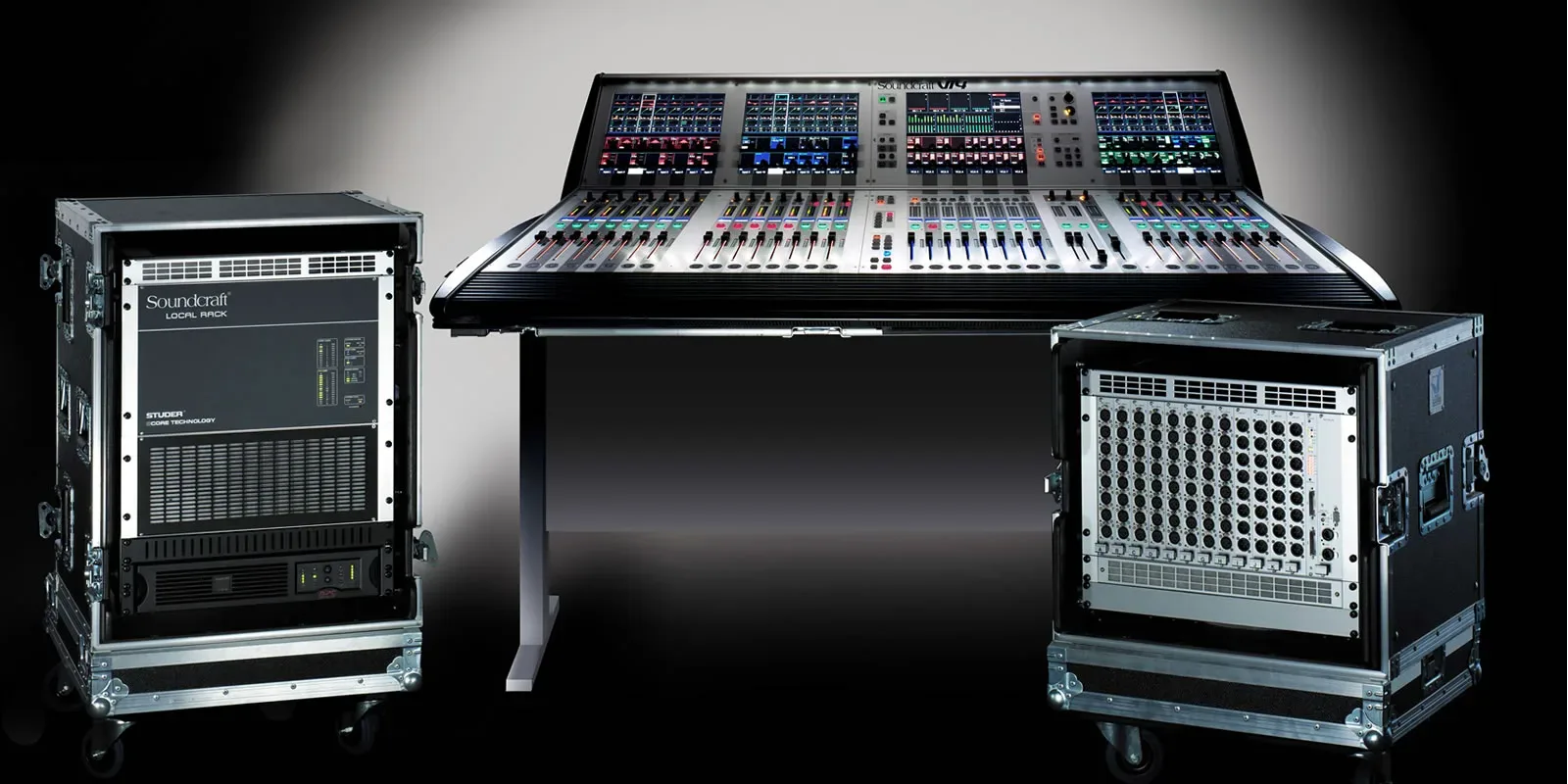

Connection from local rack to stagebox: Standard fit: Cat5 cable, with Amphenol RJF connectors. Optional: Fibre Optical interface card (additional cost).
Max distance, local rack to stagebox: 100m using Soundcraft-approved flexible reel-mounted Cat5 cable, 130m possible using Cat7 permanent installation cable.
GPIO facility: There are 16 GPIO contact closure inputs and outputs on the local rack, and 8 inputs and outputs on the stagebox.
MIDI: There is 1 MIDI In and 2 MIDI Outs on the rear of the control surface.
Offline Editor – Virtual Vi
To compliment the Soundcraft Vi4, an offline editor (Virtual Vi) is available. See below in Downloads section.
Miscellaneous

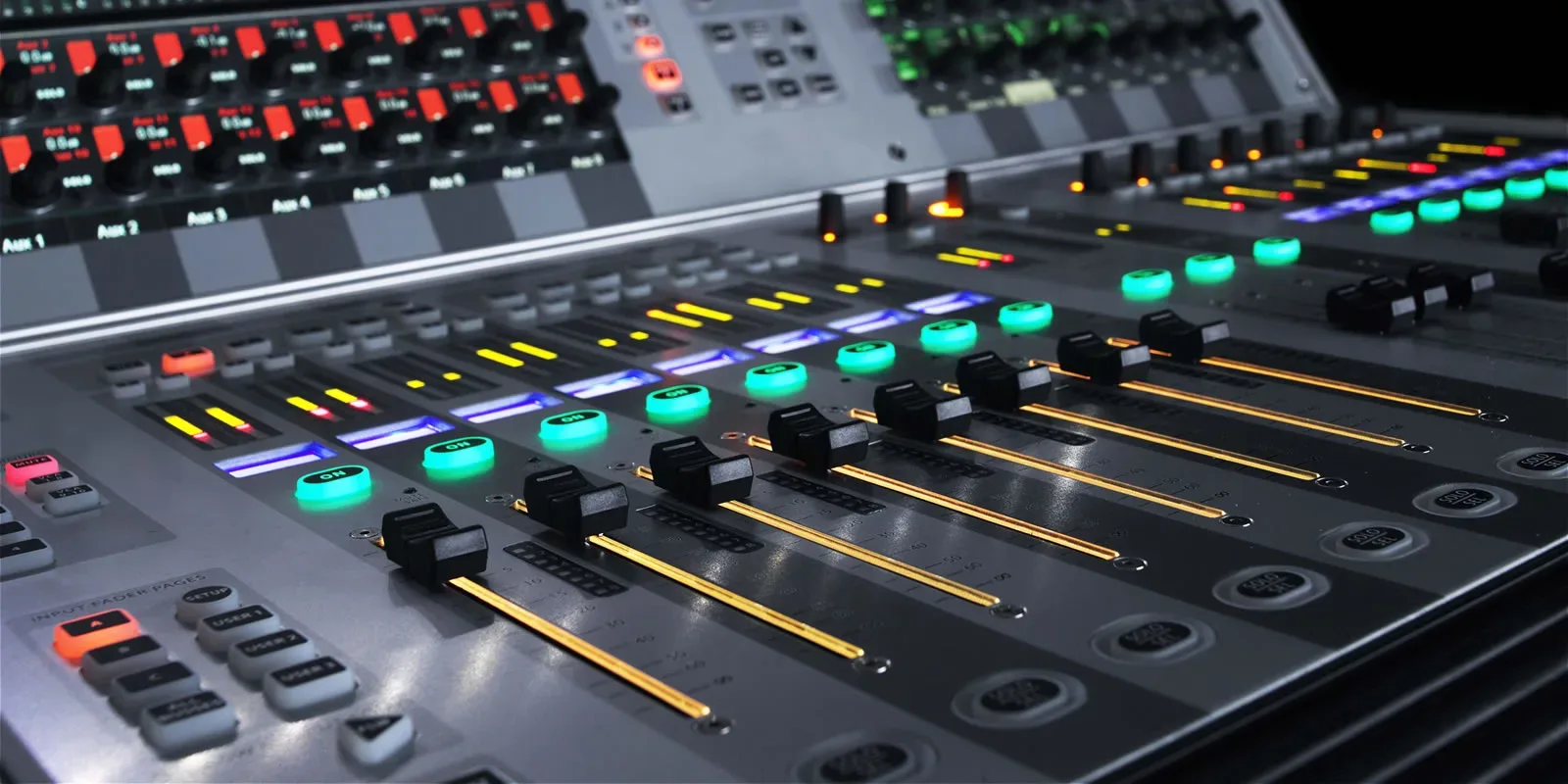

Controls for Mute Group (x 4) and VCA Group (x 16) assignment. Controls for assignment of Vistonics rows to bus sends (when channel parameters are not selected to Vistonics). Snapshot automation controls. Talkback controls. Controls for Monitor Output level, phones level and Solo Trim and blend level.
Frequency Response – Stagebox Mic input to Line output: +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out: +0/-0.2dB, 20Hz-20kHz
THD+Noise: 22Hz-22kHz
T.H.D. & Noise – Stagebox Mic In (min gain) to Local Line Out: <0.003% @ 1kHz
T.H.D. & Noise – Stagebox Mic In (max gain) to Local Line Out: <0.020% @ 1kHz
Local Line In to Line Out: <0.003% @ 1kHz
Mic Input E.I.N <-126dBu (150Ω source); 22Hz-22kHz bandwidth, unweighted
Residual Noise: -95dBu Stagebox line output; no inputs routed, Mix fader @0dB
CMRR: 80dB @ 1kHz -Stagebox Mic input
Sampling Frequency: 48kHz
Latency: Stagebox Mic Input to Local Line output: < 2ms @48kHz
AES/EBU Input Sample Rate: 32–108kHz (with SRC enabled)
DSP Resolution: 40-bit floating point
Internal Clock Accuracy: < +/- 50ppm
Internal Clock Jitter: < +/- 5ns
External Sync: BNC Wordclock, AES/EBU sync in, Video sync in
Input & Output Levels – Mic Inputs: +28dBu max
Input & Output Levels – Line Inputs: +22dBu max
Input & Output Levels – Line Outputs: +22dBu max
Input & Output Levels – Nominal Operating Level:+4dBu (-18dBFS)
Input & Output Impedances – Mic Inputs: 2k7Ω
Input & Output Impedances – All other analogue Inputs: >10kΩ
Input & Output Impedances – Line Outputs: <75Ω
Input & Output Impedances – AES/EBU Outputs: 110Ω
Oscillator: 20Hz to 20kHz/Pink/White Noise, variable level
Stagebox HP Filter: 80Hz fixed, 12dB per octave
Channel HP filter: 20Hz-600Hz, 18dB per octave
Channel LP filter: 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) – HF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) – Hi-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) – Lo-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) – LF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering: Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range: 90-264V, 47-63Hz, auto-ranging
Power
Mains Power Consumption – Control Surface: 140W (150W with redundant option)
Mains Power Consumption – Local Rack: 140W (150W with redundant option)
Mains Power Consumption – Stagebox: 140W (150W with redundant option)
Internal Mass Storage: 16GB SSD Hard Drive
Temperature/Humidity Range – Operating Temperature Range: 0°C – 45°C (32°F – 113°F)
Temperature/Humidity Range – Relative Humidity: 0% – 90%, non-condensing Ta=40°C (104°F)
Temperature/Humidity Range – Storage Temperature Range: -20°C – 60°C (-4°F – 140°F)
