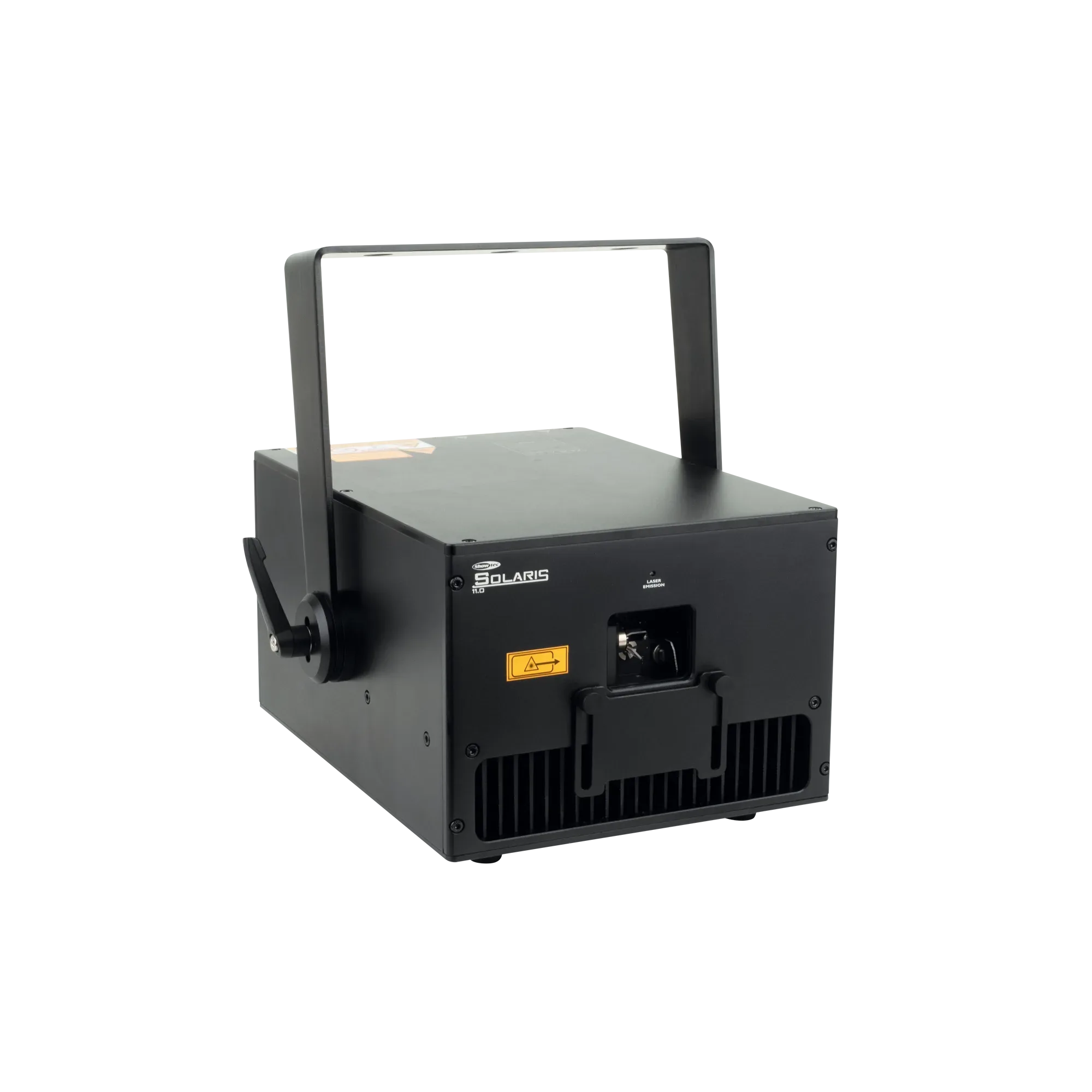

Showtec Solaris 11.0

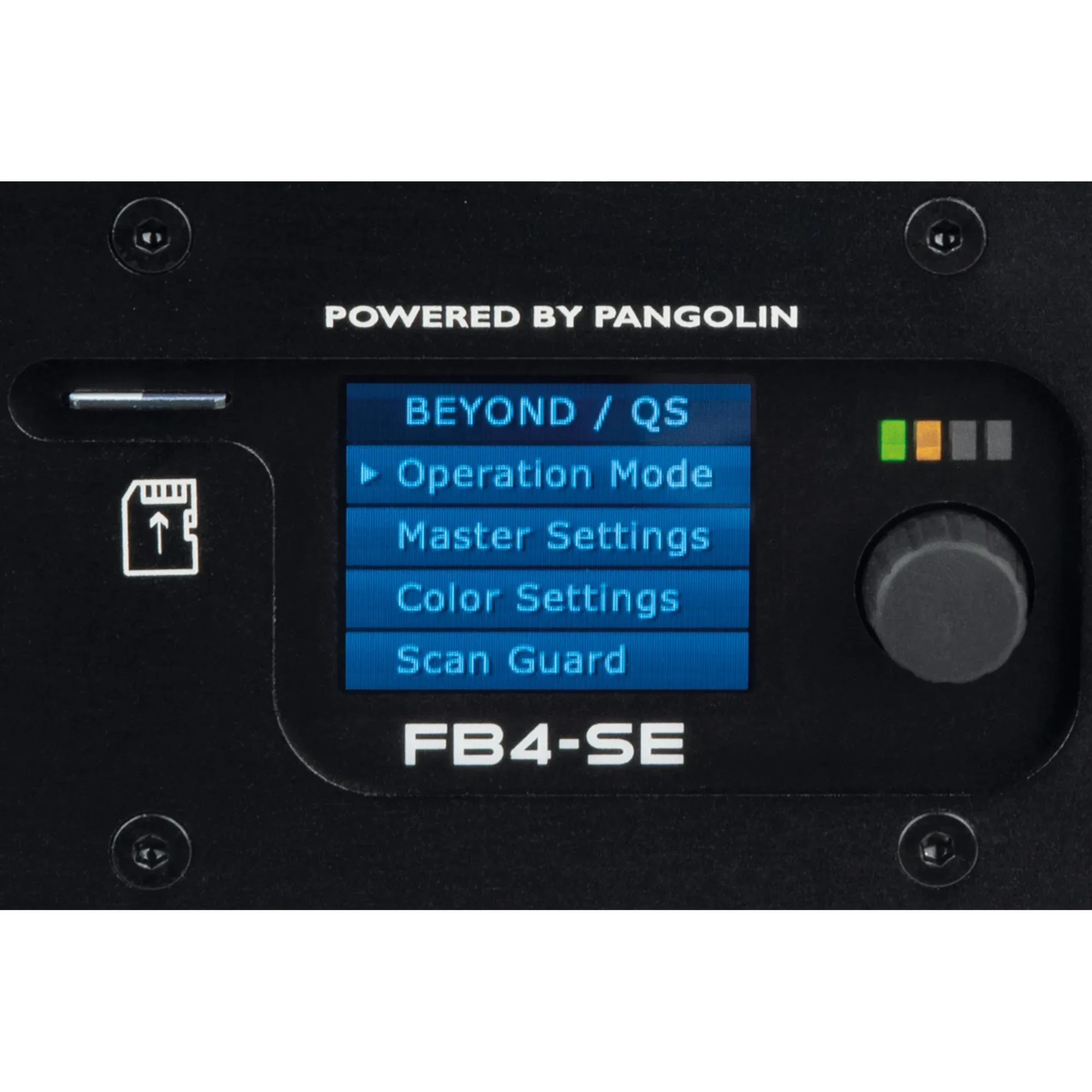

Very powerful 11,000-mW RGB laser projector with built-in Pangolin FB4 control module, intended for use in large venues. The FB4 module unlocks the award-winning QuickShow software, which means you can use this professional software completely free of charge. This opens up extensive possibilities for professional laser show control. It allows you to run your laser shows in a full network setup, controlled by the QuickShow software on your PC. You can also control it through your lighting console by Art-Net or ILDA, and it features an SD card interface for saving automatic, stand-alone playback.

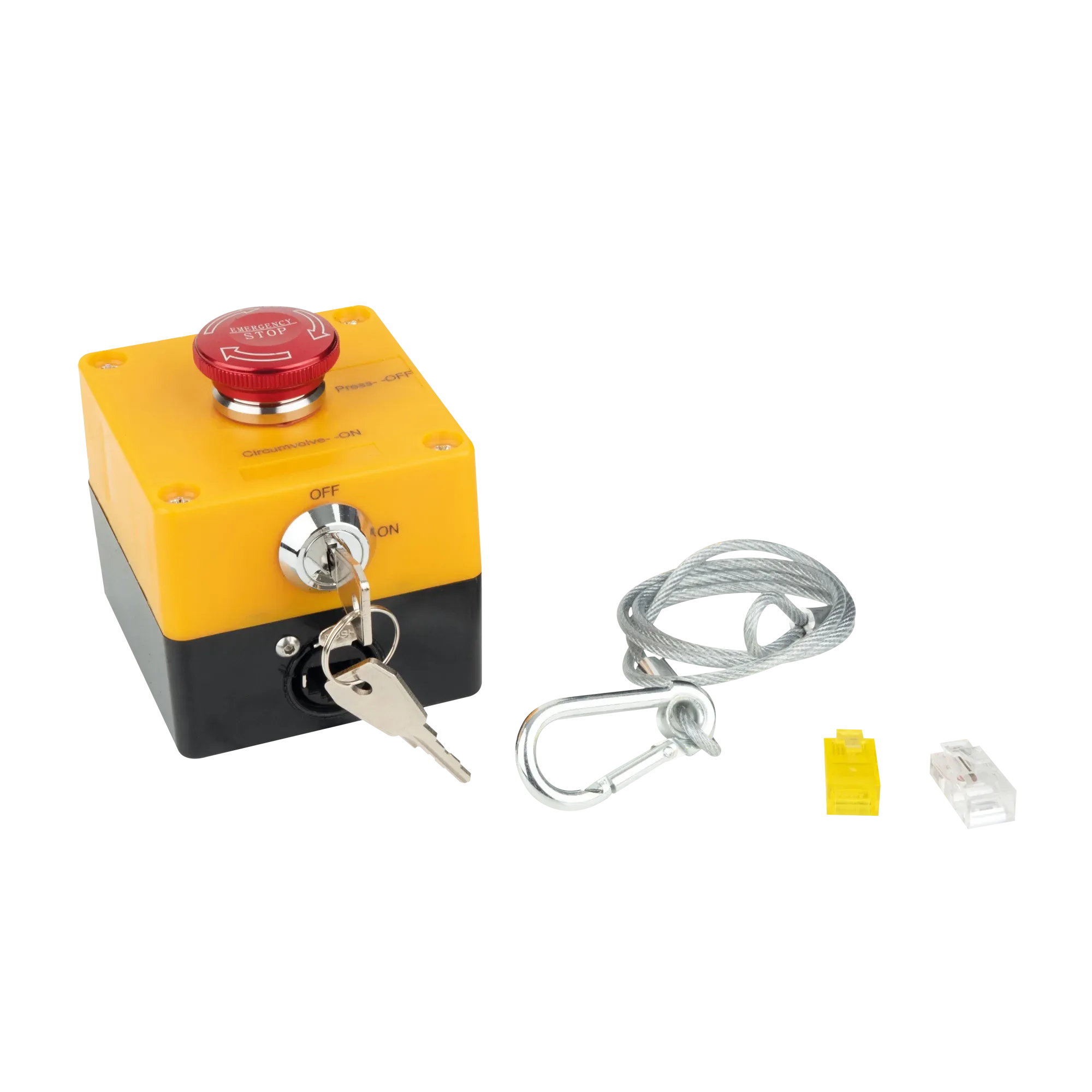

By using linear analogue dimming modulation, the Solaris 11.0 can generate the full spectrum of colours. Its very precise and high-quality construction ensure perfect matching of the RGB beams and distortion-free images. Its wide 45° beam angle allows for large projection areas. It comes with all the necessary safety measures, like scanning system overload protection, a keyed interlock system, scan-fail safety, aperture masking plate, emergency stop system, and a keyed remote.

Kogus *

Tootekood: 8717748546869 Kategooria:

Kirjeldus

Source
Laser Power 11000 mW
Laser Source Diode
Laser Modulation Analog
Laser Class 4
Laser Colour Red, Green, Blue
Laser Power (Total) 11000 mW
Laser Power (Red) 3000 mW
Laser Wavelength (Red) 637 nm
Laser Power (Green) 3600 mW
Laser Wavelength (Green) 520 nm
Laser Power (Blue) 4800 mW
Laser Wavelength (Blue) 445 nm
Control and Programming
Control Mode Art-Net, DMX, SD Card
Display OLED
Movement
Laser Scan Angle (Max.) 45 °

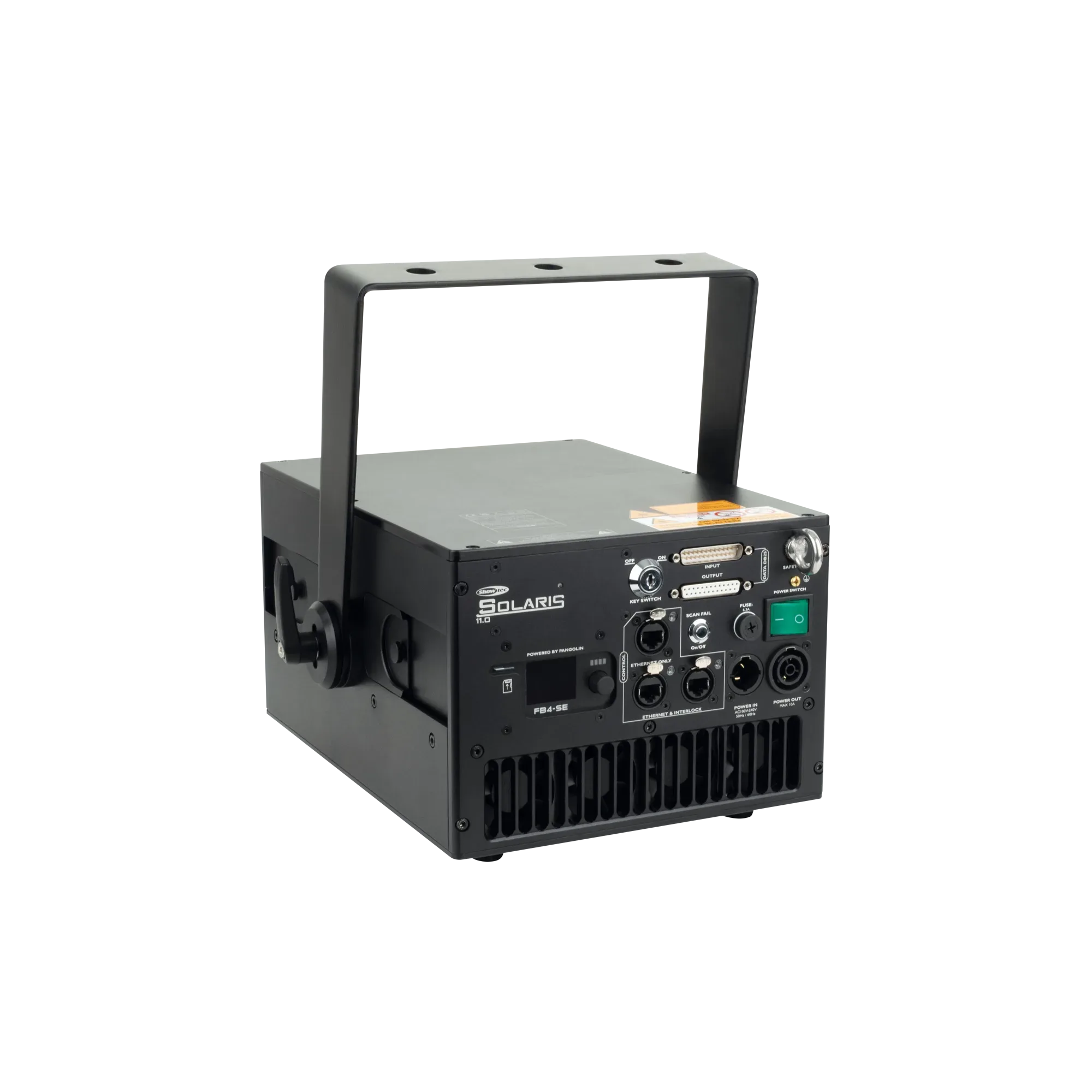

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 350 W
Power Connector In Power Pro True
Power Connector Out Power Pro True
Data Connector ILDA DB25, RJ45 In/Out
Data Connector In ILDA DB25 Male, RJ45
Data Connector Out ILDA DB25 Female, RJ45
Mechanical Specifications
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
Product Properties
Cooling Axial fan
Safety Features Interlock, Key Switch, Safety Eye
Laser Scanner 35 kpps
Thermal Specifications
Maximum Ambient Temperature 40 °C
Rigging
Mounting Options Bracket, Floor
Safety Attachment Yes

Lisainfo

Kaal 12.5 kg
Mõõtmed 32 × 34.8 × 32 cm
