Showtec LED Light Bar 8

The LED Light bar 8 is another member of the LED Light Bar range. It is equipped with 240 10 mm LEDs in red, green and blue. A great advantage of this bar is that it is divided into 8 sections, which allows you to create beautiful flows and great chases. It has multiple DMX modes for optimal control as well as sound to light function for easy applications. The LED Light Bar 8 offers true value for money.
Tootekood: 8717748486806 Kategooria:


Light Source Type LED
Light Source Quantity 240
Light Source Power 5 W
LED Colour Type RGB
Refresh Rate 11600 Hz
Illuminance @ 2 m 613.3 lx
Luminous Flux (Total) 800 lm
Beam Angle (Horizontal) 30 °
Beam Angle (Vertical) 30 °
Control and Programming
Control Mode Auto, Built-in Program, DMX, Master Slave, Sound, Stand Alone
DMX Channels 2, 3, 4, 7, 14, 26
Protocols DMX

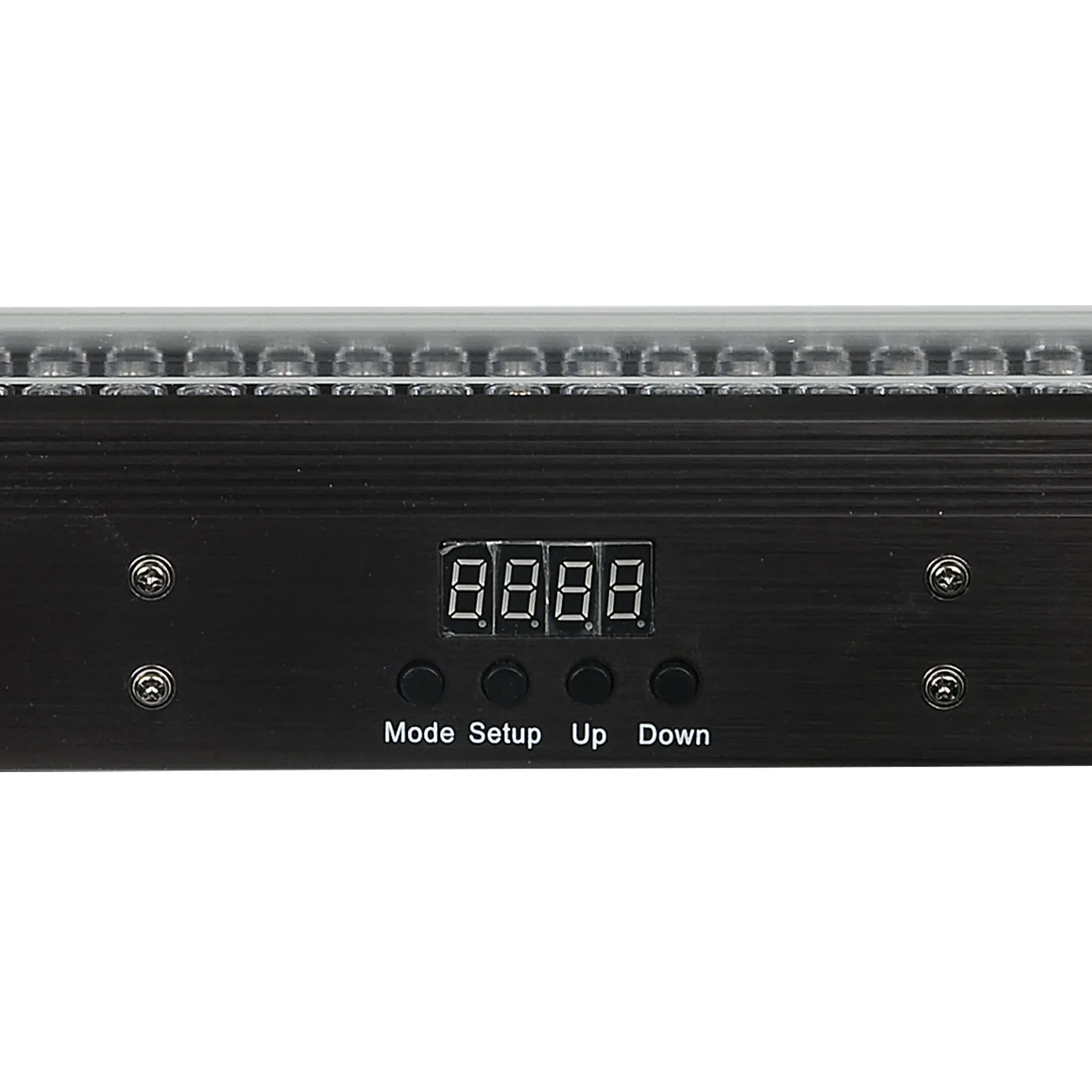

Display 7-segment
Dynamic Effects
Dimmer 0-100 %
Strobe 0-15 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 23 W

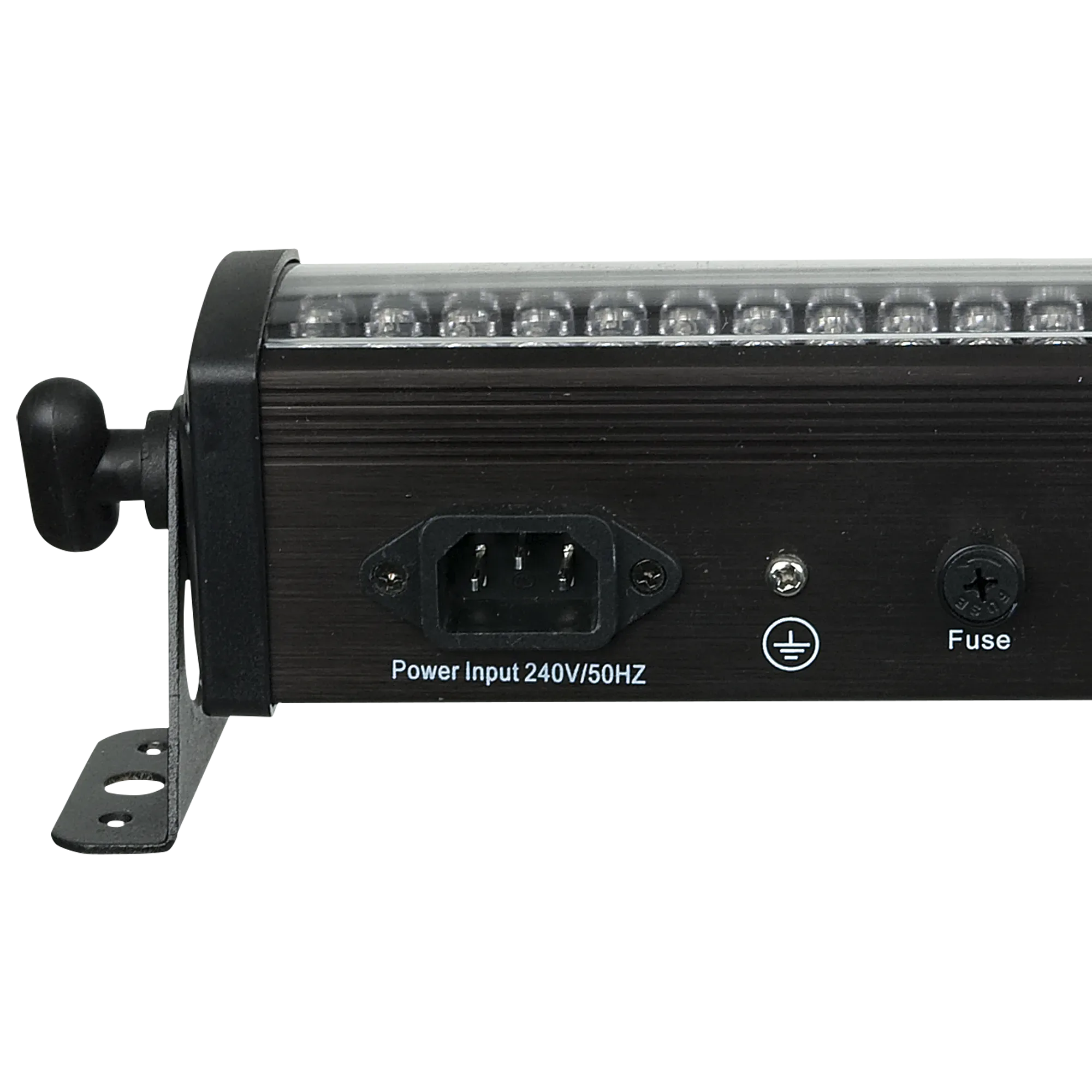

Power Connector In IEC
Power Connector Out IEC

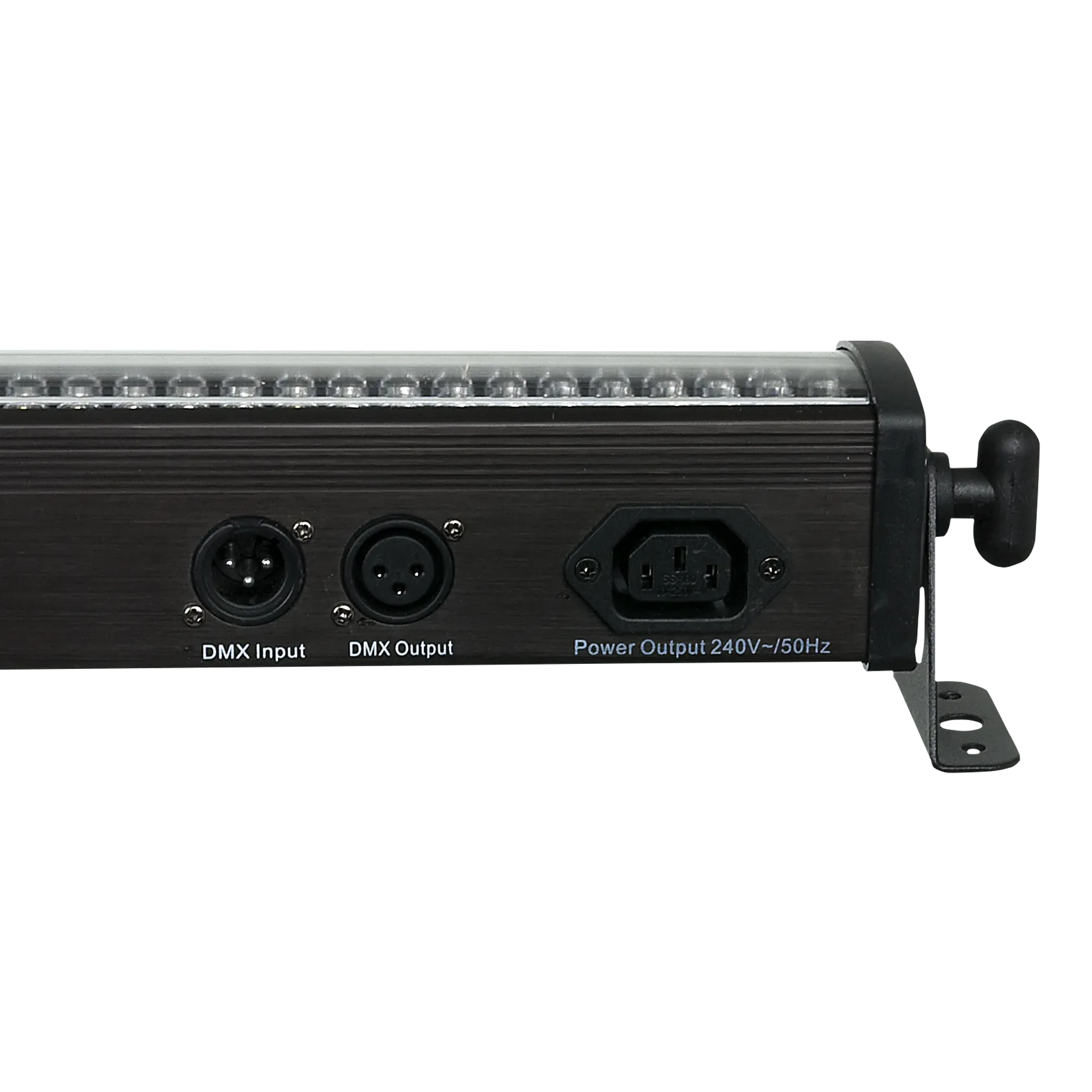

DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
Product Properties
Cooling Convection
Mounting Options Bracket, Clamp, Floor, Wall
Safety Attachment No
Thermal Specifications
Maximum Ambient Temperature 40 °C


Kaal 1.58 kg
Mõõtmed 107 × 6.5 × 8.8 cm
