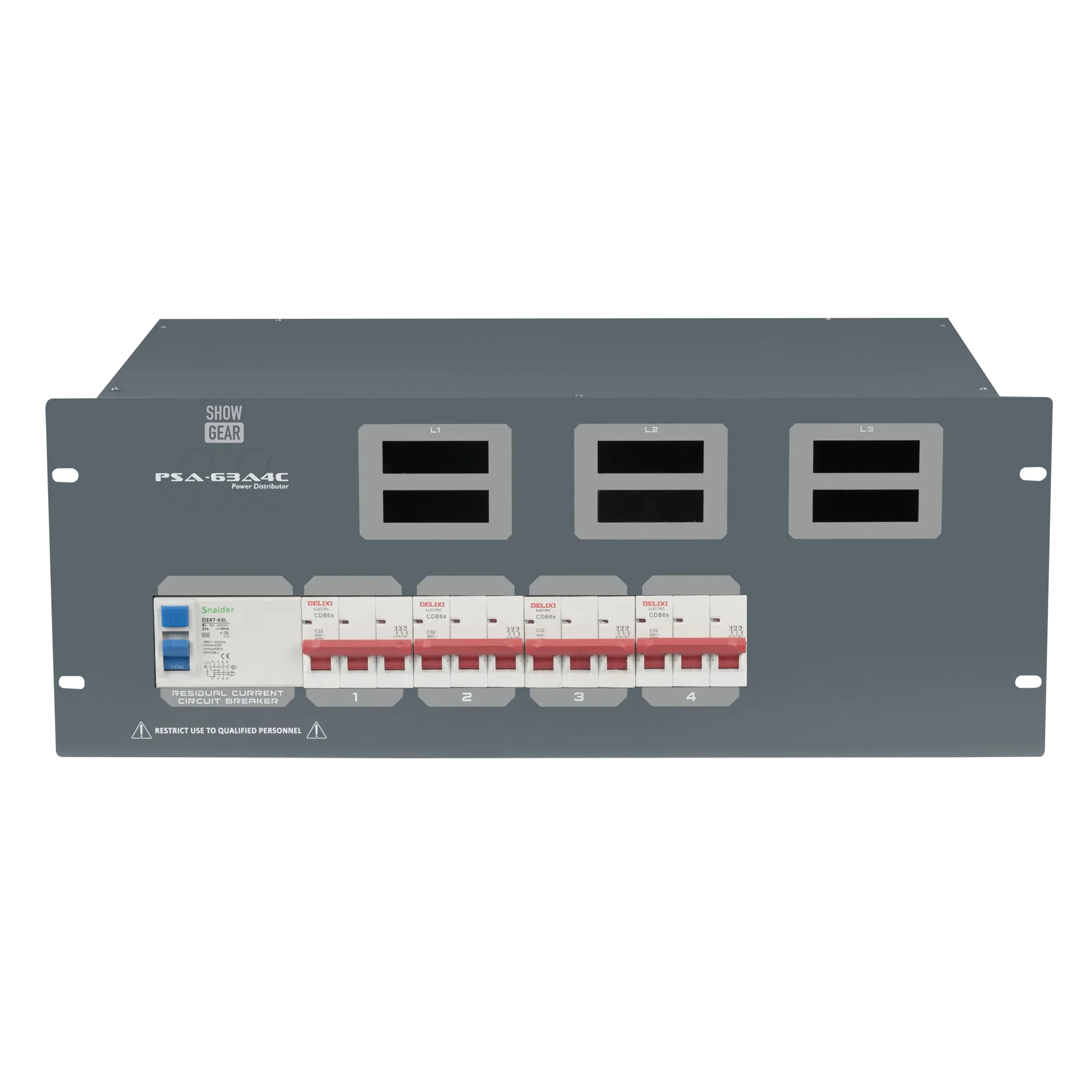

Showgear PSA-63A4C
Bring safety to the stage! Power is the most important component for a successful show on any stage. Showgear has developed, together with leading rental companies, the power distributors that will keep your power and equipment safe. The PSA series provide real-time voltage and current information during your show. Now you can monitor your setup and make sure that the power is correctly distributed at all times.
Kirjeldus
Control and Programming
Display: 7-segment, LED
Electrical Specifications and Connections
Rated Current (A): 63 A

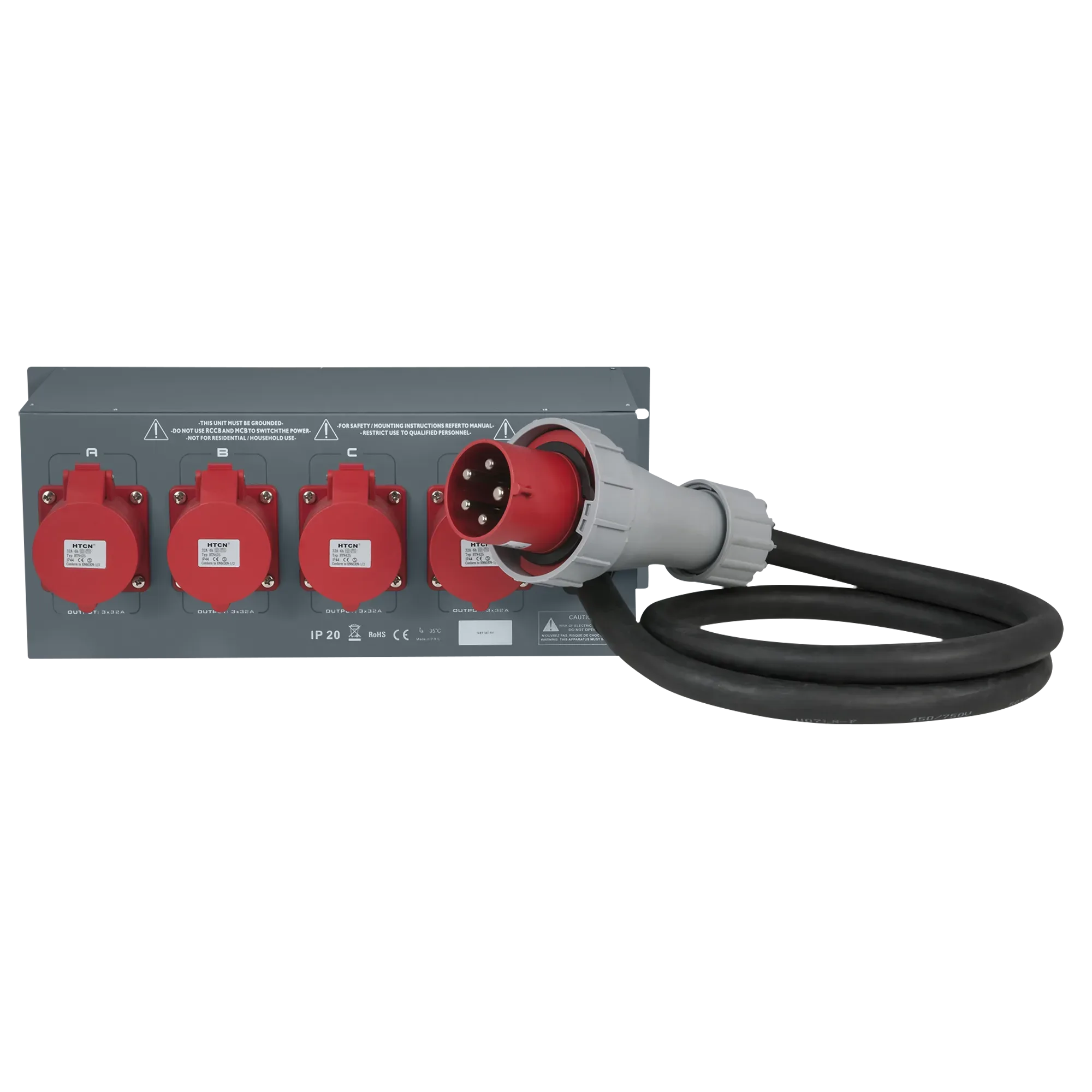

Power Connector In: CEE5P 63 A
Power Connector Out: CEE5P 63 A
Cable Lenght: 1,5m
MCB Rated Current: 32 A
MCB Class: Class C
MCB Poles: 3
RCCB Class: A
RCCB Sensitivity: 30 mA
RCCB Poles: 4
Pins: 5
Mechanical Specifications
Rack Units: 4 U
IP Rating: IP20 (indoor use only)
Housing: Metal
Colour: Gray
Product Properties
Condustors: 5
Thermal Specifications
Maximum Ambient Temperature: 40 °C (104 °F)
Minimum Ambient Temperature: -5 °C (23 °F)
Lisainfo
| Kaal | 12.5 kg |
|---|---|
| Mõõtmed | 48.2 × 32 × 18 cm |
