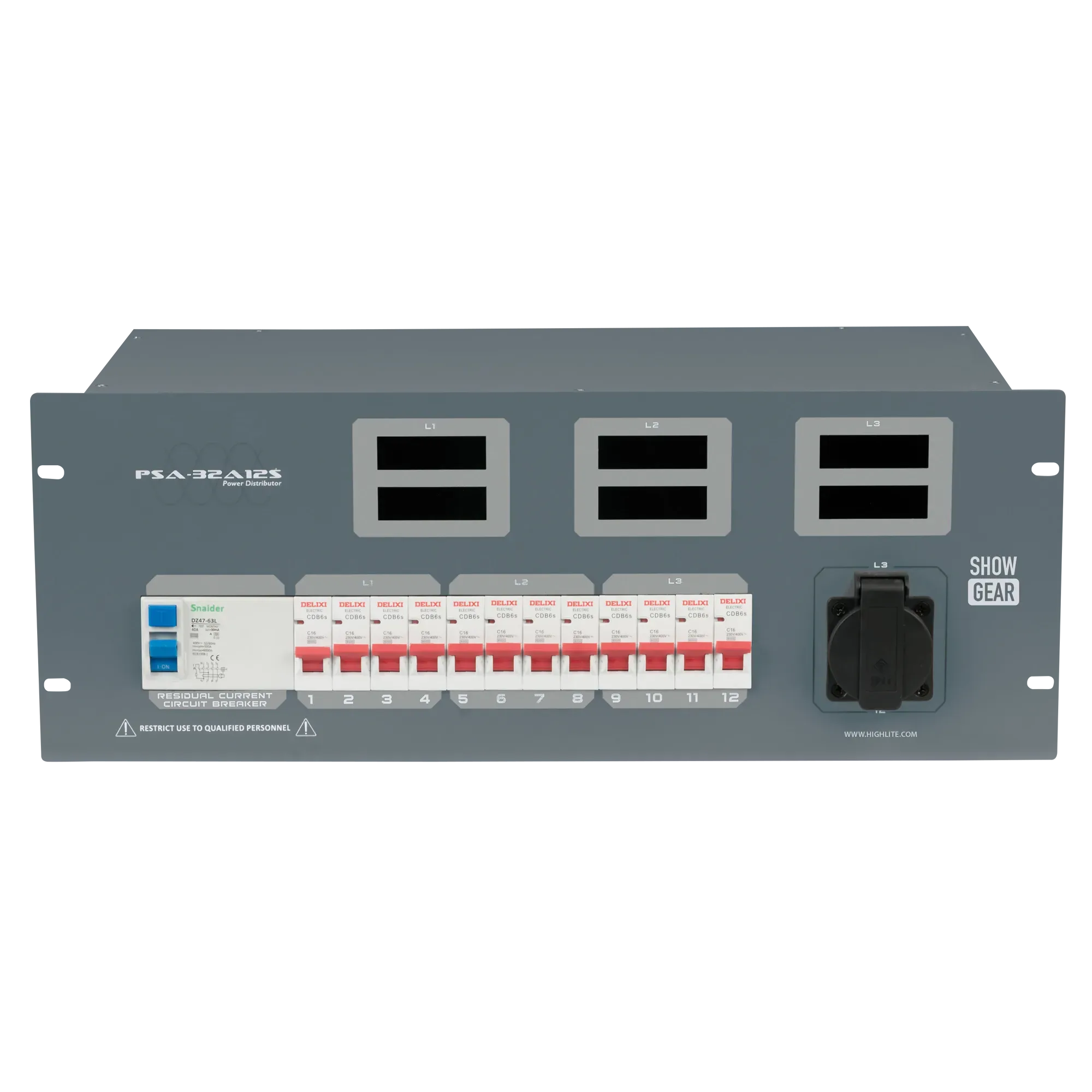

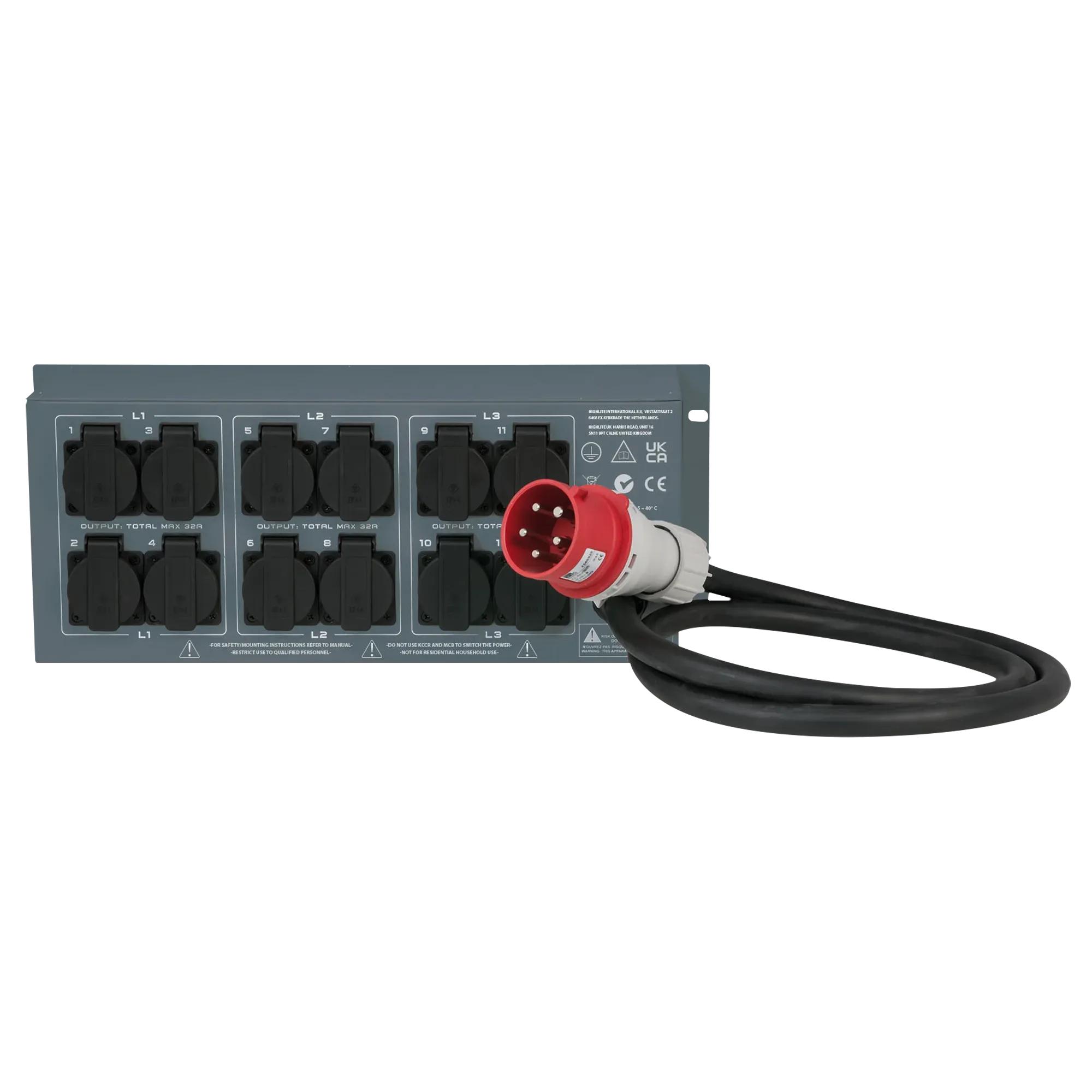

32A elektrikilp kaitsmeplokiga – PSA-32A12S

Bring safety to the stage! Power is the most important component for a successful show on any stage. Showgear has developed, together with leading rental companies, the power distributors that will keep your power and equipment safe. The PSA series provide real-time voltage and current information during your show. Now you can monitor your setup and make sure that the power is correctly distributed at all times.

Kogus *

Kategooria:

Kirjeldus

Control and Programming
Display: 7-segment, LED
Electrical Specifications and Connections
Rated Current (A): 32 A
Power Connector In: CEE5P 32 A
Power Connector Out: Schuko Socket, Type F
Cable Lenght: 1,5m
MCB Rated Current: 16 A
MCB Class: Class C
MCB Poles: 1
RCCB Class: A
RCCB Sensitivity: 30 mA
RCCB Poles: 4
Pins: 5
Mechanical Specifications
Rack Units: 4 U
IP Rating: IP20 (indoor use only)
Housing: Metal
Colour: Gray
Product Properties
Condustors: 5
Thermal Specifications
Maximum Ambient Temperature: 40 °C (104 °F)
Minimum Ambient Temperature: -5 °C (23 °F)

Lisainfo

Kaal 9.8 kg
Mõõtmed 48.3 × 19.8 × 17.6 cm
