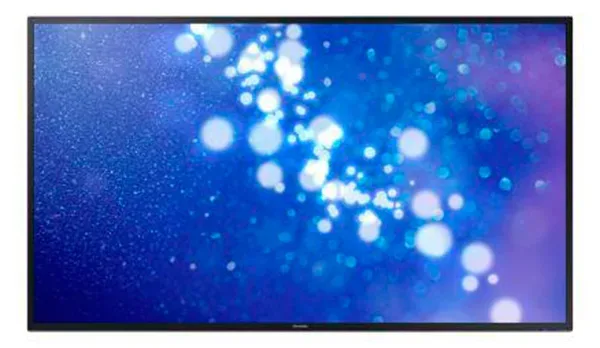

Samsung 75″ DM75E
Samsung DM75E – DM-E Series 75″ Slim Direct-Lit LED Display.
All combined with a sleek industrial design and slim 2.2″ chassis depth.
Samsung’s DM75E delivers 24/7 reliability on a large 75″ screen for continuous operation. Display content without an external PC thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. All combined with a sleek industrial design and slim 2.2″ chassis depth.
- Reliable 24/7 operation and enhanced System-on-Chip performance with a quad core CPU
- Built-In Wi-Fi® for expanded connectivity and simple content mirroring from mobile devices
- Transform your display with an optional touch overlay for a PC-less touch solution
- Slim 2.2″ chassis depth with slim direct-lit LED technology
Kirjeldus
| Display | |
| Screen Size | 75″ |
| Panel Technology | 60Hz Slim D-LED BLU |
| Resolution | 1920×1080 (16:9) |
| Brightness | 450 nits |
| Contrast Ratio | 5000:1 |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° |
| Orientation | Landscape / Portrait |
| Response Time (G-to-G) | 4ms |
| Connectivity | |
| Input | Analog D-SUB, DVI-D (HDMI Common), DisplayPort 1.2, HDMI1, HDMI2 (thru DVI-D Input, Adapter Not Included), Component (CVBS Common) Stereo Mini Jack, USB 2.0 x 1 |
| Output | DisplayPort 1.2 (Loop-Out), Stereo Mini Jack |
| External Control | RS232C (In/Out) thru Stereo Jack, RJ45 |
| External Sensor | IR, Ambient Light |
| Sound | |
| Speaker Type | Built in Speaker (10W + 10W) |
| Power | |
| Power Supply | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 110W / 308W |
| Power Consumption (Standby) | < 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0°C – 40°C |
| Operating Humidity | 10%~80% |
| Features | |
| Slim and Light LFD with Built-in MagicInfo Player S3 | |
| Special | Hardware Super Clear Coating, Temperature Sensor, Video Wall (15×15), Portrait Mode, Clock Battery (168hrs Clock Keeping), Built in Speaker (10W x 2), WiFi Module Embedded, SD Card Slot Software Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, 1 Button Lock, DP 1.2 Digital Display Chain (HDCP Support), Built-in MagicInfo S3, Firmware Update by Network, LFD New Home Screen, PC-Less Videowall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter |
| Tuner | L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB |
| SMART Signage Platform Compliant | Yes |
| Internal Media Player | Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB Storage, USB 2.0, Samsung Proprietary OS (VDLinux) |
| VESA Standard Wall Mount Interface | 400 x 400mm |
| 24/7 Operation | Yes |
| Accessories | |
| Included | Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries, RS232C (IN) Adapter, Cover-Jack |
| Optional Mount | WMN4675MD, WMN4277SD, WMN6575SD, CML450D (Ceiling Mount) |
| Optional Stand | STN-L7585F (New Stand) |
| External Media Player | SBB (Optional), PIM (Optional) |
| Optional Touch Overlay | CY-TD75LDAF |
| Green Management | |
| Emission Standard | EMC |
| ENERGY STAR® 6.0 Compliant | N/A |
| RoHS Compliant | Yes |
Lisainfo
| Kaal | 34.1 kg |
|---|---|
| Mõõtmed | 167.6 × 96 × 5.8 cm |
