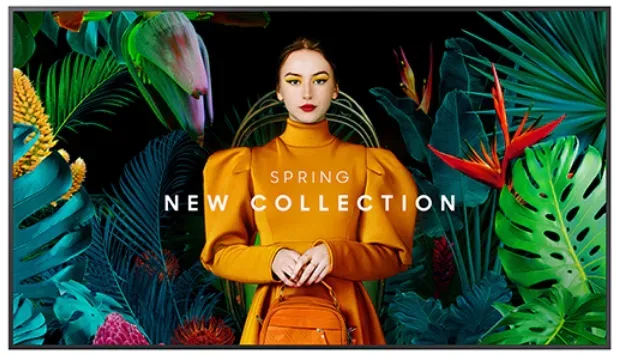

Samsung 55″ QM55C

Dynamic Crystal Color UHD Digital Signage for Business.
QMC Series 4K Signage Display.
Introducing the QMC series, the slimmest display in the Samsung’s UHD signage offerings. This products deliver an unparalleled slim design that fits into any business, while delivering the visual quality to make a big impact. The sleek form factor is easily installed to fit any room design and delivers stunning visual performance. Dynamic Crystal Color and Quantum Processor Lite 4K delivering consistent, lifelike colors to any content. This is not just a display for simple advertising. It’s a display that brings the solutions, tools, and picture quality to grow to your business, no matter what industry you’re in.

  • QMC, slimmest display in Samsung’s UHD Signage, ultra-slim 28.5mm depth optimizes space.
  • Dynamic Crystal Color, over one billion shades, delivers an immersive viewing experience.
  • Industry-leading technology, powered by Quantum Processor Lite 4K, enhances content for clarity and consistency.
  • SmartView+ enables wireless screen sharing makes collaboration easy and functional.

Kogus *

Kategooria:

Kirjeldus

  • Design

    Resolution 3,840 x 2,160 (16:9)

    Contrast Ratio (Dynamic) Mega

    Viewing Angle (H/V) 178/178

    Color Gamut 72% (NTSC)

    Glass Haze 25%

    H-Scanning Frequency 30~81kHz

    Maximum Pixel Frequency 594MHz

    V-Scanning Frequency 48~75Hz

    Brightness (Typ.) 500 nit

    Orientation Landscape/Portrait

    Panel Type VA/IPS

    Active Display Area 1209.6(H) x 680.4(V)

    Response Time (ms) 8ms

    Operation Time Support 24/7

    Contrast Ratio 4,000:1

  • Connectivity

    HDMI In 3

    DP In 1

    Version of DP 1.2

    USB 2

    Version of HDCP 2.2

    IR In Yes

    Audio Out Stereo Mini Jack

    RS232 In Yes

    RS232 Out Yes

    RJ45 In Yes

    WiFi Yes

    Version of HDMI 2

    Bluetooth Yes

  • Power

    Power Supply AC100-240V 50/60Hz

    Power Consumption (On Mode) 154 W

    Power Consumption (Sleep Mode) less than 0.5W

  • Features

    Key UHD Signage with Built-in Magic Info S10, SSSP 10.0

    Special H/W 2nd Gen. B2B Design Center IR
    Temperature Sensor Ambient Sensor
    Auto Level Wi-Fi(2.4/5.0GHz dual) & BT

    Special S/W Signage New Home
    Workspace (Microsoft371/VMWare/RDP)
    Custom Home
    Auto Source Switching & Recovery
    Dicom Simulation Mode
    Director Mode
    SmartView+
    Upgradable Web-Engine
    Tizen Enterprise Platform
    Video Conference Solution
    Smart Calibration

  • Internal Player

    Processor CA73 1.6GHz Quad-Core

    Operating System Tizen 7.0

    Storage (FDM) 16 GB(10 GB available)

  • Mechanical Specs

    VESA Mount 200 x 200

    Frame Material Non-Glossy

    VESA Mount Screw (Min~Max) M8, 12~14mm

    Bezel Width (mm) 11.5(Even)

    Set Dimension (Inches) 48.7 x 27.9 x 1.1

    Package Dimension (Inches) 55.2 x 32.9 x 5.8

  • SoC

    OS Version Tizen 7.0

    Flash Memory Size 16GB

  • Optional Feature

    Mount WMN-B50SC

  • Certification

    Safety 60950-1 / 62368-1

    EMC Class B

    Environment ENERGY STAR 8.0, EPEAT

    IP Rating IP5x

    Security 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP

  • Display Panel

    Screen Size 55

    Measured 54.6

    Contrast Ratio (Typ.) 4000:1

    Pixel Pitch (mm) 0.315 x 0.315

  • Connectivity/Sound

    VIDEO Input DP 1.2 (1), HDMI 2.0 (3)

    HDCP Input HDCP2.2

    USB Input USB 2.0 x 2

    AUDIO Output Stereo mini Jack

    WiFi / BT O / O

    External Control RS232C(in/out), RJ45

    Speaker 10W 2ch

  • Operating Condition

    Temperature (Celsius) 0℃~ 40℃

    Temperature (Fahrenheit) 32 ~ 104

    Relative Humidity 10~80%

Lisainfo

Kaal 15.7 kg
Mõõtmed 123.79 × 70.88 × 2.85 cm
