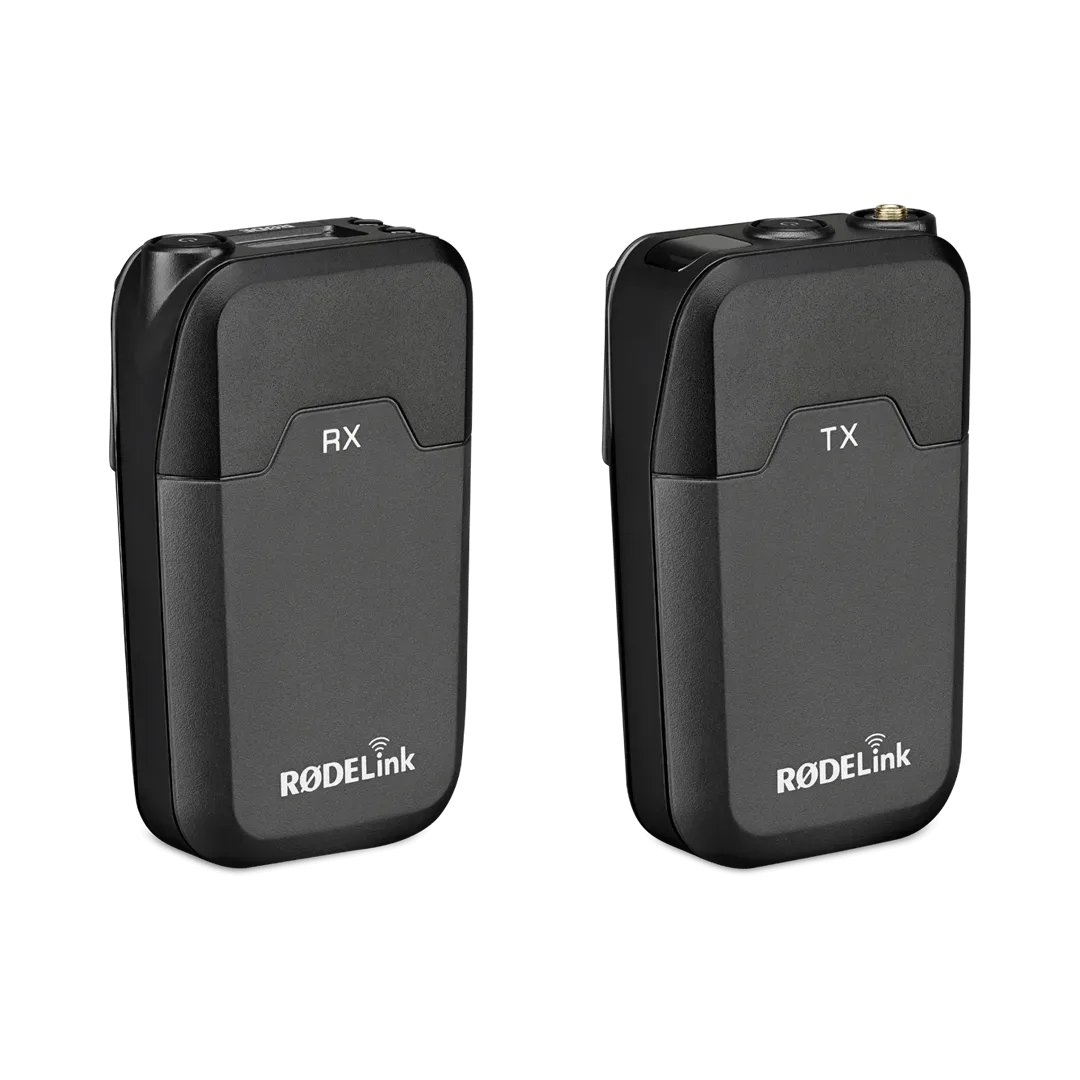

RØDELink Filmmaker Kit

RØDELink represents a range of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8″ thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.

Kogus *

Kategooria:

Kirjeldus

Transmission
Type: 2.4GHz Fixed Frequency Agile System
System Dynamic Range: 112 dB
Range (Distance): Up to 100m
Frequency Range: 35Hz – 22kHz
Maximum Output: Level 1v Rms (2.8v P-p)
Maximum Input: Signal Level 1v Rms (2.8v P-p)
Maximum Latency: 4ms
Power Source: 2 X AA Battery Or MicroUSB
Antenna Internal
Output Connection: RX-CAM – 3.5mm TRS Locking Jack Socket – Dual Mono
Input Connection: TX-BELT – 3.5mm TRS Locking Jack Socket
Output Impedance: RX-CAM – 300Ω, RØDELink LAV – 3k Ω Typical
Input Impedance: 10kΩ
Acoustic Principle Permanently Polarised Condenser
Polar Pattern Omni-directional
Frequency Range: 20Hz – 20kHz
Maximum SPL: 110 dB SPL (@ 1kHz, 1% THD into 1Ω load)
Sensitivity: -33.5db re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2dB @ 1kHz
Signal to Noise Ratio: 67 dB
Equivalent Noise (A-Weighted): 27 dB Typical
Dynamic Range: 83 dB Typical
Dimensions (mm):
RX-CAM – 111 (L) X 65 (W) X 52 (H)
TX-BELT – 111 (L) X 65 (W) X 40 (H)
RØDELink LAV – 1200 (L) x 4.5 (W) x 4.5 (H)
Weight (g): RX-CAM – 190
