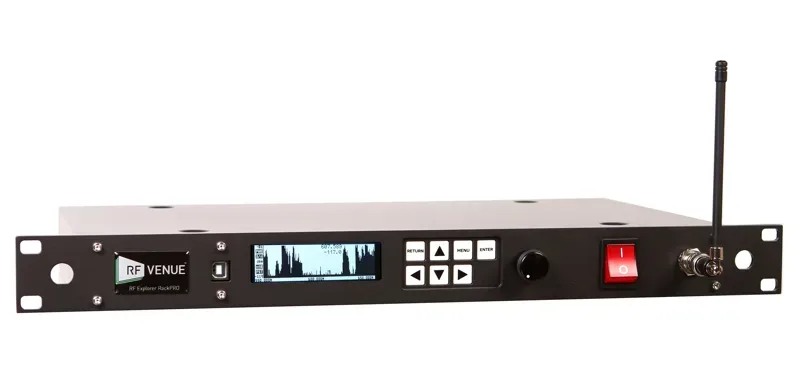

RF Explorer RackPRO

RF Explorer RackPRO is a spectrum analysis and monitoring system that lets you see wireless microphone and IEM frequencies inside your venue.
How is the RackPRO different from other analyzers? Well, it’s housed in an industry standard 19″ form factor, for easy integration with existing live and installed cases, racks, and equipment closets.
It can be operated either from the onboard LCD screen and touchpad, or from a computer or laptop through a USB cable.
And the included Clear Waves software for Windows lets you visualize spectrum in detail, label and monitor transmitter frequencies, and instantly calculate sets of intermodulation free frequencies that can be exported to multiple formats, including those compatible with Shure Wireless Workbench and IAS.
Best of all that RF Venue is releasing a Mac OSX spectrum management application this June, so users of Mac computers will finally have access to the RF tools they need.

Kategooria:

Kirjeldus

  • Electrical Characteristics
    Operating Frequency: 240 to 969 MHz
    Nominal Impedance: 50 Ohms
    Maximum Input Power: +5 dBm
    Modes: Peak Max, Max Hold, Normal Overwrite, Averaging
    Dynamic Range: -115 to 0 dBm
    Average Noise Level: -115 dBm
    Physical
    Dipole whip antenna
    1 x BNC RF input connector (front panel)
    1 x USB Type B for host connection
    LCD display
    Power Requirements
    110~240 VAC, 50/60 Hz internal switching power supply
    Dimensions
    483 x 254 x 44 mm
    Weight
     2.2 kg
