RCF – Aktiivkõlar – TT 052-A

Ultra compact high output speaker.

The TT052-A is an extremely compact, active loudspeaker specifically designed for indoor applications where the audio beam must be directed towards specific zones. It is equipped with two 5” neodymium woofers and a 1” compression driver. Thanks to its constant directivity horn and high volume output, the TT052-A can be used to guarantee the perfect intelligibility in critical environments.

8 laos

Tootekood: 13000245 Kategooriad: ,

Kirjeldus

ACOUSTICAL SPECIFICATIONS
Frequency Response 65 Hz ÷ 20000 Hz
Max SPL @ 1m 123 dB
Horizontal coverage angle 90°
Vertical coverage angle 90°

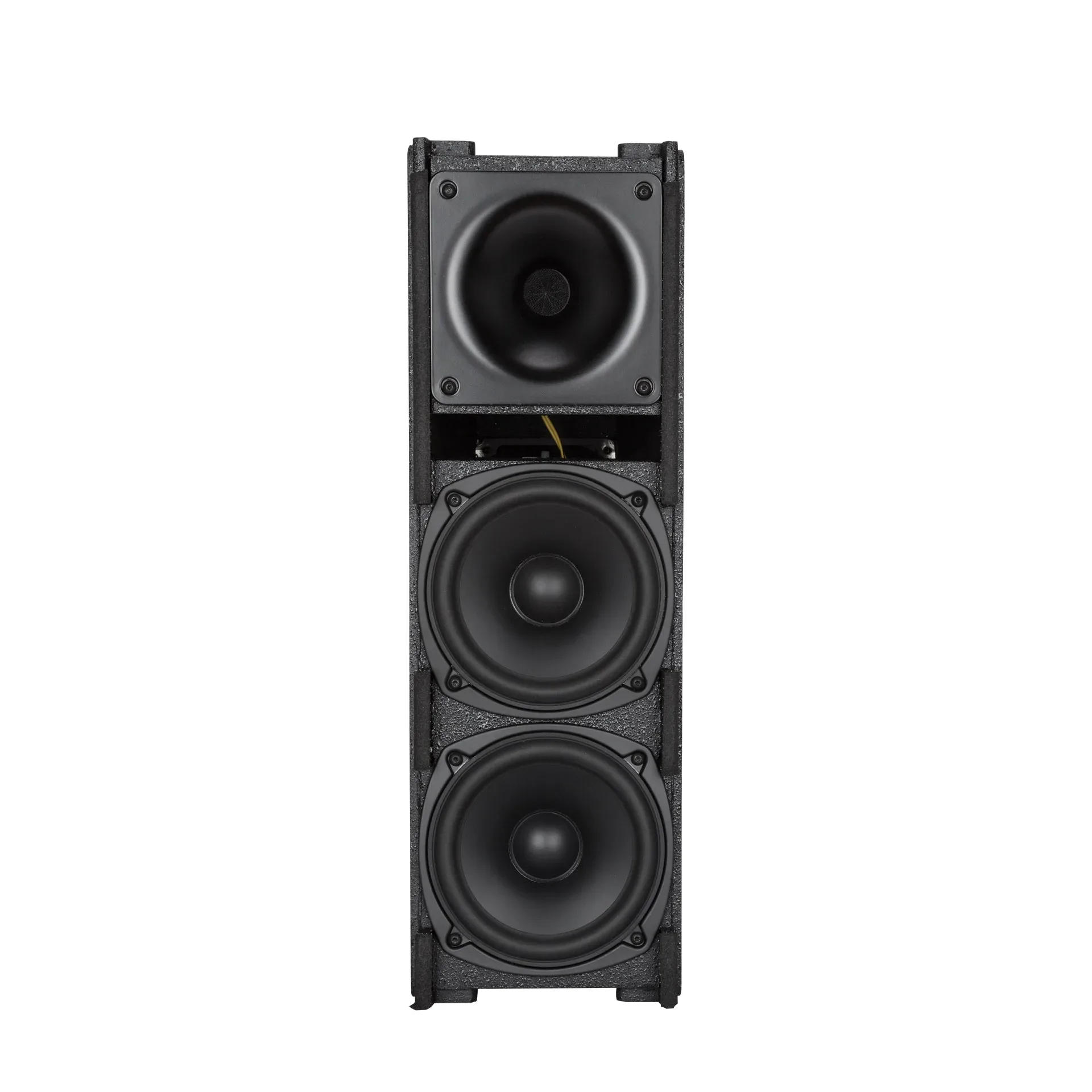

TRANSDUCERS
Compression Driver 1 x 1.0” neo, 1.5” v.c
Woofer 2 x 5.0”, 1.0” v.c

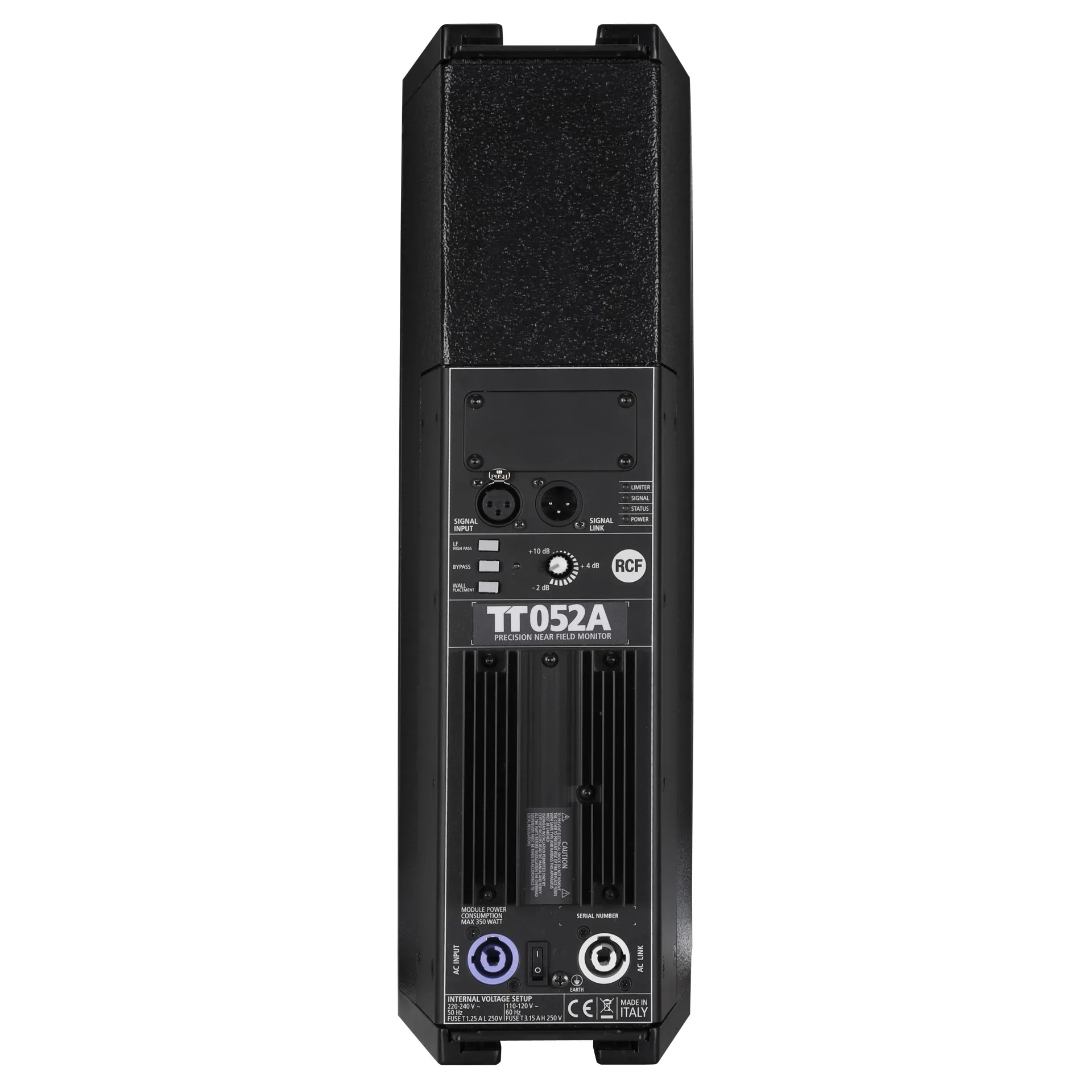

INPUT/OUTPUT SECTION
Input signal bal/unbal
Input connectors XLR
Output connectors XLR
Input sensitivity -2 dBu/+10 dBu
PROCESSOR SECTION
Crossover Frequencies 1500 Hz
Protections Thermal, Excurs., HF
Limiter Soft Limiter
Controls DSP Controlled
RDNet Ready
POWER SECTION
Total Power 600 W Peak, 300 W RMS
High frequencies 300 W Peak, 150 W RMS
Low frequencies 300 W Peak, 150 W RMS
Cooling Convection
Connections Powercon IN/OUT
STANDARD COMPLIANCE
Safety agency CE compliant
PHYSICAL SPECIFICATIONS
Hardware Multi-functional
Handles Top, Bottom
Color Black
