Pioneer DJM-A9

Kirjeldus

Main Features
MIDI Control: Full assignable MIDI controls
PRO DJ LINK: Yes
Booth EQ: Yes
P-LOCK Fader Caps: Yes
Auto Standby: Yes
DVS Control
rekordbox
Serato DJ Pro (Need to buy a license or subscription.)
Bluetooth Audio Input
Wireless system : Bluetooth Ver.5.0
Maximum transmission distance : Approximately 10 m in unobstructed circumstances (Transmission distances are a guideline.)
Frequency band used : 2.4 GHz
Modulation method : FH-SS (Frequency Hopping Spread Spectrum)
Compatible Codecs : SBC, AAC
Wireless LAN
Supported standards : IEEE 802.11 a/b/g/n/ac
Frequency band used : 2.4 GHz / 5 GHz
Specifications
Sampling Rate: 96 kHz
CH input A/D Converter: 32 bit
MASTER, BOOTH, REC, SEND D/A Converter: 32 bit
S/N Ratio Line: 105 dB
S/N Ratio Phono: 88 dB
S/N Ratio Mic: 79 dB
Distortion: < 0.005 % (LINE)
Channels
EQ/ISO: 3 band
EQ Range: Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB dB
Performance Control
Channels: 4
MULTI I/O: USB (Type A)
Sound Colour FX:
Space
Dub Echo
Sweep
Noise
Crush
Filter
Beat FX:
Delay
Echo
Ping Pong
Spiral
Helix
Reverb
Flanger
Phaser
Filter
Triplet Filter
Trans
Roll
Triplet Roll
Mobius
FX Frequency Buttons: Yes
Screen Display: Yes
X-PA: Yes
rekordbox Quantize: Yes
Crossfader
Crossfader Type: Magvel Fader
CURVE Assignable: Yes
Fader Curve: 3
Mic
Mic Connection: XLR / 1/4-inch Combo Jack, 1/4-inch TRS Jack
Mic EQ: 2 band
Mic EQ Range: -12 dB ~ +12 dB
Phantom power: Yes
Microphone Effects: Echo, Pitch, Megaphone, Reverb
Push-to-talk function: Yes
Talkover: Dedicated button
Talkover Attenuator: Yes

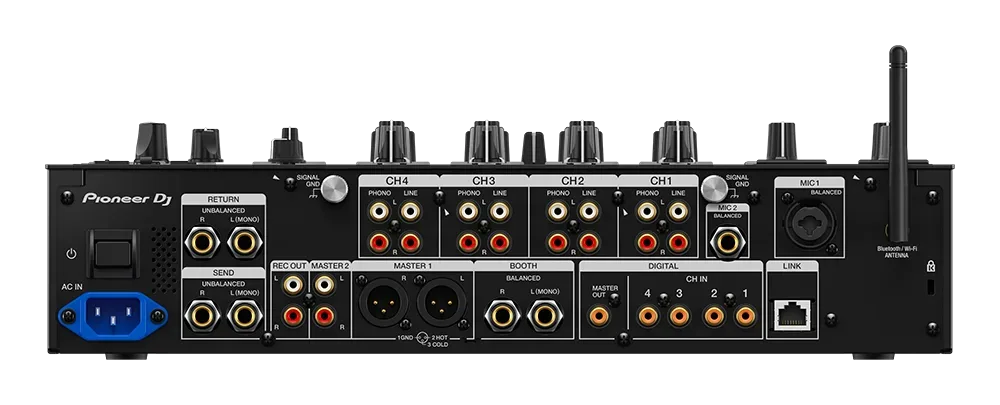

Terminals
Inputs:
4 DIGITAL (Coaxial)
4 LINE (RCA)
4 PHONO (RCA)
Send/Return: 1 SEND (1/4-inch TS jack), 1 RETURN (1/4-inch TS jack)
LAN: 1
Outputs:
1 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 REC OUT (RCA)
1 DIGITAL (Coaxial)
USB:
1 USB A port
2 USB B ports
2 USB C ports
