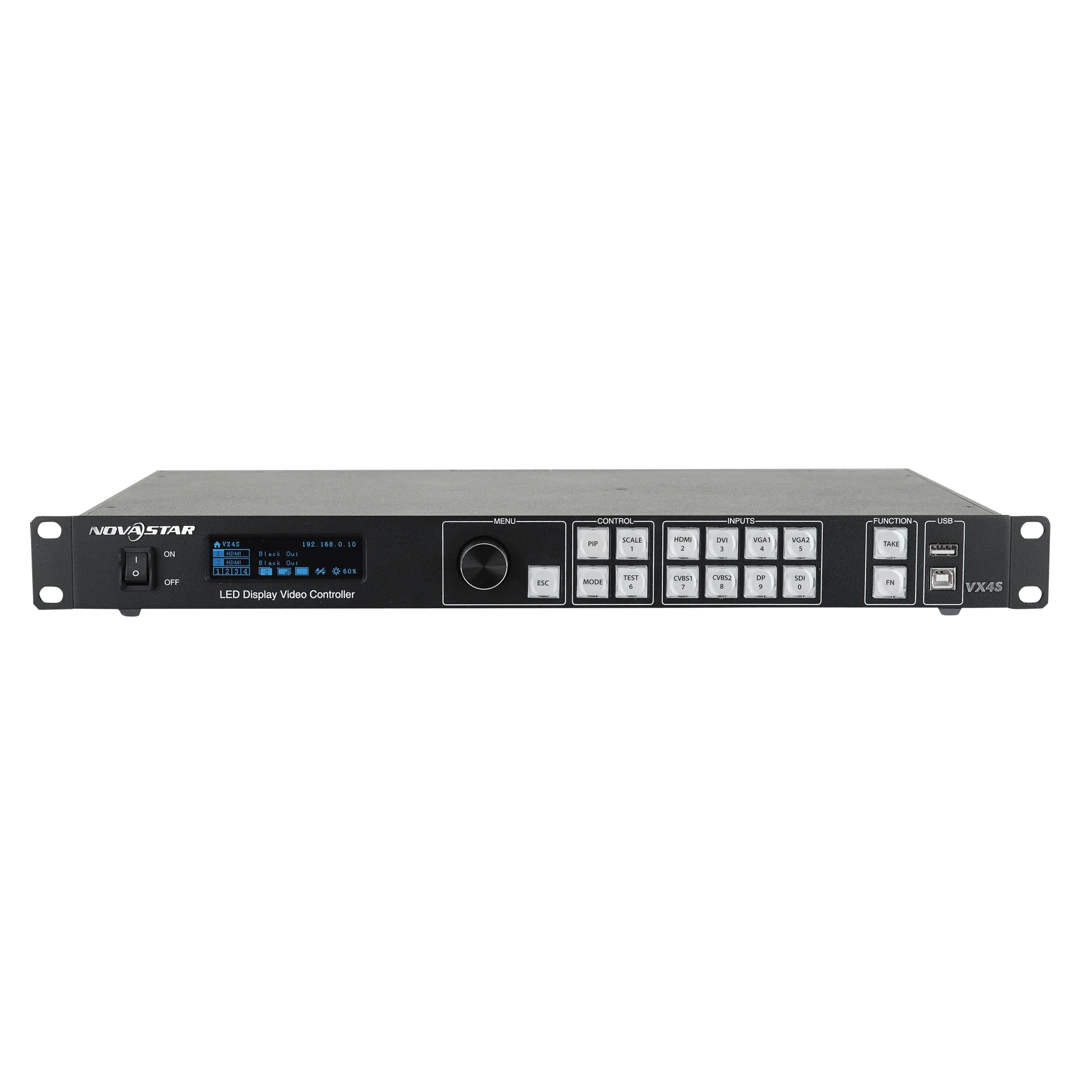

NovaStar – VX4S LED Display Video Controller
For the most demanding user who is looking for an all-in-one solution, the VX4S is the right tool for setting up your LED screen with Nova control system. It features a powerful front end processing which eliminates the need of an external scaler. The VX4S offers functions such as PIP (location and size can be adjusted), HDMI in- and output and Colour correction. Inputs can be selected easily by the direct access button on the front and the bright LCD displays allows you to navigate through the intuitive menu’s.
Kirjeldus

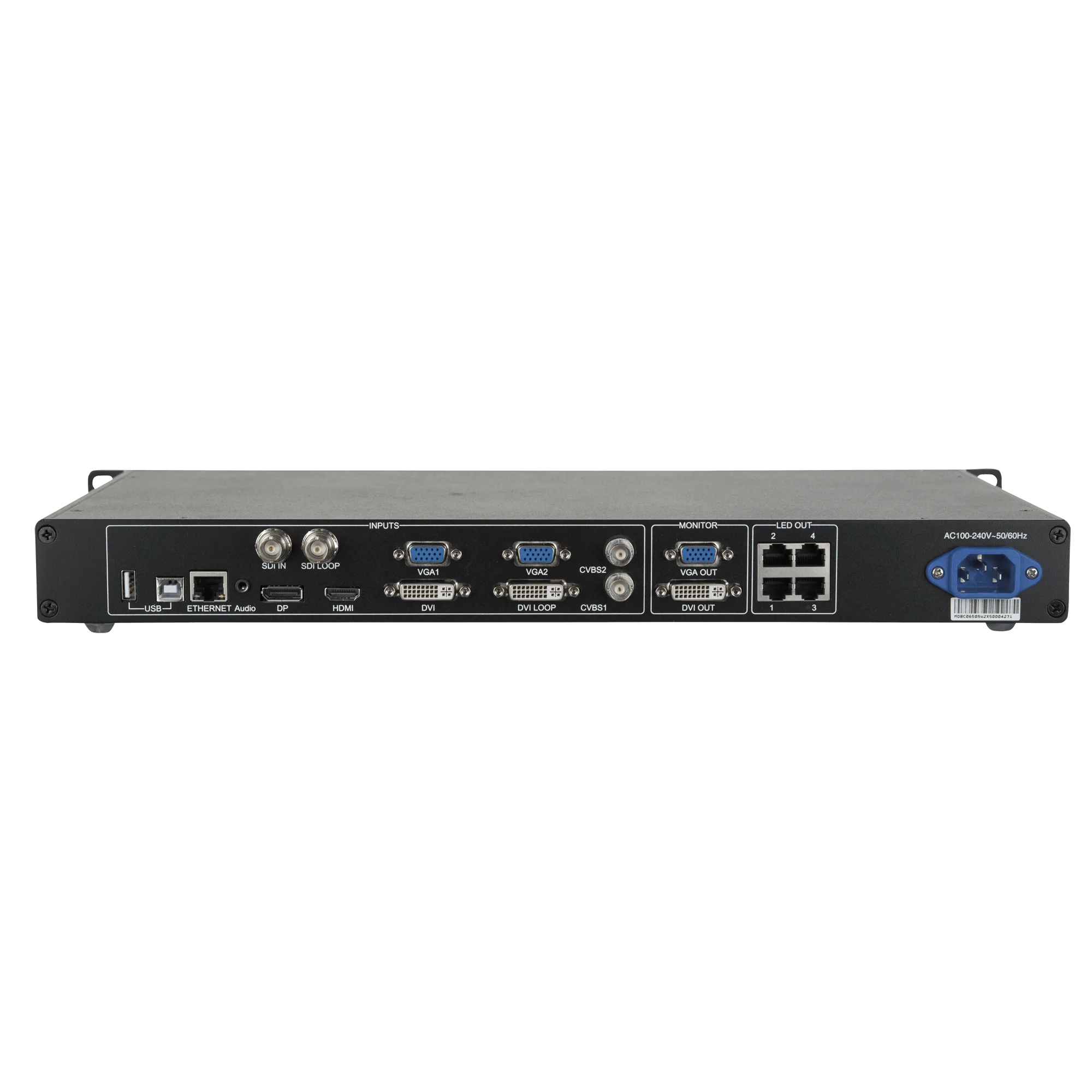

Inputs
DP 1.1: 1
HDMI 1.3: 1
Single Link DVI: 1
3G-SDI: 1
VGA (In): 2
CVBS (In): 2
Outputs
Single Link DVI (Loop): 2
3G-SDI (Loop): 1
VGA (Out): 1
Software Specifications
Control Software: Novastar LCT, Smart LCT
Extra Features
Scaling Function: Yes
Image Mosaic: Yes
Crop Settings: Yes
PIP: Yes
Control and Programming
Control System: Novastar
Maximum Loading Capacity: 2300000 Mpx
Maximum Input Resolution: 1920 x 1200
Control Options: Ethernet, USB
Electrical Specifications and Connections
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 16 W
Mechanical Specifications
Width (Including Handles): 482 mm
Height (Including Handles): 45 mm
Depth (Including Handles): 275 mm
Weight: 2.55 kg (5.622 lb)
Flightcase Size: 19″
Rack Units: 1 U
IP Rating: IP20 (indoor use only)
Housing: Aluminium, Metal
Colour: Black
Product Properties
Cooling: Active
Thermal Specifications
Maximum Ambient Temperature: 60 °C (140 °F)
Minimum Ambient Temperature: -20 °C (-4 °F)
Operating Humidity: 0-95 %rH
