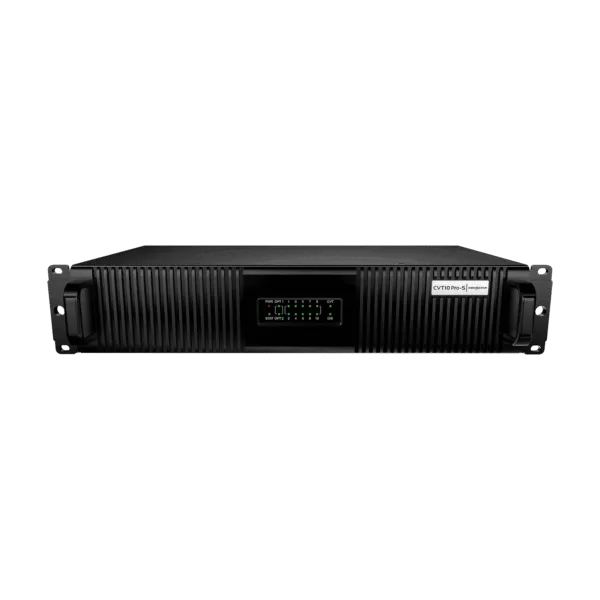

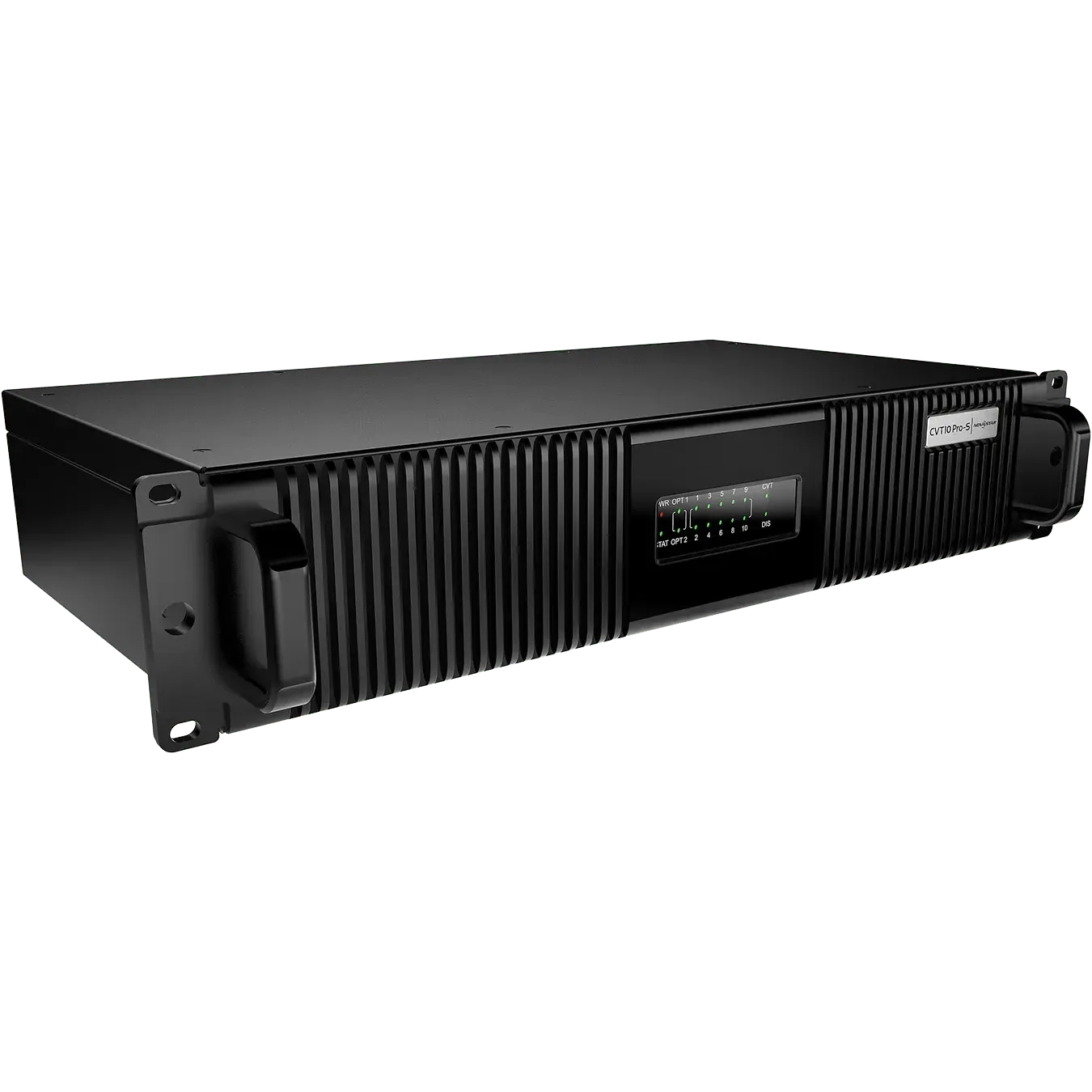

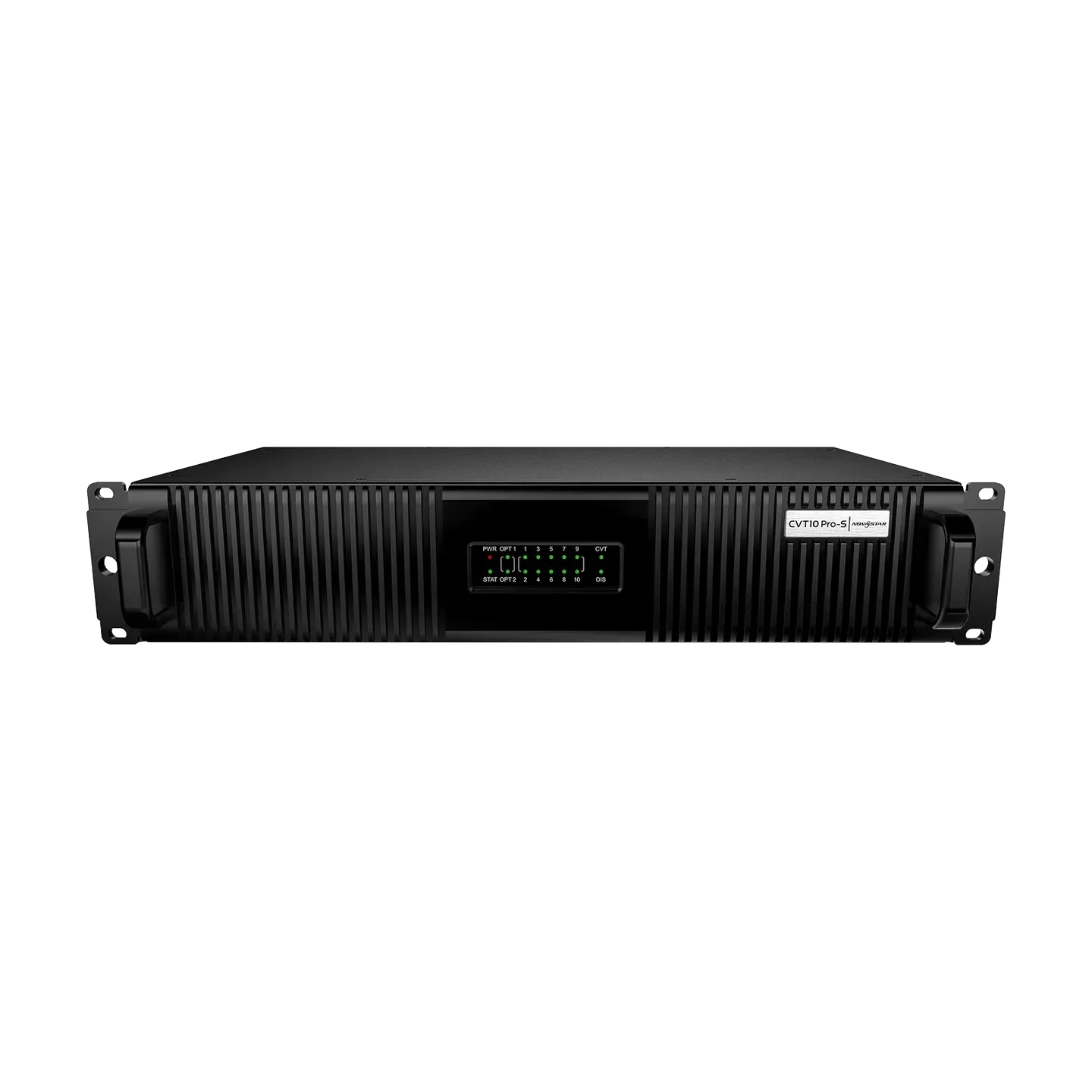

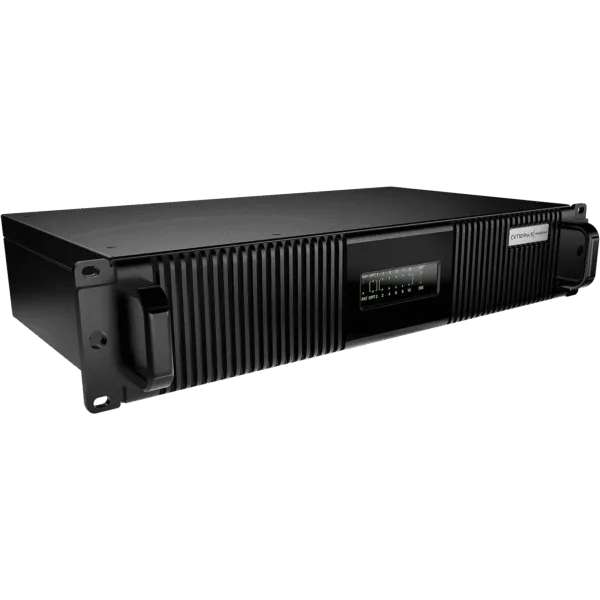

NovaStar – CVT10 Pro-S

The CVT10 Pro fiber converter offers a way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED screen. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission. The CVT10 Pro adopts a dustproof and waterproof design. It can be mounted horizontally in a rack, or mounted onto a scaffold in a suspended way with truss clamps, which is easy, secure and reliable.

Kirjeldus

Features
Models include the CVT10 Pro-S (single-mode) and the CVT10 Pro-M (multi-mode).

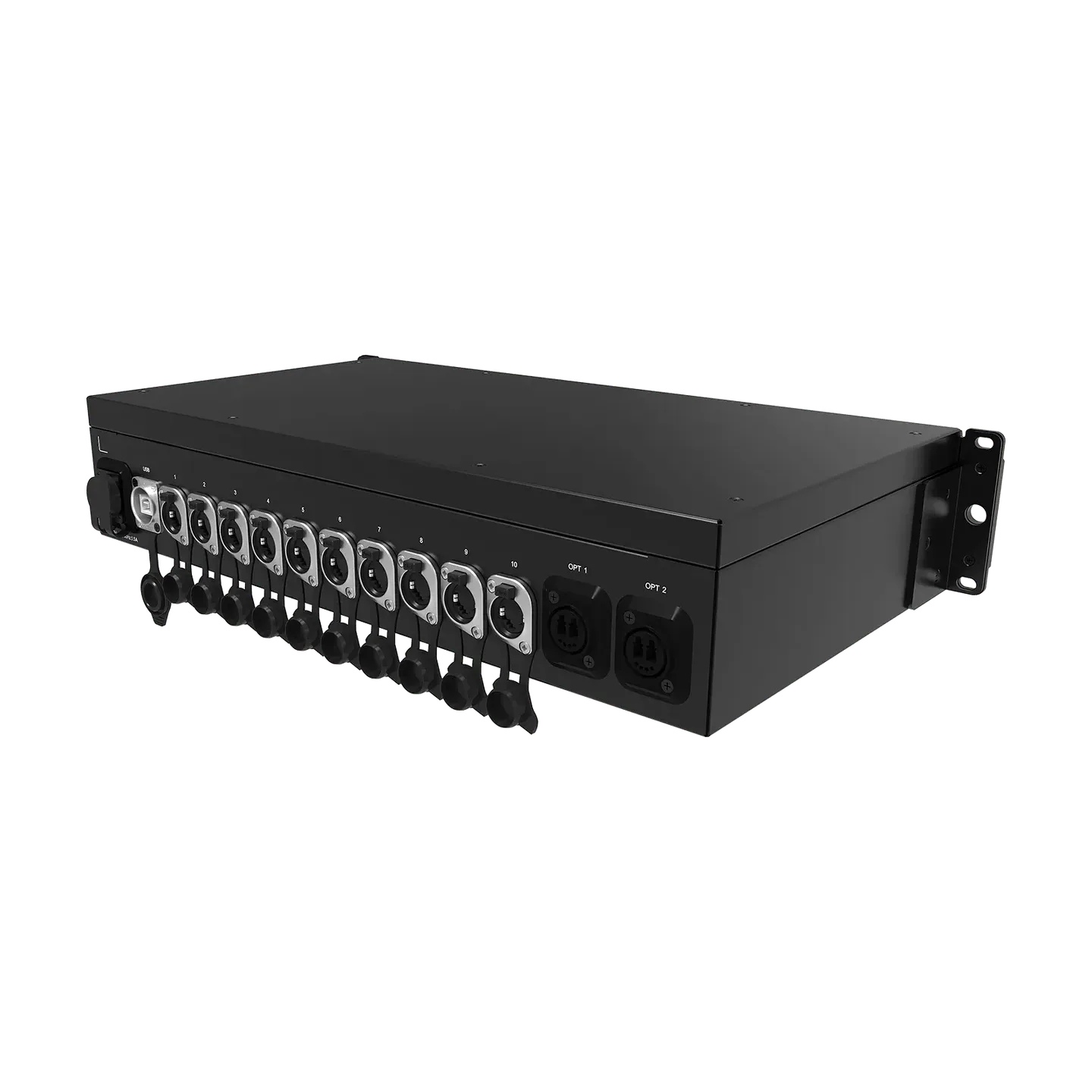

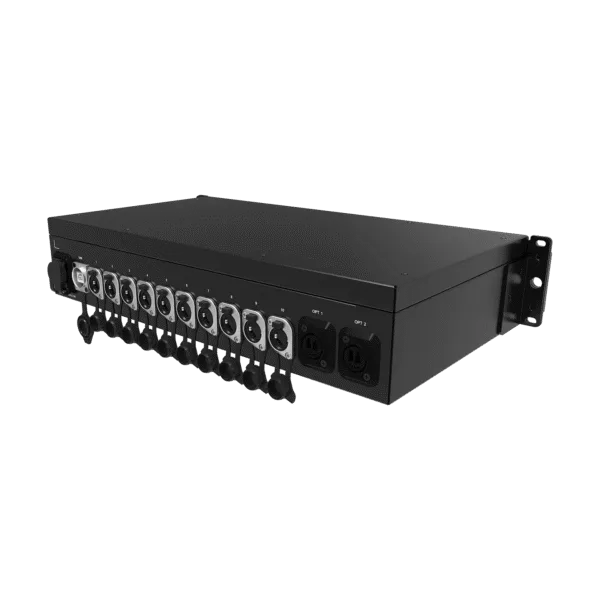

2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s
1x type-B USB control port
CVT10 Pro-S optical module description:
Hot swappable
Transmission rate: 9.95 Gbit/s to 11.3 Gbit/s
Wavelength: 1310 nm
Transmission distance: 10 km
CVT10 Pro-S optical fiber selection:
Model: OS1/OS2
Transmission mode: Single-mode twin-core
Cable diameter: 9/125 μm
Connector type: LC
Insertion loss: ≤ 0.3 dB
Return loss: ≥ 45 dB
Electrical Specifications
Power supply: 100-240V~, 50/60Hz, 1.5A
Rated power consumption: 22 W
Operating Environment
Temperature: –20°C to +55°C
Humidity: 10% RH to 80% RH, non-condensing
Storage Environment
Temperature: –20°C to +70°C
Humidity: 10% RH to 95% RH, non-condensing
IP Rating
IP65
