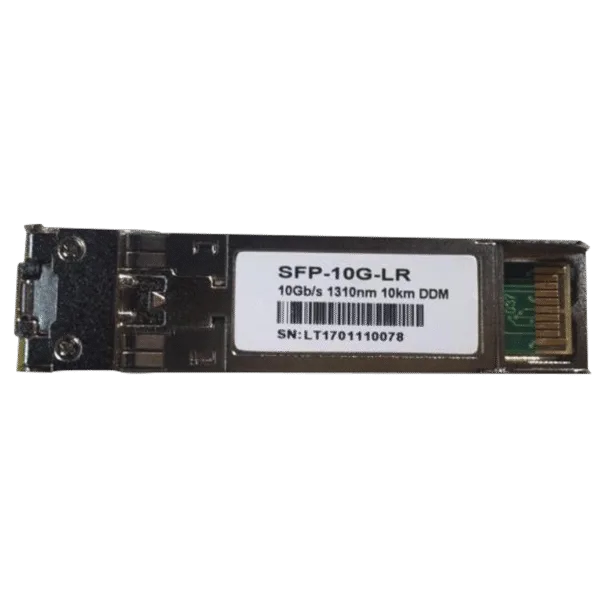

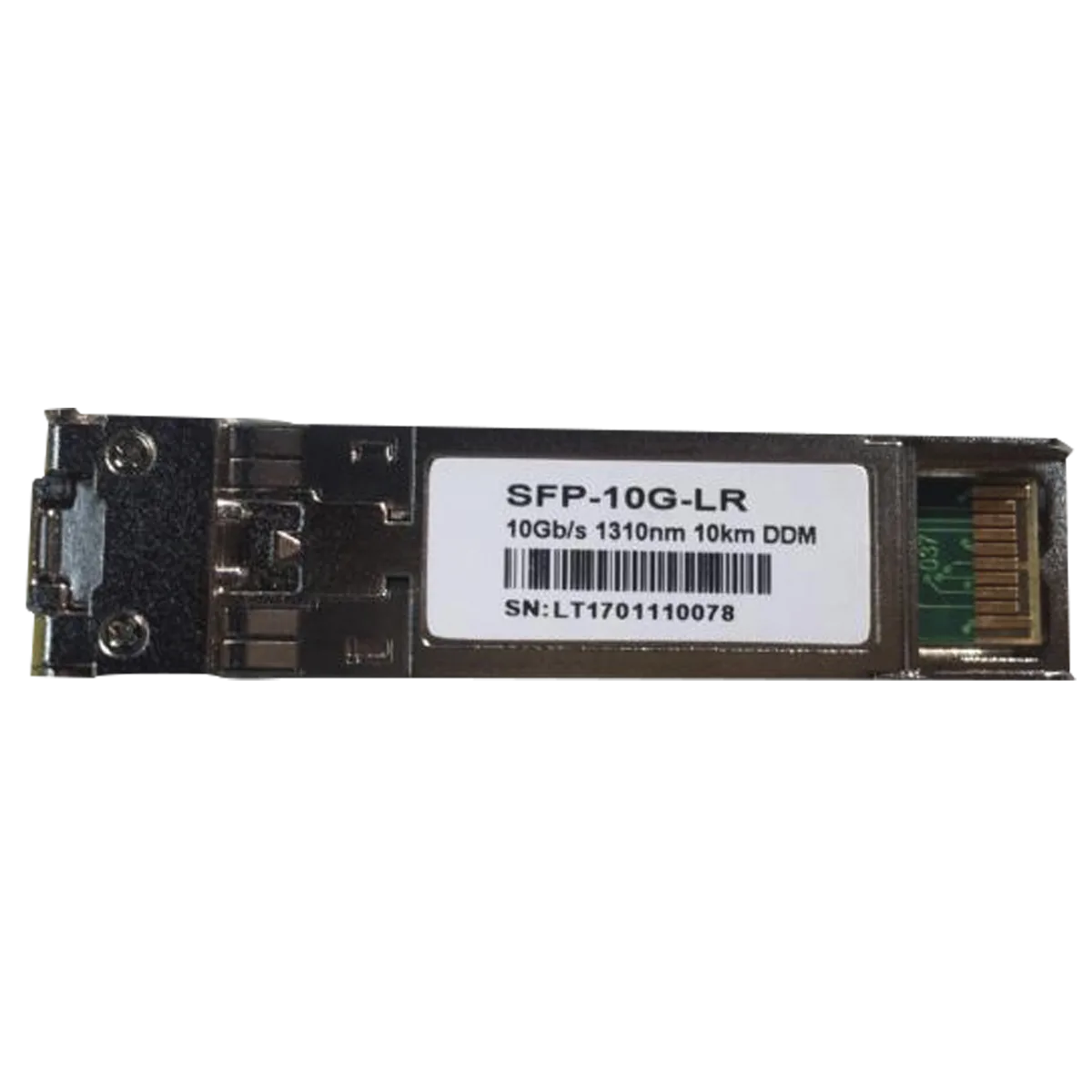

NovaStar – 10G SFP Module-S
The Novastar 10G SFP Module-SM transceiver can be used for all Novastar products which are equipped with SFP fibre port. Such as MCTRL 4 K / CVT4 KS / MCTRL 660PRO / R5 / Pro HD / UHD jr. / UHD. All SFP modules are equipped with LC connector, and therefore easy to combine with the Highlite fibre optic breakout cables and drums.
Kirjeldus
Features
LC-connector
Transfer up to 10 km
Supports 9.95 to 11.3 Gb/s bit rates
Hot-pluggable
Optical
SFP Module Fibre Connector Type: LC
Fibre Mode: Single-mode
Maximum Transmission Distance: 10000 m
Control and Programming
Control System: Novastar
Electrical Specifications and Connections
Power Supply: 3 V DC
Power Consumption: 1.5 W
Mechanical Specifications
Width (Without Handles): 14 mm
Height (Without Handles): 12 mm
Depth (Without Handles): 57 mm
Weight: 0.02 kg
IP Rating: IP20 (indoor use only)
Thermal Specifications
Maximum Ambient Temperature: 70 °C
Operating Humidity: 0-80 %rH
