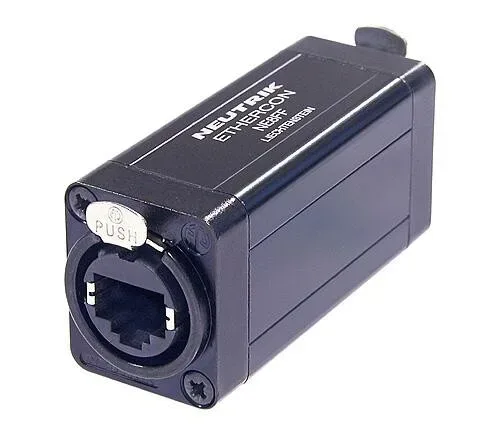

Neutrik NE8FF

EtherCON RJ45 feedthrough coupler for cable extensions.

  • Accommodates NE8MC* or any standard RJ45 plug
  • The adapter offers the approved latch lock system
  • The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications
Kategooriad: ,

Kirjeldus

Title NE8FF
Connection Type Adapter
Gender female
Electrical
Contact resistance < 10 mΩ
Dielectric strength 1 kVdc
Frequencyrange 1 – 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1,5 A
Rated voltage < 50 V
Standard compliance TIA/EIA 586B, IEC11801
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Latch lock
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Insert PBTP 15 % GR
Shell AlMgSi 0.5, black plated
Strain relief CuZn35Pb2, Tin plated
Environmental
Flammability UL 94 HB
Temperature range -30 °C to +80 °C
