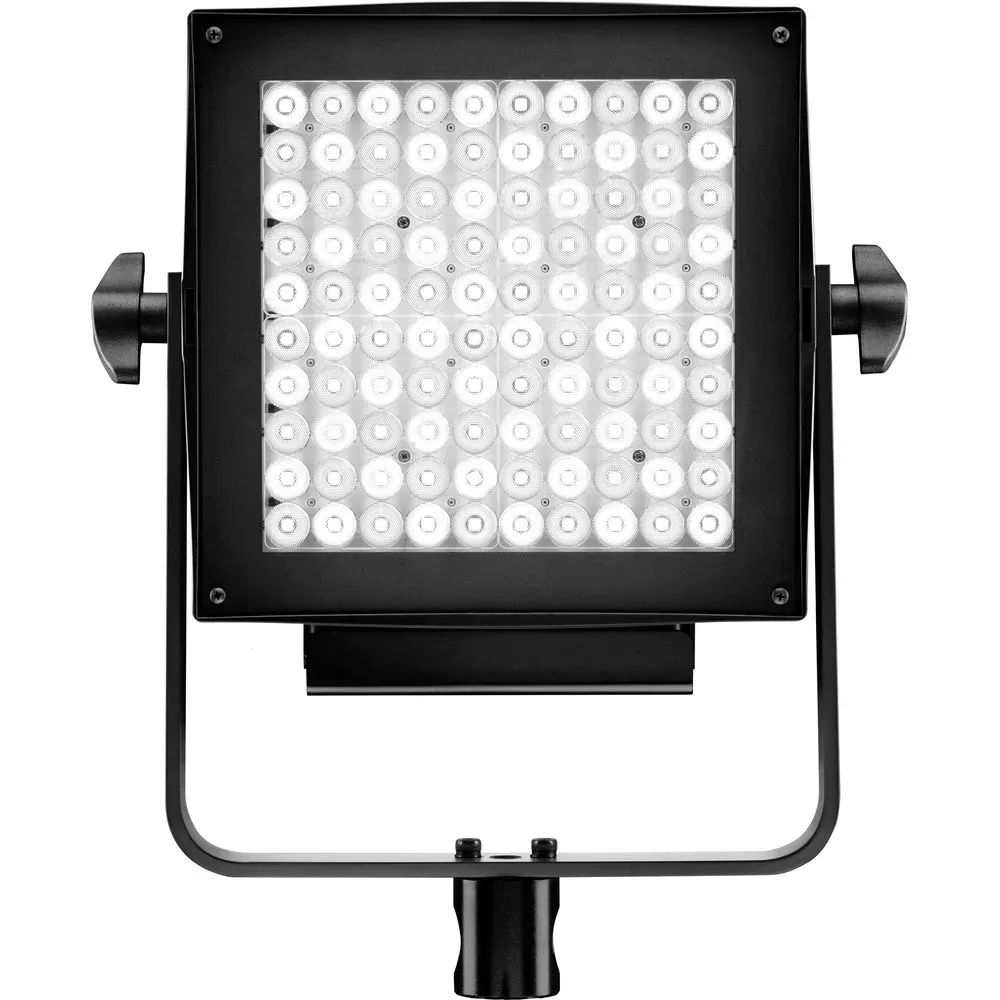

Lupo Actionpanel Full Color

Designed for maximum control and high output quality, the Actionpanel Full Color Hard LED Light Panel with Manual Yoke from Lupo has three color modes to satisfy the needs of the demanding user. RGBWW mode allows you to control red, green, blue, and white LEDs independently, making literally millions of colors accessible. HSI mode enables hue, saturation, and intensity of color control, while CCT mode offers color temperature control from a warm 2800K to an icy-blue 10,000K as well as magenta/green control. The realization of Lupo’s efforts is evident in the panel’s high CRI rating of 96—an indication of accuracy in color rendering. As a further measure of consistency, Lupo employs Linear, Exponential, and Logarithmic dimmer curves (0 to 100%) to ensure an accurate, repeatable output in response to the input signal. You can make these adjustments locally on the fixture or remotely thanks to onboard DMX and wirelessly via Bluetooth. Settings are displayed on the light’s digital screen. The menu features an extensive collection of preset filters, as well as special effects you can quickly use on the set.

An important benefit is the light’s power options. The Actionpanel Full Color is ready for worldwide use, thanks to the inclusion of a multi-voltage AC adapter, but it can also run on an optional V-mount battery for shooting in locations where mains power is unavailable.
Wide Range of Colors

The Actionpanel’s full-color range provides you with a selection of warm and cold white colors from 2800 to 10,000K with CRI96-rated accurate color rendering in all hues. Moreover, with Full Color (RGBWW) Technology, you can choose among millions of colors for your set and the creation of your content.
3 Color Modes

RGBWW: Allows you to control red, green, blue, and white LEDs independently.

HSI: Enables hue, saturation, and intensity of color control.

CCT: Offers color temperature control from 2800 to 10,000K, as well as magenta/green adjustment.
Linear, Exponential, and Logarithmic Dimmer Curves

Three dimmer curves for accurate, repeatable output in response to the input signal.

DMX Control

Make color temperature, light intensity, hue, and saturation adjustments locally on the fixture or remotely from a console via onboard DMX.

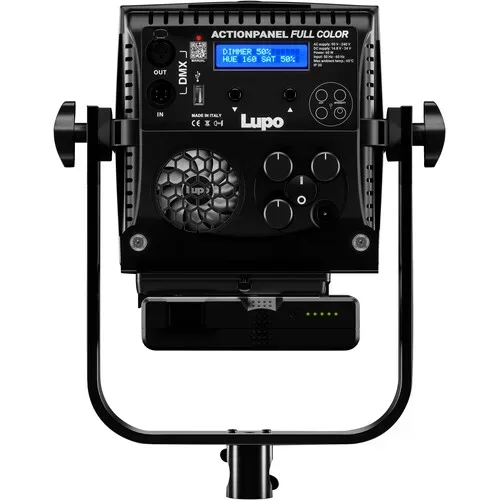

Battery or AC Option

The Actionpanel comes with a multi-voltage AC adapter for worldwide use, but you can also run the light with a separately purchased V-mount battery.

Intuitive Settings

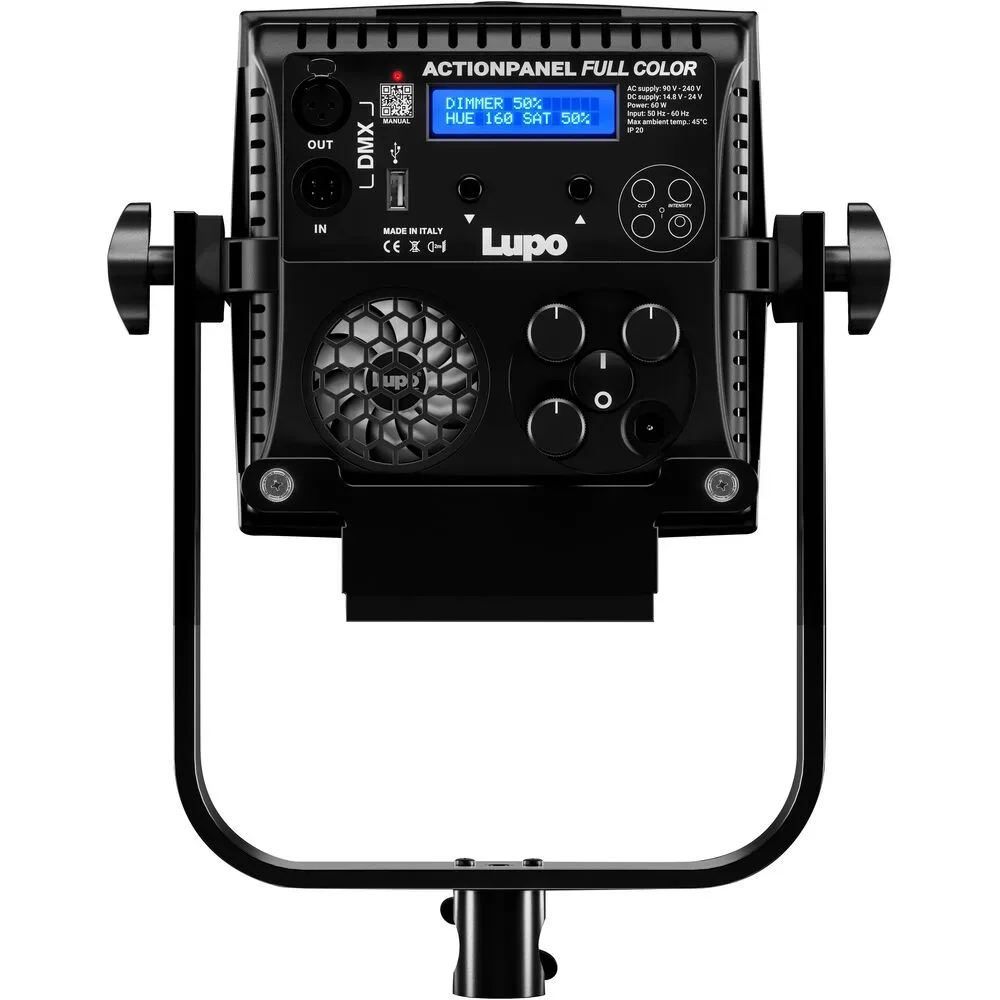

The digital display on the back of the Actionpanel Full Color allows you to see the settings for intensity, color temperature, color mode, green/magenta adjustments, dimmer curves, special effects, and DMX channels.

Presets and Special Effects

The Actionpanel Full Color features an extensive collection of preset filters and special effects you can quickly use on the set.

Kategooria: Foto- ja filmivalgustid

Kirjeldus
Lisainfo

Kirjeldus

Item Type: 1x LED Light Panel
Photometrics
3200K:
464 fc / 5000 Lux at 3.3′ / 1 m
464 fc / 5000 Lux at 9.8′ / 3 m
18 fc / 200 Lux at 16.4′ / 5 m
5600K:
557 fc / 6000 Lux at 3.3′ / 1 m
57 fc / 620 Lux at 9.8′ / 3 m
21 fc / 230 Lux at 16.4′ / 5 m
Color Temperature: 2800 to 10,000K
Color Modes: RGB, Daylight, Tungsten
Color Accuracy Standard: CRI 96; TLCI 98
Dimming
Built-In Dimmer: 0 to 100%
Front Accessory Mount: Proprietary
Wireless Remote Control Type: Bluetooth
Power Source
AC to DC Adapter
Battery : 1x D-Tap Rechargeable, 14.8 VDC
AC Input Power: 90 to 240 VAC, 50 / 60 Hz
DC Input Power: 14.8 to 24 VDC
Power Consumption: 60 W
Fixture Mounting: 1x 5/8″ Receiver (Via Yoke Mount)
Light Fixture
Item Type: 1x LED Light Panel
Photometrics
3200K:
464 fc / 5000 Lux at 3.3′ / 1 m
464 fc / 5000 Lux at 9.8′ / 3 m
18 fc / 200 Lux at 16.4′ / 5 m
5600K:
557 fc / 6000 Lux at 3.3′ / 1 m
57 fc / 620 Lux at 9.8′ / 3 m
21 fc / 230 Lux at 16.4′ / 5 m
Color Temperature: 2800 to 10,000K
Color Modes: RGB, Daylight, Tungsten
Color Accuracy Standard: CRI 96, TLCI 98
Dimming
Built-In Dimmer: 0 to 100%
Cooling System: Fan
Expected Lamp Life: 50,000 Hours
Beam Angle: 40°
Built-In Flash: No
Umbrella Mount: No
Front Accessory Mount
Proprietary: Connectivity
Wireless Remote Control Type: Bluetooth
Mobile App Compatible: Yes: Android & iOS
App Name: Lupo Link
Functionality: Remote Control
Power & I/O
Power Source: AC to DC Adapter
Inputs/Outputs:
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x Barrel / Coax Battery/Power Input
1x USB-A Service Input
Power Pass-Thru: No
Power Consumption: 60 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting: 1x 5/8″ Receiver (Via Yoke Mount)
Environmental
Environmental Protection: No
Operating Temperature: 14 to 113°F / -10 to 45°C
General
Display: Yes
Materials: Polymer (Housing)

Lisainfo

Kaal	4.5 kg
Mõõtmed	26.1 × 26.1 × 12.5 cm
