Luminex | GigaCore 20t -16x1G – 4x10G(SFP+) – PoE++

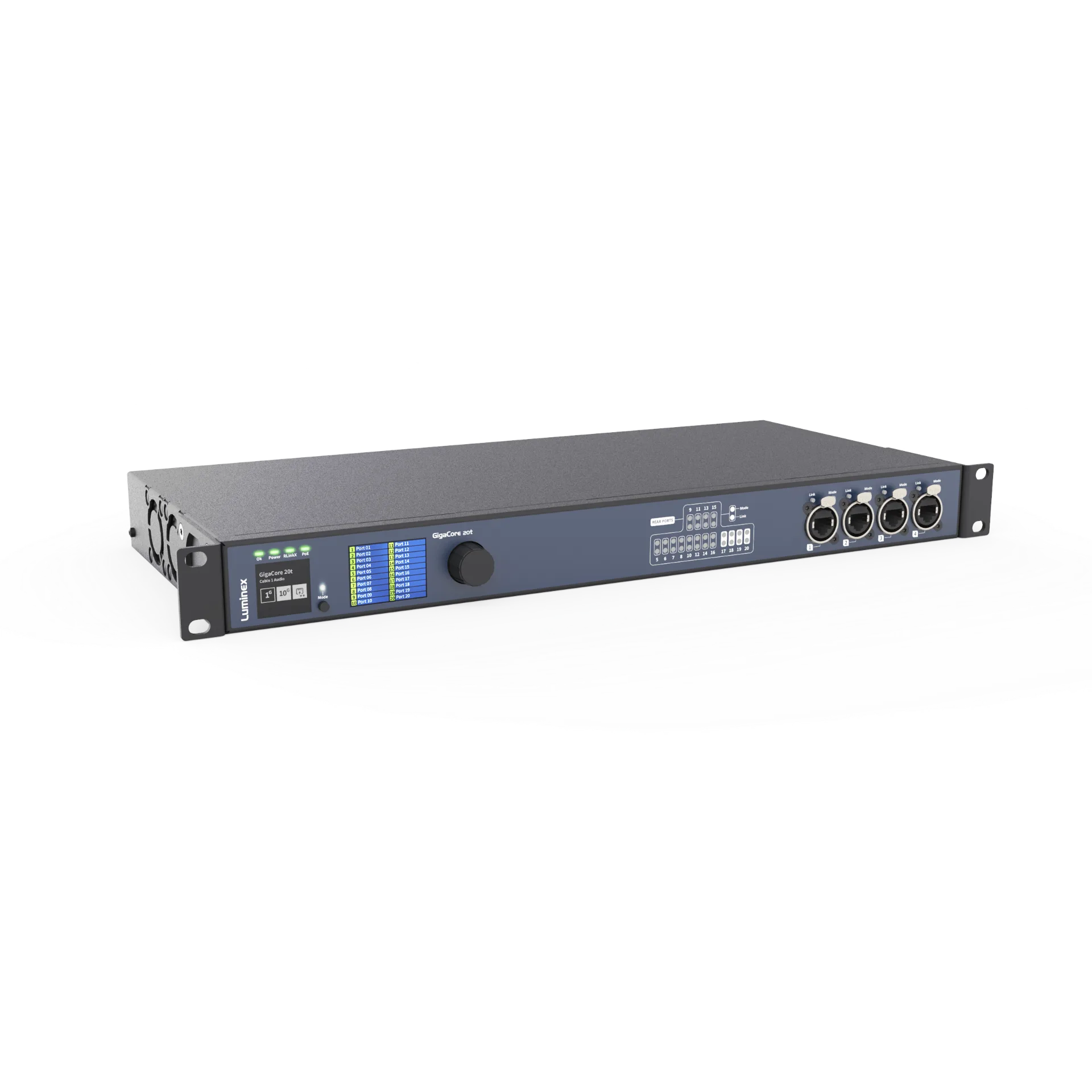

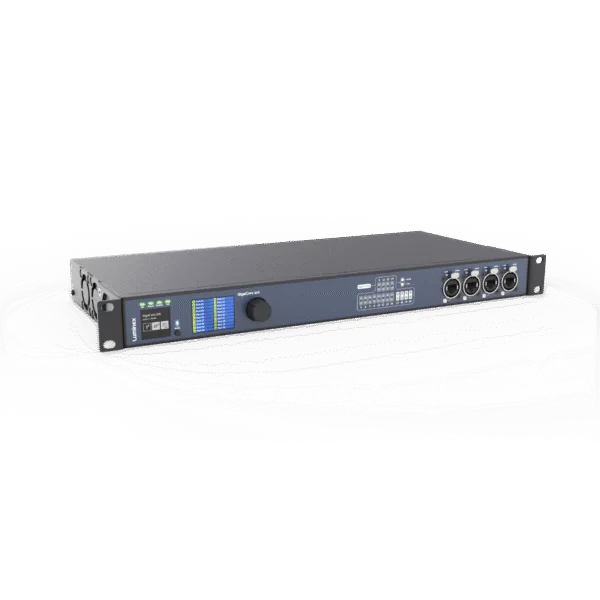

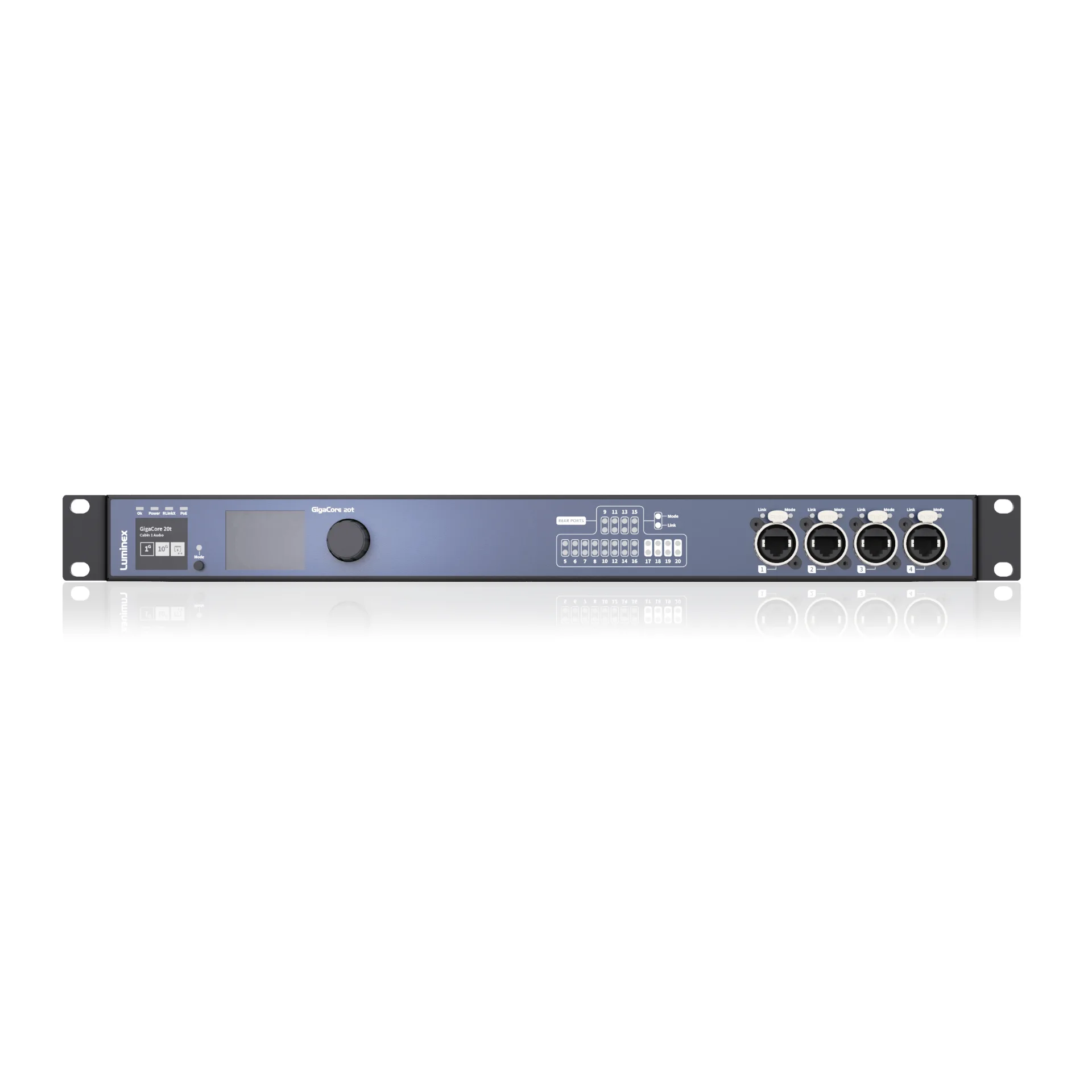

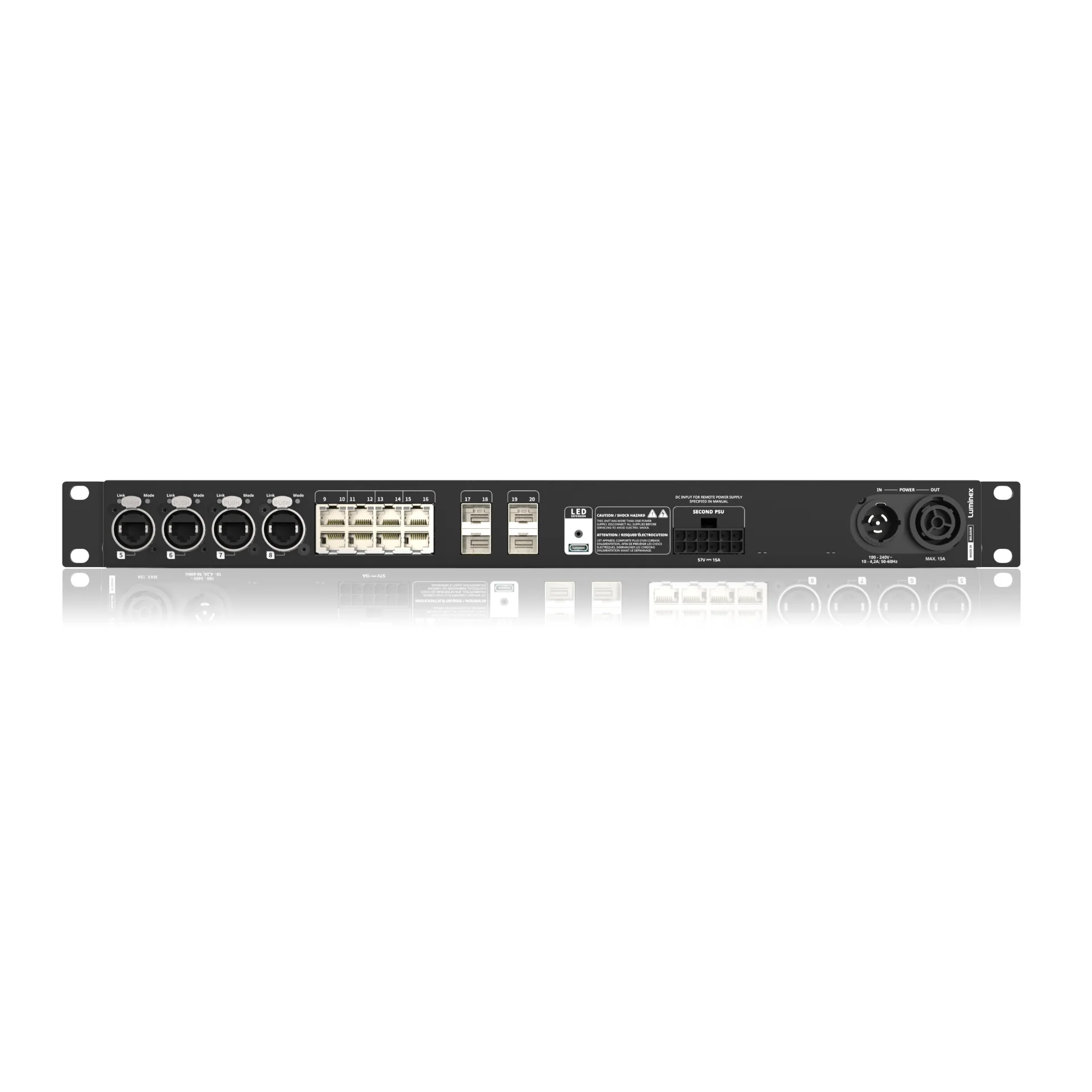

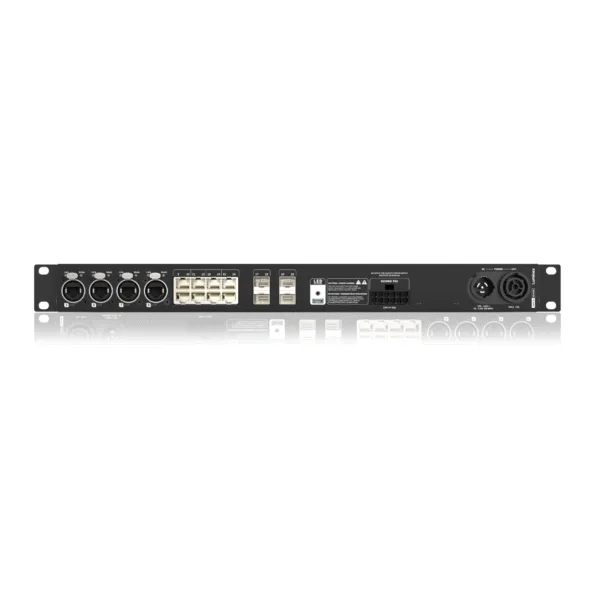

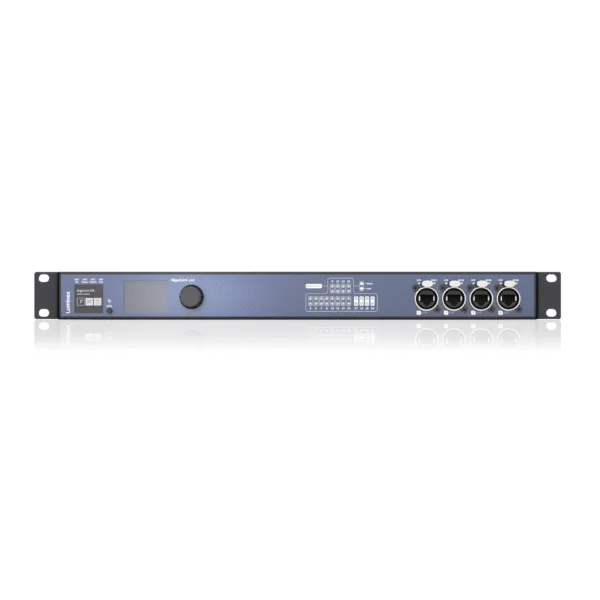

The GigaCore 20t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary. It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
Robust yet silent design
A robust yet silent design allows you to use GigaCore in any AV environment. Fans are speed controlled to have minimal noise impact and guarantee a long-life operation. This allows you to place the GigaCore in the most quiet environments like theaters and studio’s.
Kirjeldus
Key features
- Most suitable applications: Touring applications
- PoE: PoE++ Optional
- RLinkX (Link redundancy): Yes
- Groups (VLAN segmentation): Yes
- MultiLinkX (Link aggregation): Yes (With future FW upgrade)
- Profile manager: Yes
- Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
- MAC address table: 16384 entries
- Address learning / Aging: Self learning, Auto aging
- Switching throughput: 112Gbps
- Jumbo frames: MTU up to 12000
- IGMP support: Yes (V1/V2/V3)
- IGMP snooping: Yes, enabled by default
- Port sensing: Auto negotiation
- Auto crossover: MDI / MDIX
- Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
