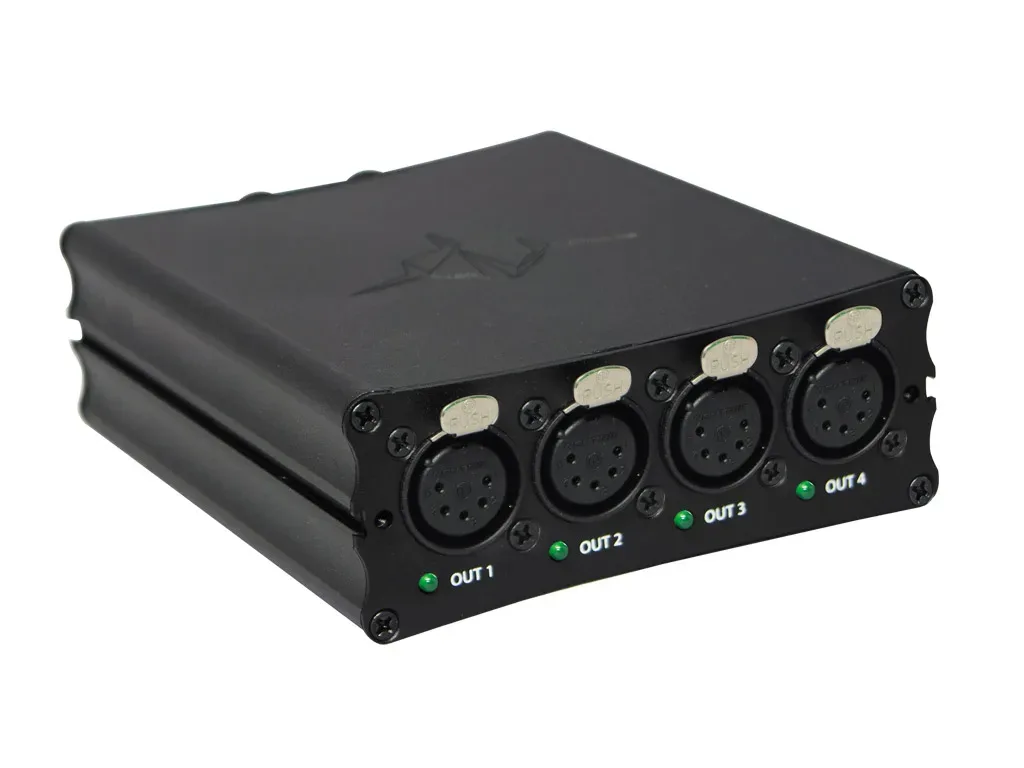

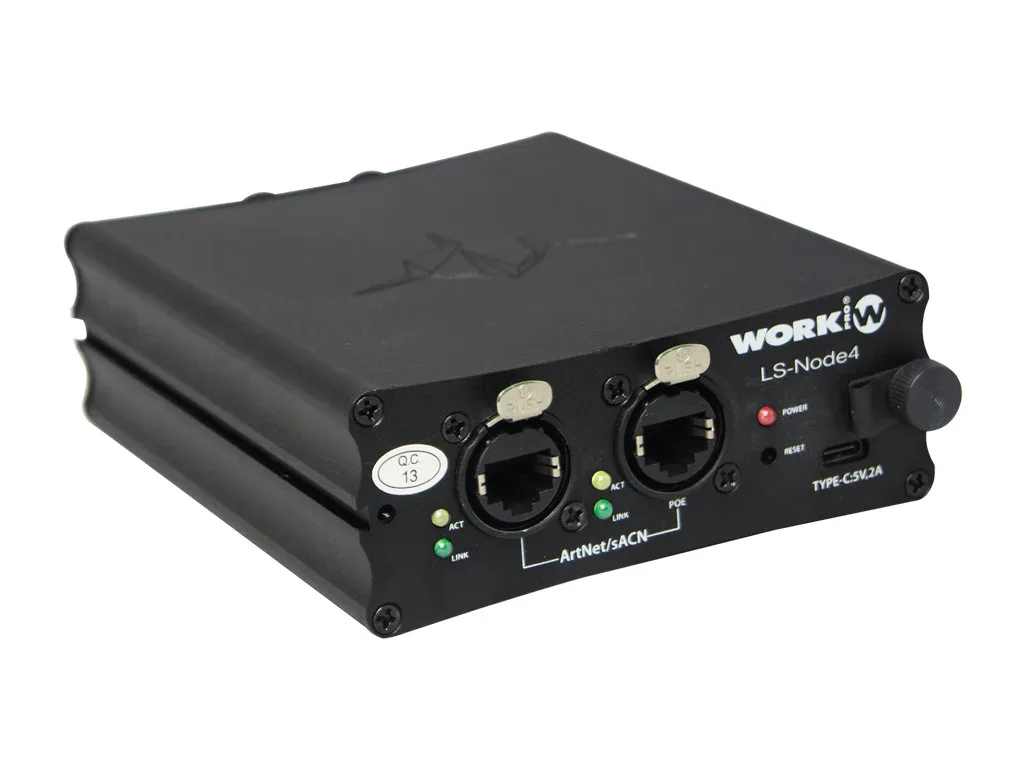

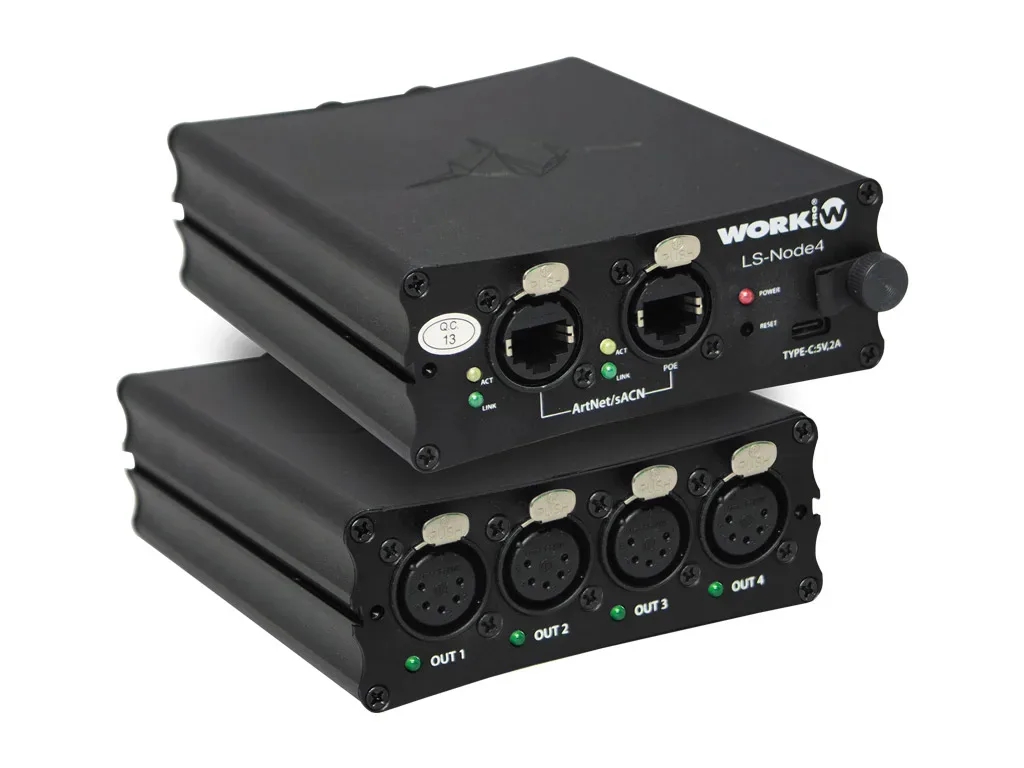

LS NODE4

Bidirectional 4-universe node.
The LS-Node series is the new range of DMX/RDM streaming devices supporting ArtNet and sACN industry standards. They can handle from 1 to 4 DMX universes depending on the model: LS-Node1, LS-Node2 or LS-Node4, fully configurable via webserver. All LS-Node devices have an integrated two-port Ethernet switch and are multiprotocol. It can be used as Single Mode (converter from DMX to ArtNet/sACN), Merger Mode (mixing of two universes via ArtNet/sACN or DMX in HTP/LTP mode), Backup Mode: (switches between two connected consoles in case of failure of the main one with a maximum latency of 3 seconds). ¼ rack format (LS-AR-19 accessory available). Powered via USB-C or PoE.

Kogus *

Kategooria:

Kirjeldus

Universes: 4 configurable
ArtNet: Yes
sACN: Yes
Pathport: No
Shownet No
Addressing Universes: Configurable via Web Server
Ip address: Configurable via Web Server
Net mask: Configurable via Web Server
Connections: LAN: 2 RJ45 (switch); DMX: 4 female XLR5
Operating modes Out: Single, HTP, LTP (por universo); In: Normal, Backup
Frame control: Sí / Frecuency
Compatible accessories: Installation accessory LS AR 19 (up to 4 devices)
Indicators: Power LED; Activity indicator and Link through LAN
Power supply: 5 V, 2 A (USB-C or PoE)

Lisainfo

Kaal 0.4 kg
Mõõtmed 12.9 × 10.9 × 0.44 cm
