KV2 Audio EPAK2500

Control of Your ES System.

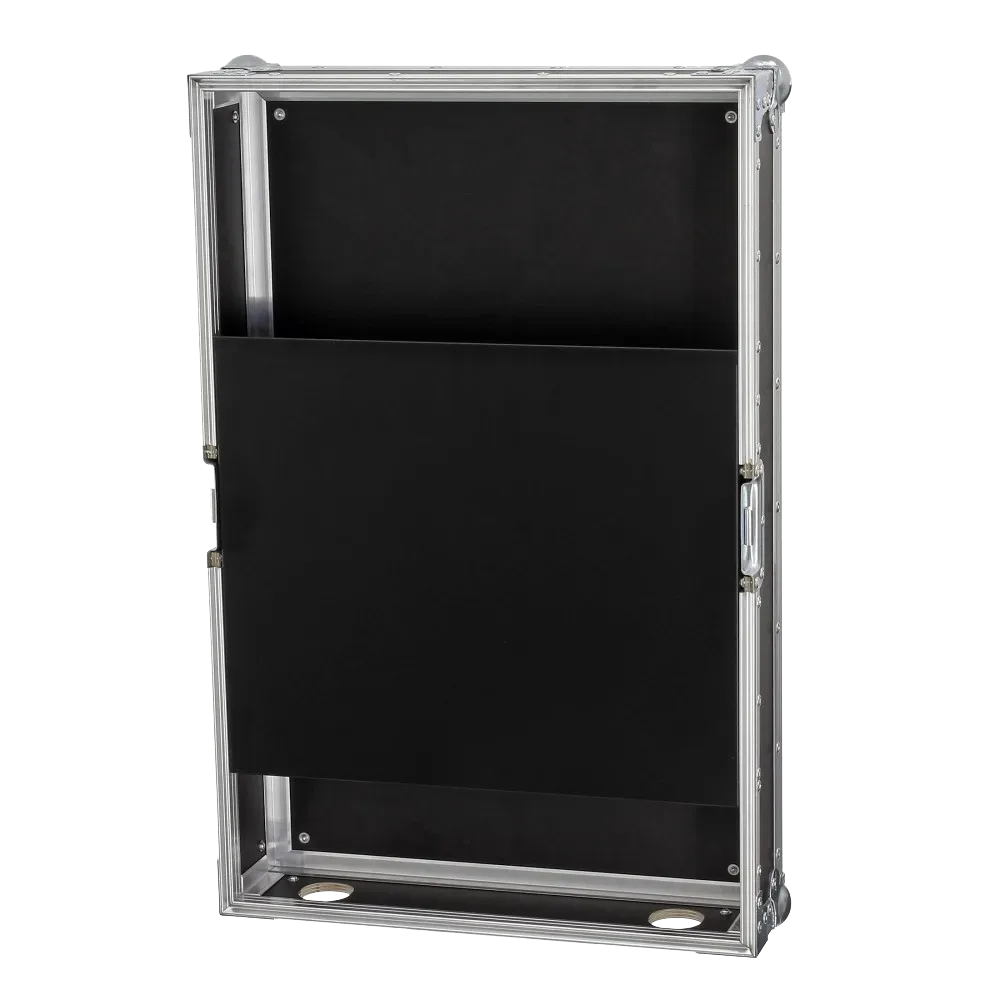

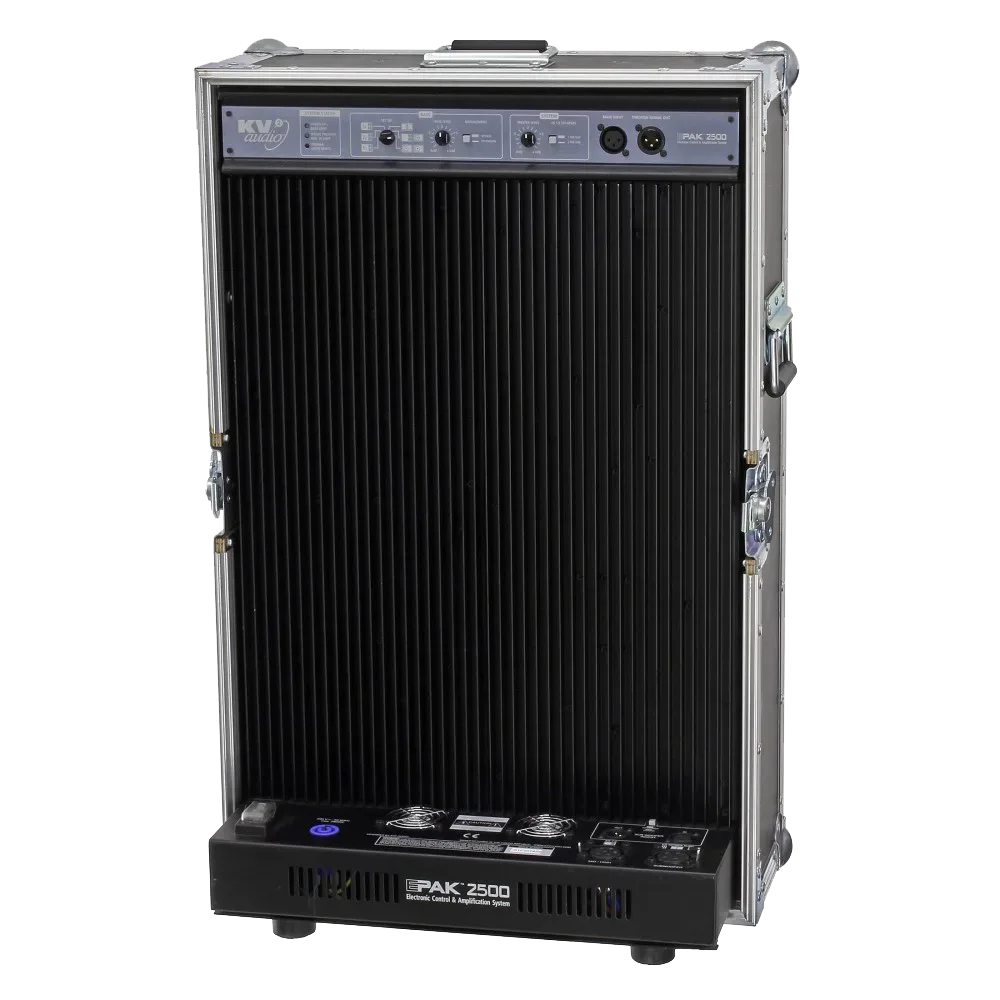

The EPAK2500 is a four-way, active control and amplification unit specifically designed for the ES Series modular loudspeaker system. It not only houses all signal processing and four individual amplifiers but also controls the allocation of power depending on the number of bass modules employed. The EPAK2500 is enclosed in a road-rugged case with side handles and a built in cable storage compartment. Easily transported on a trolley this unique amplification system has its electronics mounted on an independent suspension system that isolates it from the shocks and impacts typically encountered on the road. A large aluminum heat sink provides passive cooling along with two demand-sensitive fans for added reliability.

Kogus *

Tootekood: KVV 987 001 Kategooria:

Kirjeldus

High Frequency Amplifier Specification
Type Class AB Push-Pull low intermodulation Mosfet design with
transformer balanced output
Rated Continuous Power 100W
Distortion <0.05%
Operating Bandwidth 2.5kHz to 28kHz
Mid Frequency Amplifier Specification
Type Class AB Push-Pull low intermodulation Mosfet design with
transformer balanced output
Rated Continuous Power 200W
Distortion <0.05%
Operating Bandwidth 500Hz to 2.5kHz
Mid-Bass Frequency Amplifier Specification
Type High efficiency, Low frequency,
Current-enhancing switch mode
Rated Continuous Power 600W
Distortion <0.05%
Operating Bandwidth 130Hz to 500Hz
Low Frequency Amplifier Specification
Type High efficiency, Low frequency, Currentenhancing switch mode
Rated Continuous Power 1600W
Distortion <0.05%
Operating Bandwidth 20Hz to 130Hz
Signal Input
Input Sensitivity 1.0V RMS
Input Impedance 20kΩ (balanced)
Speaker Output
Speaker Output AP6 (Mid-Hi), AP4 (Sub)
Power
Power Connector Neutrik PowerCon®
Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz |
225 to 260V@50Hz
Recommended Amperage 20A 115V | 10A 230V | 10A 250

Lisainfo

Kaal 32 kg
Mõõtmed 47.8 × 30.5 × 71.9 cm
