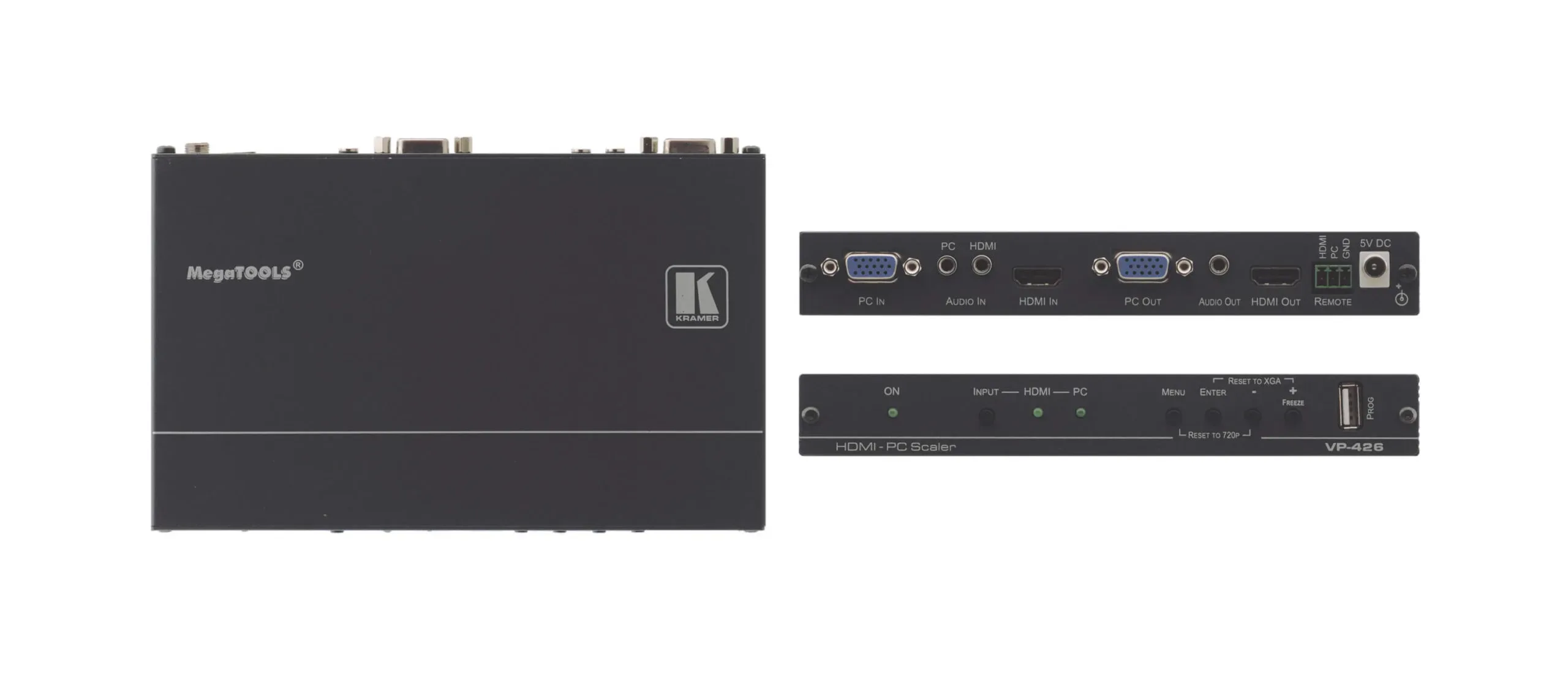

Kramer VP-426

The VP−426 is a high−performance digital scaler for computer graphics/HDTV and HDMI signals. The unit up− or down−scales computer graphics and HDTV signals to resolutions of up to WUXGA and 1080p.

  •  Inputs — RGBHV, YPbPr or HDMI.
  •  Outputs — RGBHV and HDMI simultaneously.
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  Input Auto–Scanning.
  •  EDID Capture — Copies and stores the EDID from a display device.
  •  Analog/Embedded Audio Support.
  •  Built–In ProcAmp — Color, hue, sharpness, contrast, and brightness controls.
  •  Control — Front panel, OSD (on screen display), contact closure.
  •  Non–Volatile Memory — Saves final settings.
  •  Freeze Button.
  •  Contact Closure — For remote switching of sources.
  •  USB Port — For upgrading firmware.

Kogus *

Kategooria:

Kirjeldus

Interfaces
Outputs: 1 PC (RGBHV) on a 15–pin HD connector, 1 HDMI connector, 1 unbalanced stereo audio connector on a 3.5mm mini jack
Input resolutions:
Component: 480i, 576i, 480p, 576p, 720p@60Hz, 720p@50Hz, 1080i@60Hz, 1080i@50Hz, 1080p@60Hz, 1080p 50Hz, 1080p@24Hz, 1080p@25Hz, 1080p@30Hz
PC: VGA@60Hz, VGA@67Hz, VGA@72Hz, VGA@75Hz, VGA@85Hz, SVGA@56Hz, SVGA@60Hz, SVGA@72Hz, SVGA@75Hz, XGA@60Hz, XGA@70Hz, XGA@75Hz, SXGA@60Hz, SXGA@75Hz, 1280X960@60Hz, 1280X720@60Hz, 1920X1080@60Hz, 1600X1200@60Hz (UXGA), 1280×800@60Hz (WXGA), 1440×900@60Hz (WXGA+), 1366×768@60Hz (WXGA), 1400×1050@60Hz (SXGA+), 1680×1050@60Hz RB (WSXGA), 1920×1200@60Hz RB (WUXGA)
HDMI: 480i, 576i, 480p, 576p, 720p@60Hz, 720p@50Hz, 1080i@60Hz, 1080i@50Hz, 1080p@60Hz, 1080p@50Hz, 1080p@24Hz, 1080p@25Hz , 1080p@30Hz, VGA@60Hz, VGA@67Hz, VGA@72Hz, VGA@75Hz, VGA@85Hz, SVGA@56Hz, SVGA@60Hz, SVGA@72Hz, SVGA@75Hz, XGA@60Hz, XGA@70Hz, XGA@75Hz, SXGA@60Hz, SXGA@75Hz, 1280X960@60Hz, 1280X720@60Hz, 1920X1080@60Hz, 1600X1200@60Hz (UXGA), 1280×800@60Hz (WXGA), 1440×900@60Hz (WXGA+), 1366×768@60Hz (WXGA), 1400×1050@60Hz (SXGA+), 1600X900@60Hz RB, 1680×1050@60Hz RB (WSXGA), 1920×1200@60Hz RB (WUXGA)
Output resolutions:
NATIVE, 480i, 480p, 720p@60Hz, 1080i@60Hz, 1080p@60Hz, 576i, 576p, 720p@50Hz, 1080i@50Hz, 1080p@50Hz, 640×480, 800×600, 1024×768, 1280×1024, 1600×1200, 1366×768, 1680×1050, 1920×1200, 1280×800, 1440×900, 1400×1050, 1600×900
Output refresh rate: 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
Video latency:
Progressive input: 30ms (approx.)
interlaced input: 50ms (approx.)
Transmission
Controls: Front panel buttons, 1 remote contact closure on a 3–pin terminal block connector, 1 USB for programming
Indicators: ON, HDMI and PC LEDs
Power
Power consumption: 5V DC, 1.1A
Operating temperature: 0° to +40°C (32° to 104°F)
Storage temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
General
Dimensions: 19.00cm x 11.60cm x 2.70cm  W, D, H
Weight: 0.5kg (1.0lbs) approx.
