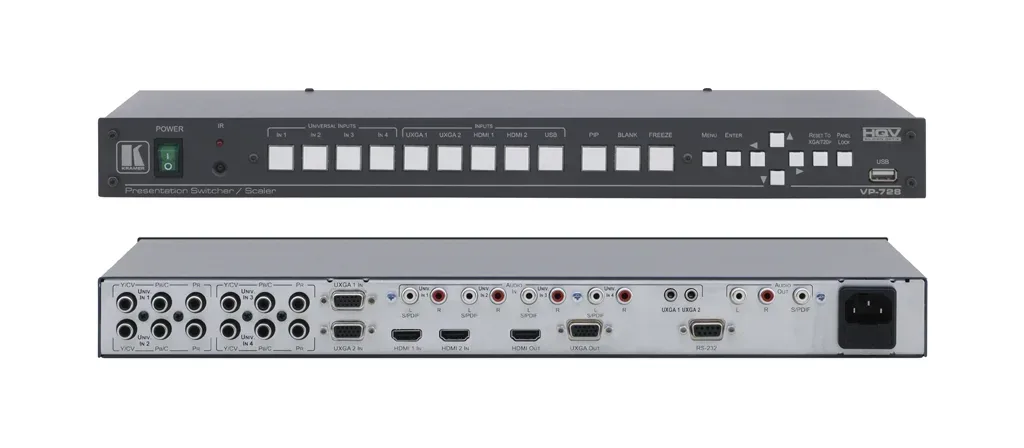

Kramer VP-728

The VP−728 is a 9−input scaler/switcher for analog and digital video, unbalanced stereo, and S/PDIF audio signals. It up− or down−scales any video signal: composite, s−Video (Y/C), component video (YUV), HDMI, computer graphics video and JPEG files to a selectable graphics or HDTV output resolution via identical HDMI or 15−pin HD outputs. It provides glitch−free switching between sources through FTB™ (fade−thru−black) switching technology.
Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging.
Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for projection purposes.

Kogus *

Kategooriad: ,

Kirjeldus

Inputs:
4 universal Y/CV, Pb/C, Pr (composite, s−Video and component) 1 Vpp/75Ω on RCA connectors;
2 UXGA on a 15−pin HD connector (VGA through UXGA);
2 HDMI connectors;
1 USB connector;
For each universal input there is a corresponding (unbalanced) audio stereo input (1V nom./25kΩ minimum) and digital stereo S/PDIF input (32kHz to 96kHz sample frequency/75Ω) on RCA connectors;
For each UXGA input there is a corresponding (unbalanced) audio stereo input on a 3.5mm mini jack connector.
Outputs:
1 HDMI connector;
1 UXGA format on a 15−pin HD connector;
1 unbalanced audio stereo output (1V nom./50Ω) on RCA connectors;
1 digital stereo S/PDIF output (32kHz to 96kHz sample frequency/75Ω) on an RCA connector.
Compliance with HDMI Standard:
Supports HDMI and HDCP.
Output resolution:
Native HDMI, 640x480x60Hz, 640x480x75Hz, 800x600x50Hz, 800x600x60Hz, 800x600x75Hz, 1024x768x50Hz, 1024x768x60Hz, 1024x768x75Hz, 1280x768x50Hz, 1280x768x60Hz, 1280x720x60Hz, 1280x800x60Hz, 1280x1024x50Hz, 1280x1024x60Hz, 1280x1024x75Hz, 1366x768x50Hz, 1366x768x60Hz, 1400x1050x50Hz, 1400x1050x60Hz, 1600x1200x50Hz, 1600x1200x60Hz, 1680x1050x60Hz, 1920x1080x60Hz, 1920x1200x60Hz, 480px60Hz, 576px60Hz, 720px50Hz, 720px60Hz, 1080ix50Hz, 1080ix60Hz, 1080px50Hz, 1080px60Hz, 720x480x59.94Hz, 1280x720x59.94Hz, 1920x1080ix59.94Hz, 1920x1080x23.98Hz, 1920x1080x29.97Hz, 1920x1080x59.94Hz or custom.
Control:
Front panel buttons/OSD, IR remote control, RS−232 on a 9−pin D−sub connector.
