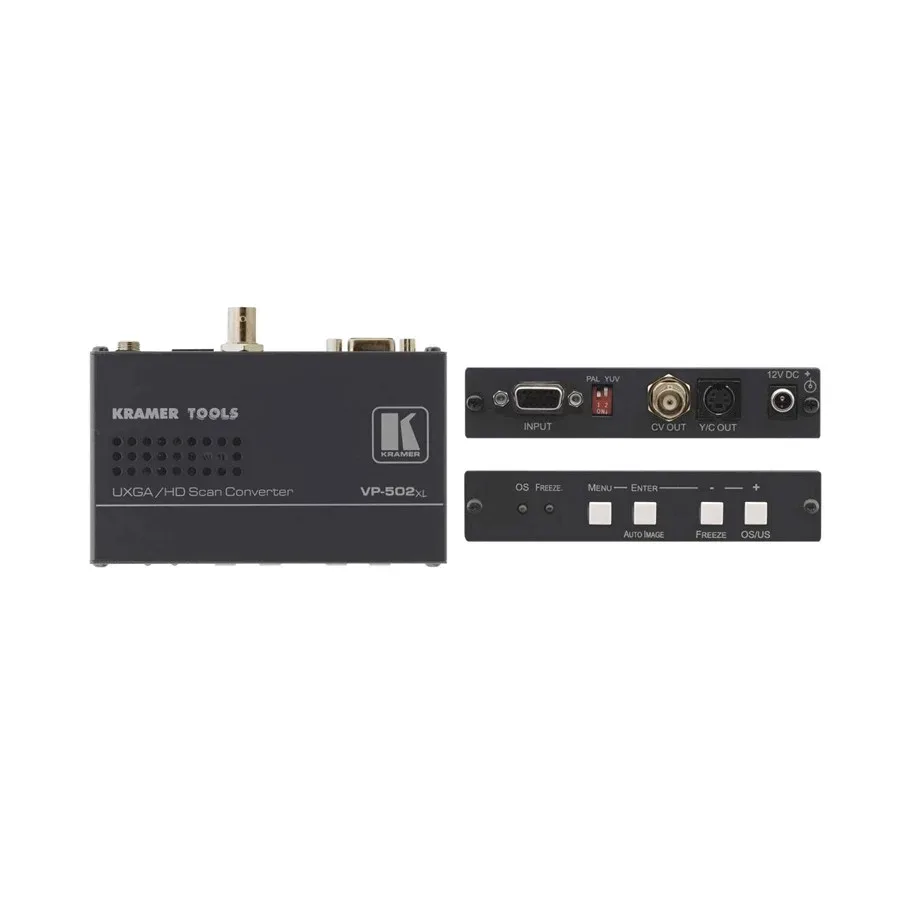

Kramer VP-502XL

The VP-502xl is a scan converter for computer graphics video and HDTV signals.
It converts computer graphics video signals up to UXGA (1600×1200) or component
HDTV signals up to 1080i to composite and s-Video (Y/C) signals simultaneously in either PAL or NTSC formats.

Kogus *

Kategooria:

Kirjeldus

Interfaces
Input: 1 UXGA, analog component HD (480p, 720p, 1080i) on a 15−pin HD (F) connector.
Outputs: 1 composite video, 1Vpp/75Ω on a BNC connector; 1 Y/C (s−Video), 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on a 4−pin connector.
Output standard: PAL, NTSC (user−selectable).
Max output level: 1Vpp.
Input resolution: VGA up to UXGA, 480p, 576p, 1080i (1080i does not support 50Hz).
Transmission
Signal-to-Noise Ratio: 49dB.
Controls: Front panel and OSD: ProcAmp video controls, freeze, underscan/overscan, auto−image, 8 color bars.
Power
Power Consumption: 12V DC, 270mA.
General
Dimensions 12cm x 7.5cm x 2.5cm W, D, H.
Weight: 0.3kg approx.
