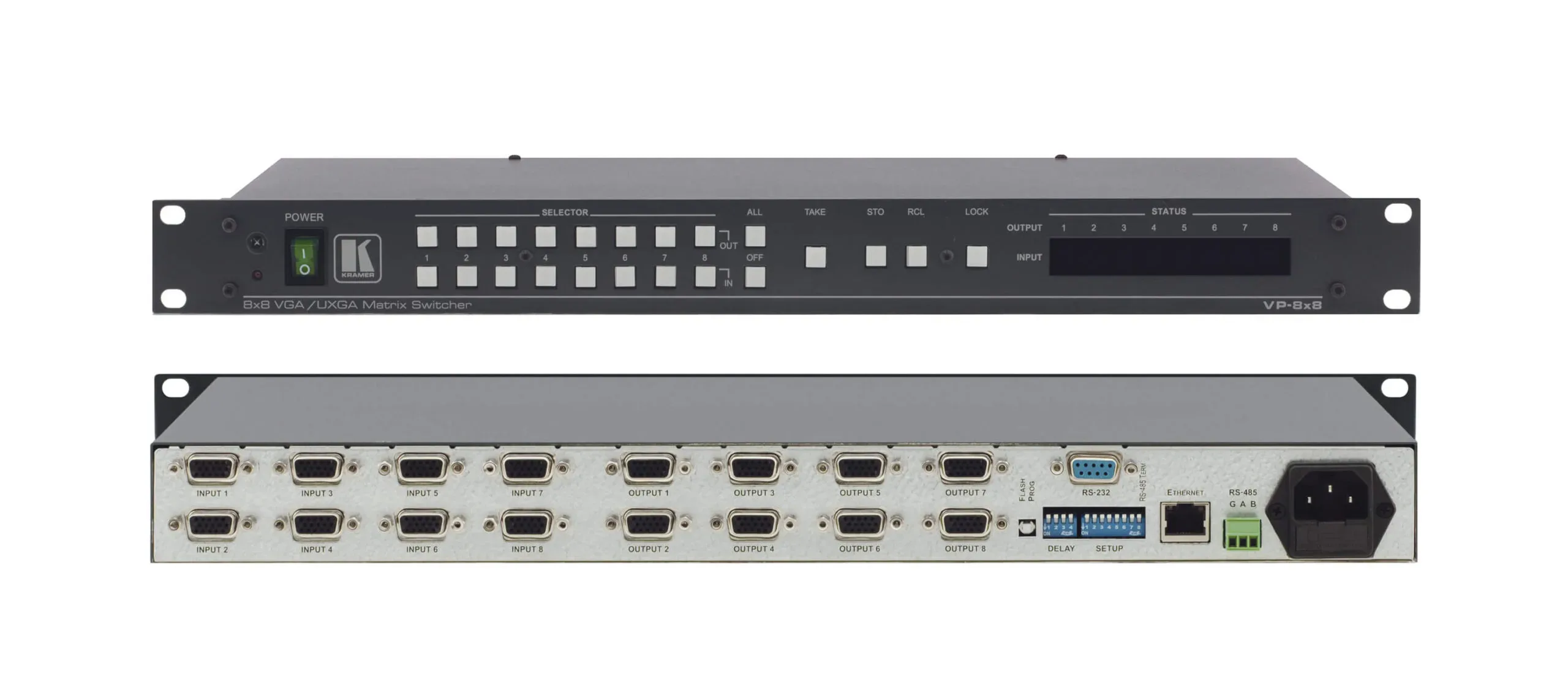

Kramer Presenthation 8×8 Computer Graphics Video Matrix Switcher

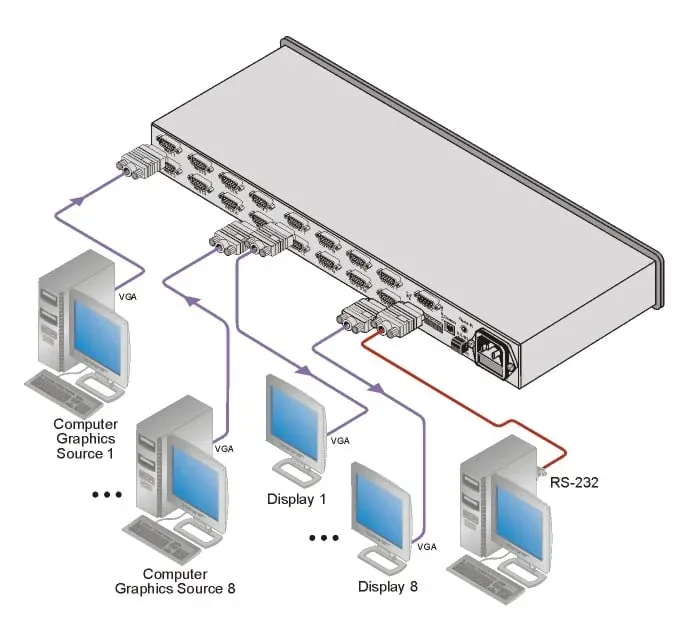

The VP-8×8 is a high-performance matrix switcher for computer graphics video signals, with resolutions up to and exceeding UXGA on 15-pin HD connectors. It can route any or all inputs to any or all outputs simultaneously.
Kirjeldus
Interfaces
Input: 8 VGA on 15–pin HD connectors (VGA through UXGA)
Outputs: 8 VGA on 15–pin HD connectors (VGA through UXGA)
Max. Outputs level: 1.5Vpp
Transmission
Bandwidt: (-3DB) 400MHz
Diff. gain: 0.04%
Diff. phase: 0.04Deg
K-Factor: <0.05%
S/N Ratio: 5dB
Crosstalk (all hostile): –53dB
Coupling DC
Controls: 22 front panel buttons, RS–232, RS–485, Ethernet
Indicators: 8–character display on the front panel
Power
Power Consumption: 100–240V AC, 50/60Hz, 23VA
Included Accessories: power cord, null–modem adapter, Windows®–based Kramer control software, RC–IR3 infrared remote control transmitter
Options: External remote IR receiver cable
General
Dimensions: 43.6cm x 18.30cm x 4.36cm W, D, H
Weight: 3.7kg approx.
