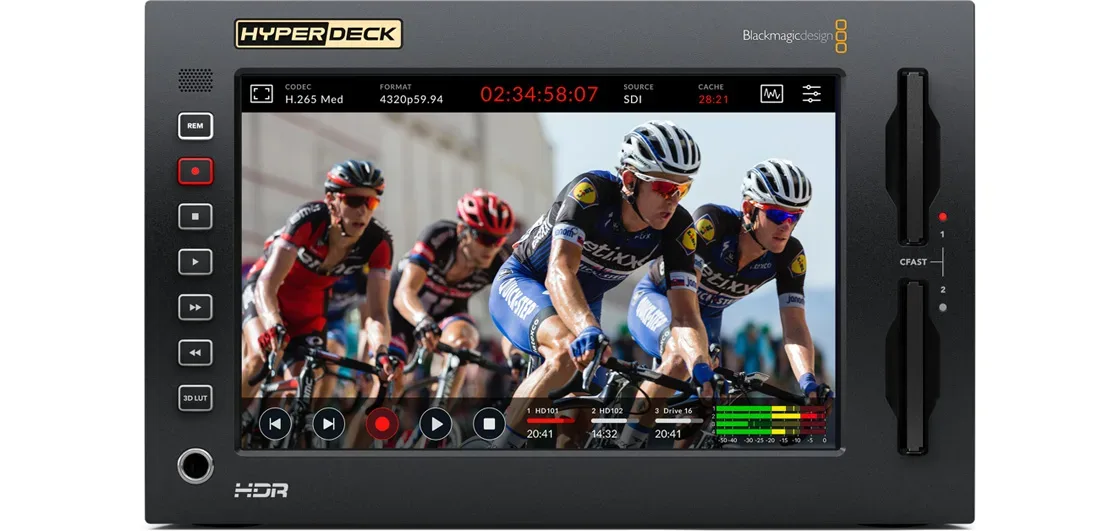

HyperDeck Extreme 8K HDR
8K resolutsiooni video salvestusseade.
Kirjeldus
Connections
SDI Video Inputs
4
SDI Video Outputs
5 (12G-SDI A,B,C,D and 3G-SDI Monitor Out)
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0 Video Inputs
1
HDMI 2.0 Video Outputs
1
Analog Video Inputs
1 x Component YUV on 3 BNCs,
1 x Composite NTSC/PAL on 1 BNC.
Analog Video Outputs
None
Analog Audio Inputs
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
Built in Speaker
Mono
Screen
7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
Timecode Connections
1 x XLR in and 1 x XLR out.
Reference Input
Tri-Sync or Black Burst.
SDI Audio Inputs
16 channels embedded audio.
SDI Audio Outputs
16 channels embedded audio.
HDMI Audio Inputs
8 channels embedded audio.
HDMI Audio Outputs
8 channels embedded audio.
Remote Control
1 x RS-422 In, 1 x RS-422 Out.
Recorder Configuration
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet
10Gb/s
External Recording
1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
Computer Interface
1 x USB-C for software updates.
