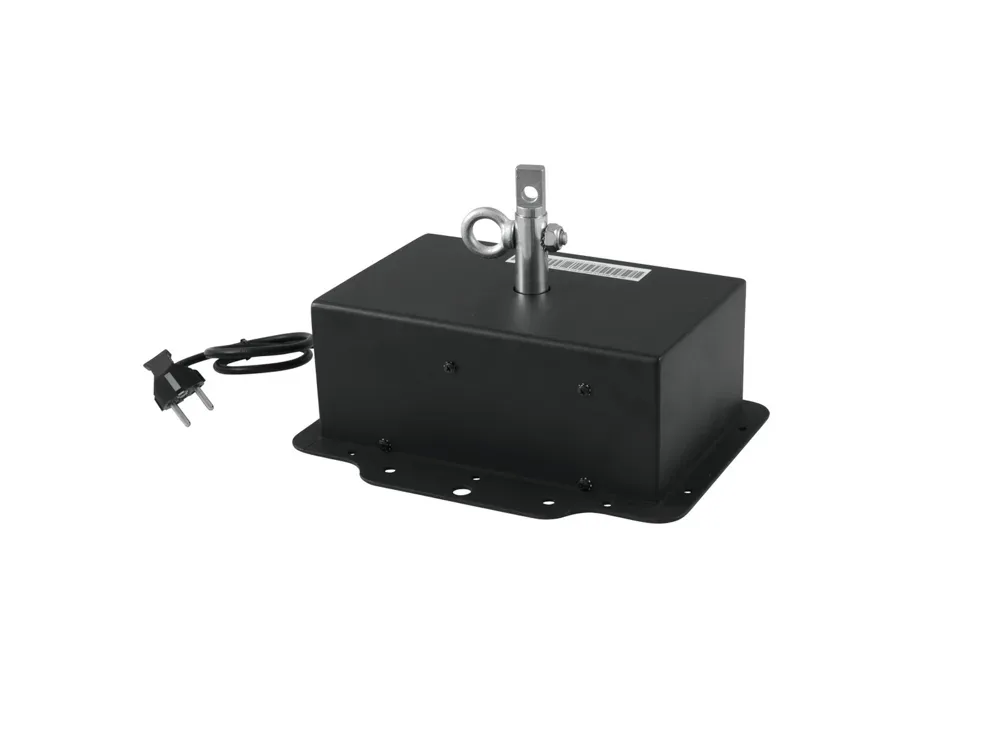

Eurolite MD-3030 DMX Mirror Ball Motor

DMX-Controlled mirror ball motorFor driving mirror balls up to a max. total weight of 40 kg. The max. load capacity always refers to the actual weight of the mirror ball incl. mirror ball chain, safety chain and fixing material.

  • Can be operated in stand-alone mode or via DMX interface
  • DMX512 control via any standard DMX controller possible (occupies 1 channel)
  • Direction of rotation
  • Rotation speed
  • Master/slave
  • Adjustment via DIP switch
  • 2 Chains and 4 quick connectors must be ordered separately
  • Ready for connection via mains cable with safety plug
  • For professional use, e.g. in discotheques and places of assembly, it is essential to comply with the provisions of BGV C1 (formerly VBG 70)
  • The motor must always be installed with a second, independent suspension system
  • The device must be inspected by an expert before it is put into operation for the first time

Kogus *

Tootekood: IDS0097877 Kategooriad: ,

Kirjeldus

  • Power supply: 230 V AC, 50 Hz
  • Power consumption: 16 W
  • Max. load WLL (4-fold): 120 kg
  • Max. load Load BGV C1 (8-fold): 60 kg
  • Max. load Load BGV C1 (10-fold): 50 kg
  • Max. load Load BGV C1 (12-fold): 40 kg
  • Max. mirror ball diameter: 100 cm
  • Rotation speed: up to 1 rpm

Lisainfo

Kaal 6 kg
Mõõtmed 28.5 × 23.5 × 19 cm
