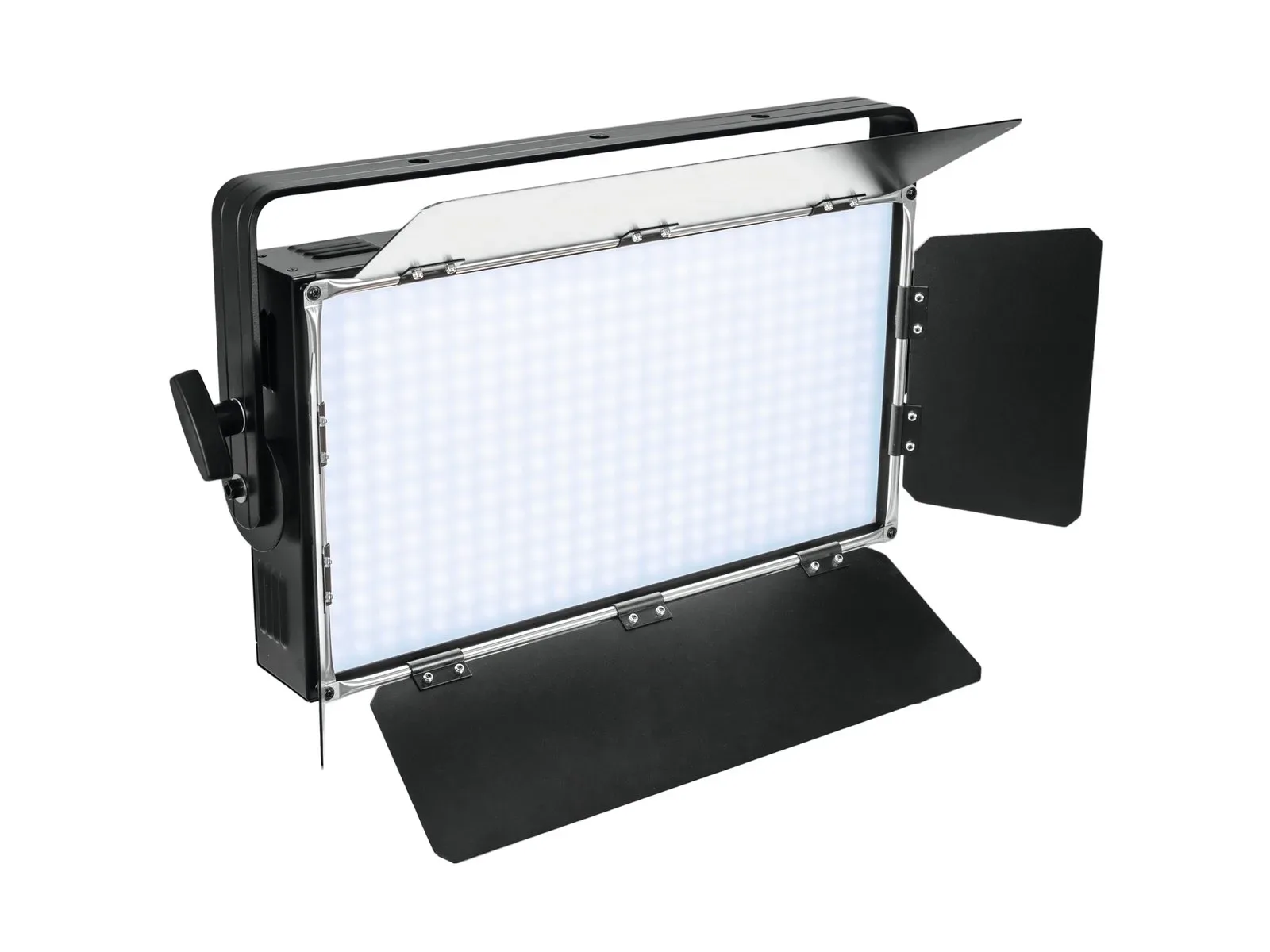

EUROLITE LED PLL-360 6000K Panel
Surface light with 360 cold white (CW)LEDs and DMX
Kirjeldus
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 130 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Lamp type: | LED lamp |
| Lamp specification: | Dimmable |
| LED: | 360 x 0,5 W SMD 2835 cold white (CW) |
| Color temperature: | 6000K |
| DMX channels: | 3 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Quick select potentiometer for brightness; DMX; Master/slave function |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Color rendering index (CRI): | 94 Ra |
| Illuminance in Lux (lx): | Warm white (WW) 3m: 498 lx, 6m: 148 lx |
| Lamp life: | 50000 h |
| Luminous flux: | 9937 lm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | LCD display |
| Carrying handle: | 1 pc/pcs |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A – G): | F |
Lisainfo
| Kaal | 6.1 kg |
|---|---|
| Mõõtmed | 57 × 12 × 31 cm |
