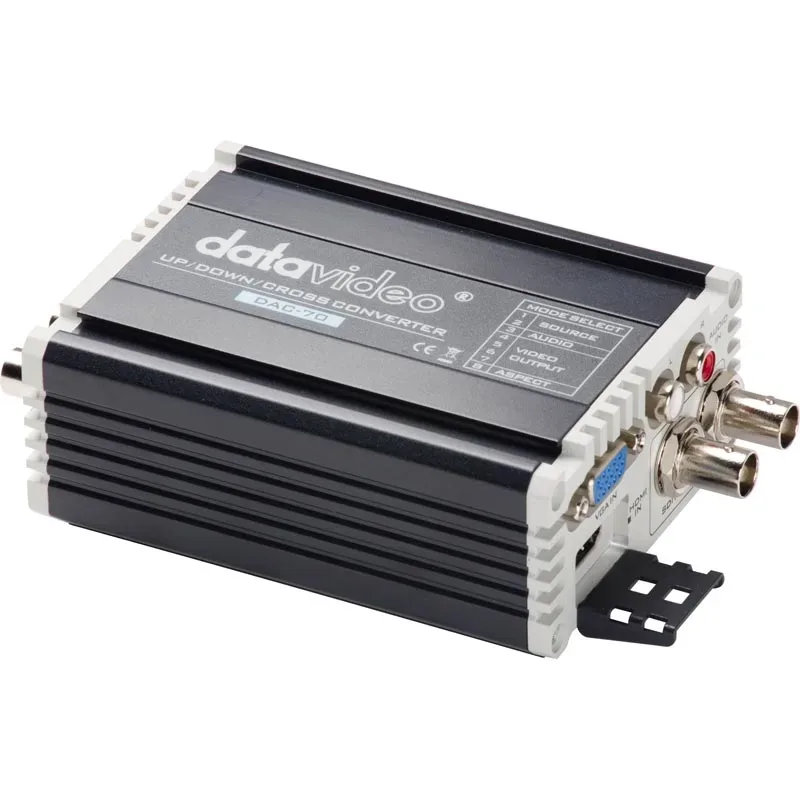

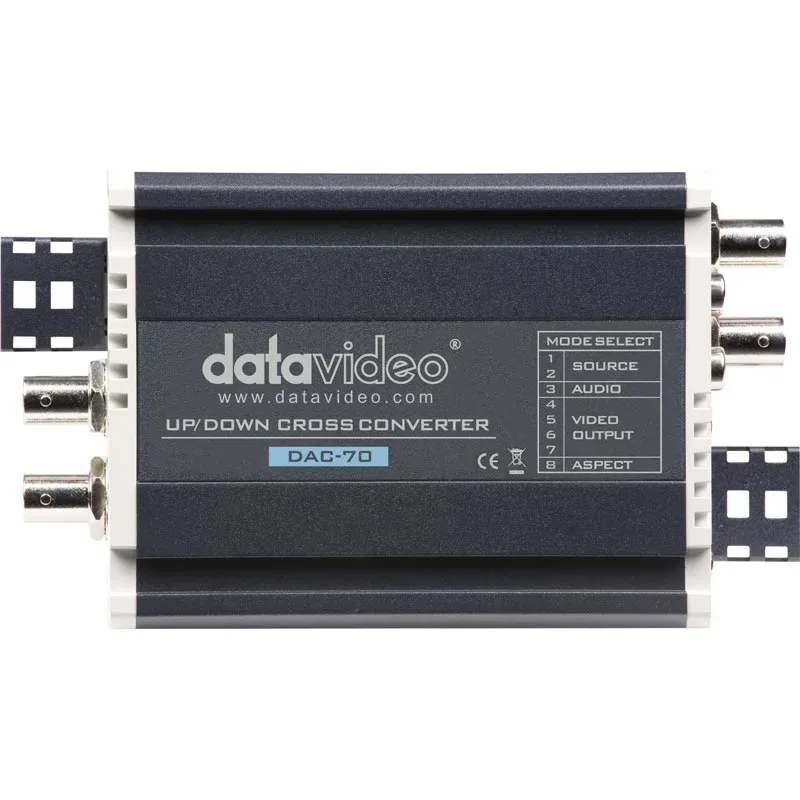

Datavideo DAC-70 Multi format up /down /cross converter
Multi format up /down /cross converter “Many formats in (auto detect ) to many formats out (by dipswitch selection)” Input connectors: VGA (up to 1600×1200), HDMI-video , (HD-)SDI and RCA audio. Output connectors: HDMI and 2x (HD) SDI. Video output formats: 480/576i, 720P50/59,94/60, 1080i50/ 59,94/60, 1080P23,98/24/25/50/60 The DAC-70 supports HDCP for HDMI input. Supports multi-channel audio (SDI / HDMI 8 ch audio embedded).
_Cross-Convert and Scale up to 3G Between HDMI, SDI, or VGA.
-Ultra Wide Range Scaler for Excellent Compatibility
The DAC-70 supports a multitude of video resolutions ranging from SD to Full HD. If you need to connect two otherwise incomptible video devices together, the Swiss Army Knife of converters has you covered.
-Add External Audio or Keep the Embedded Audio
Keep the embedded audio in the stream, or replace the audio using the RCA inputs
-Adjustable brightness, contrast, hue, and saturation settings.
Use the DAC Center Utility, the video output can be adjusted. Simply connect a PC computer to the DAC-70 via USB.
-Built-in Distribution Amplifier
The DAC-70 always scales, converts, and outputs video to 3 ports (2x SDI and 1x HDMI)
Kirjeldus
| DAC-70 Up / Down / Cross Converter | |
|---|---|
| Conversion | VGA/HDMI/SDI to HDMI/SDI Multi-format Up/Down/Cross |

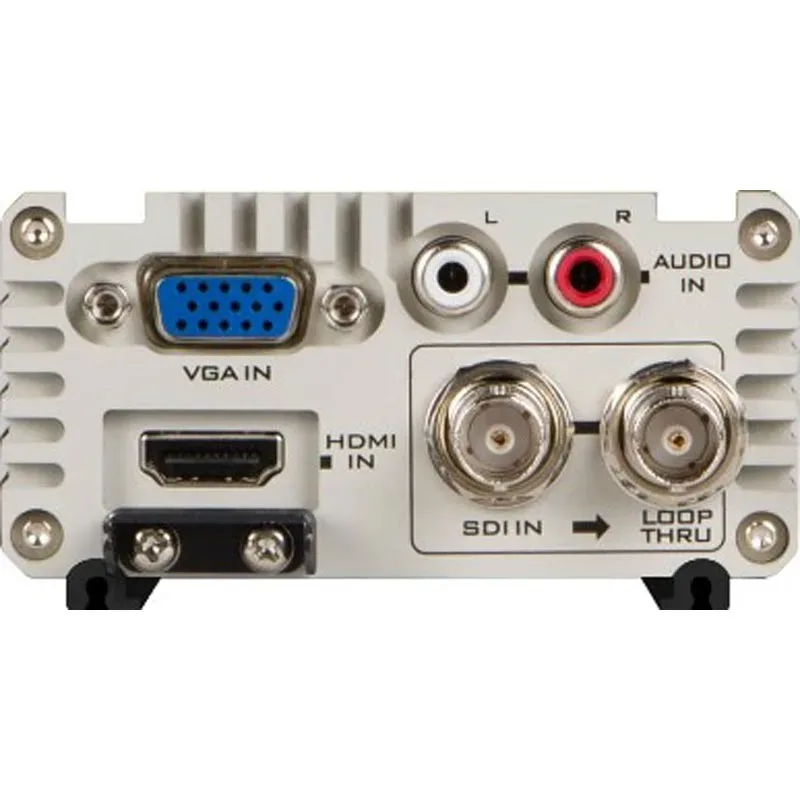

| Video Inputs | 1x VGA, 1x HDMI, 1x 3G/HD/SD-SDI |
| Loop Through | Yes |

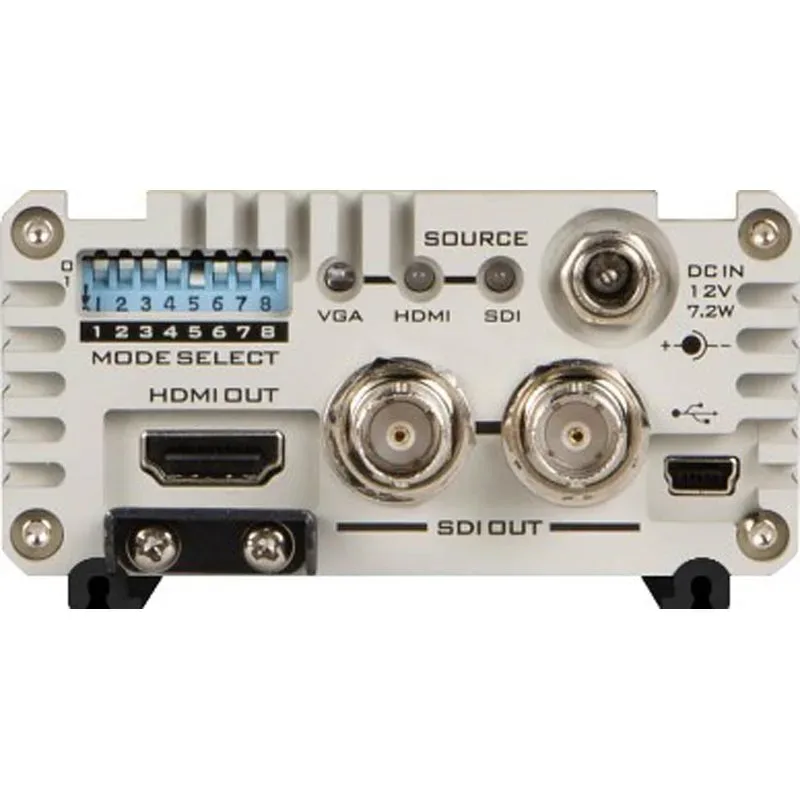

| Video Outputs | 2x 3G/HD/SD-SDI with embedded Audio 1x HDMI |
| Audio Inputs | 2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded |
| Audio Outputs | SDI embedded audio up to 8CH, 48KHz, PCM audio HDMI embedded audio up to 8CH, 48KHz, PCM audio |

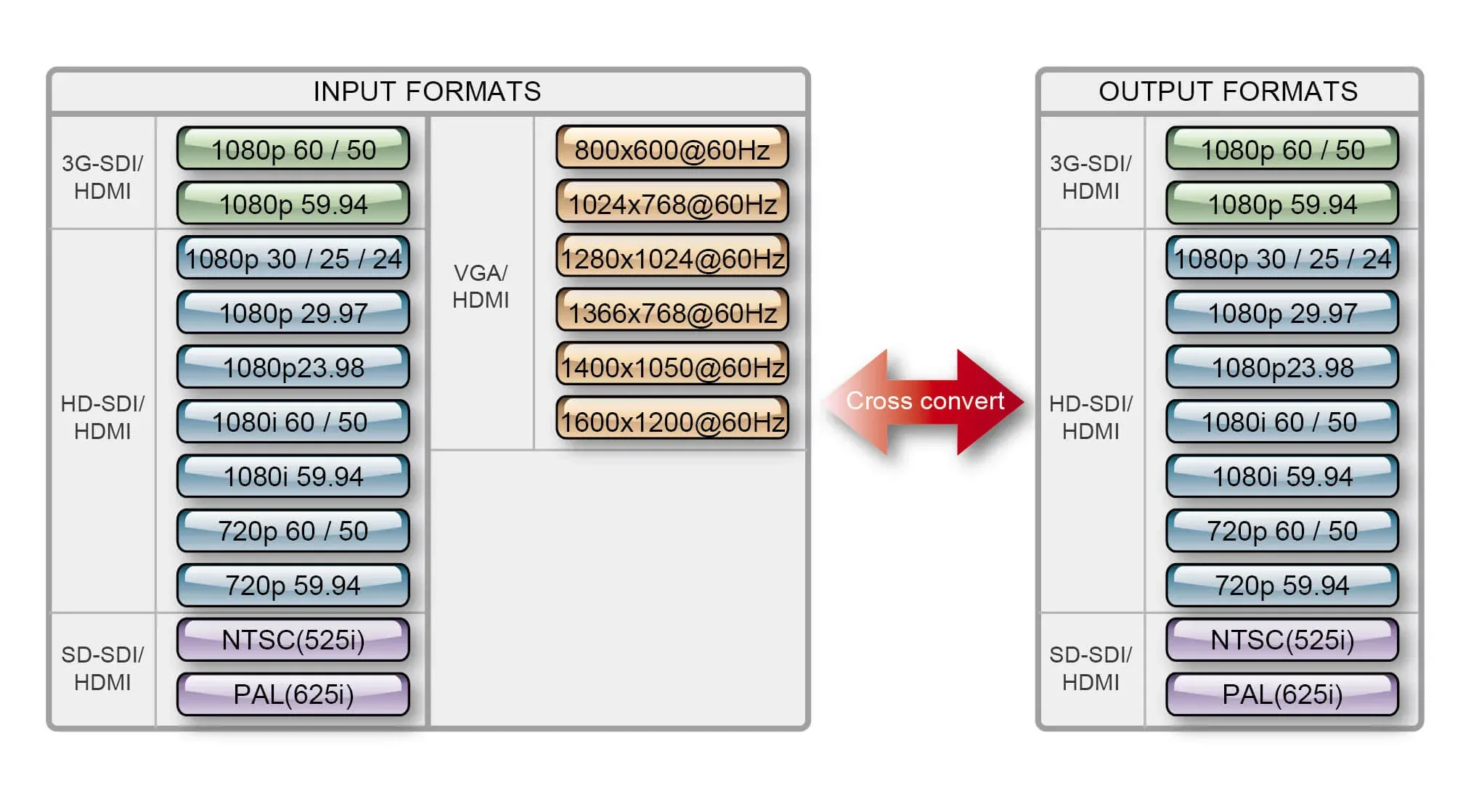

| Supported Video Input Formats | 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 576p, 576i, 525i, 480p, 480i, 1920×1080(60Hz), 1280×720(60Hz), 1600×1200(60Hz), 1400×1050(60Hz), 1366×768(60Hz), 1280×1024(60Hz), 1024×768(60Hz), 800×600 (60Hz) |
| Output Resolutions | 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 525i |
| Equalizer | Yes |
| Reclock | Yes |
| SDI Cable Drive | Yes |
| Dimension (LxWxH) | 112 x 85 x 45 mm |
| Weight | 0.4 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V, 6W |
| What’s in the Box | 1 x DAC-70 1 x AD Switch DC 12V 1 x DIP switch Pin 8 label 1 x Thank You Card |
