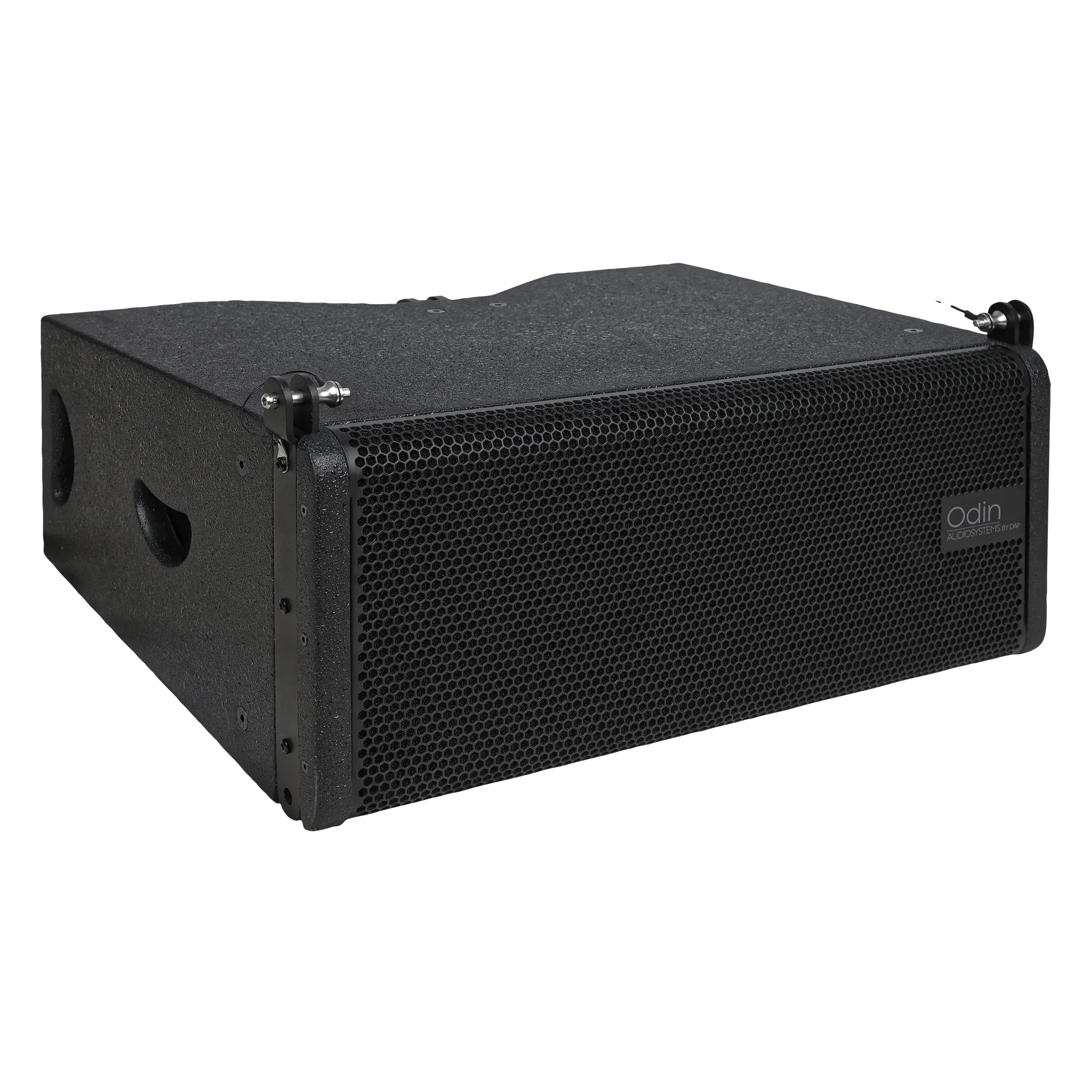

DAP Odin T-8A

The DAP Odin T-8A is a versatile 800-watt Bi-Amp Line Array Satellite Speaker, suitable for small to large crowds. They are stackable up to 4 units and hangable to up to 12 units. The variety of options allows you to set the correct sound dispersion and DSP settings according to the application and location.

The Odin T-8A is equipped with two 8″ Celestion Neodymium MID Woofers and two 1″ Celestion Neodymium compression drivers, producing up to a staggering 129 dB SPL at 1 meter distance. It will work perfectly in combination with any Odin subwoofer. A specially designed waveguide, phase plug, and configurable DSP-optimised amplification make sure that the T-8A delivers under any circumstance and in any setup.

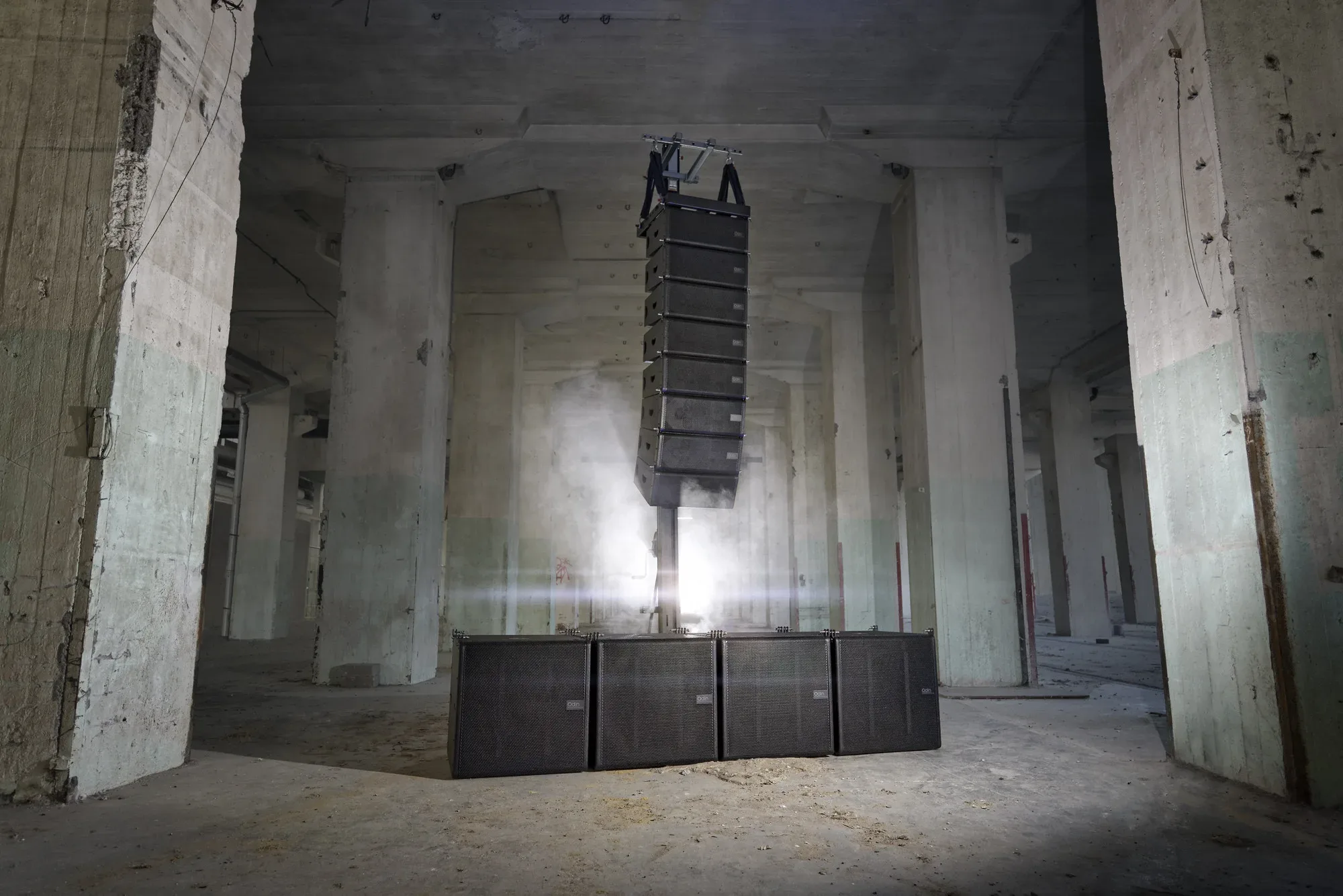

The handy hanging system allows you to build up and break down a complete Odin Line Array set in no time and on your own. In addition, it is a very modular system, so you can place a DAP Odin Line-Array installation at any location. Various accessories are available for stacking, hanging or using a sub/top combination as a satellite setup. For example, consider the 35 mm pole mount adapter, stack frame and fly bar, where the vertical array angle of satellite speakers can be adjusted in 6 steps, from a 0° to 7.5° spread angle.
The free Odin Editor software in combination with the CL-4 Connect, allows you to freely adjust the EQ, gain and delay per speaker or per group of speakers from a Windows PC/laptop. It also allows you to monitor live information from each speaker, such as amplifier temperature and high/low output. In addition, EASE Focus 3 software can be used to calculate the splay angle and “Throw”. A plug-in has been developed for adding our speakers to its database.
Please be aware that powerCON and network cables are not included.

Tootekood: 8717748384737 Kategooria:


Low Driver Power 650 W
High Driver Power 150 W
Power Amplifier RMS Output 800 W
Power Amplifier Peak Output 3200 W
Main Outputs 1
Main Output Connector 3-pin XLR
Mono Inputs 1
Mono Input Connector 3-pin XLR
Audio Specifications
THD Level < 0.5 %
Signal-to-noise Ratio > 90 dB
AD/DA Convertor Sample Rate 48 kHz
Amp Technology Class AB & D
Damping Factor 200 :1
Speaker System 2-way Line-Array
Speaker Sensitivity (1 W/1 m) 97 dB
Maximum SPL at 1 m 129 dB
DSP Processor Bitrate 32-bit
Frequency Response (-3 dB) Minimum 80 Hz
Frequency Response (-3 dB) Maximum 19000 Hz
Crossover Frequency (Low) 90 Hz
Crossover Frequency (High) 1600 Hz
Woofer Diameter 8 “
Woofer Voice Coil Diameter 2 “
Woofer Magnet Type Neodymium
Compression Driver Diameter 1 “
Compression Driver Voice Coil 1.75 “
Compression Driver Magnet Type Neodymium
Dispersion Angle (Horizontal) 100 °
Dispersion Angle (Vertical) 10 °
Sound Editing
Equalizer Gain Range 30 dB
Parametric Output Equalizer 8 Bands
Crossover Filter Types Butterworth
Crossover Slopes 24 dB
Phase Reverse Yes
Internal Storage
User Presets Yes
User Presets Capacity 10
Control and Programming
Control Mode PC Software, Stand Alone
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 300 W
Fuse 5 A

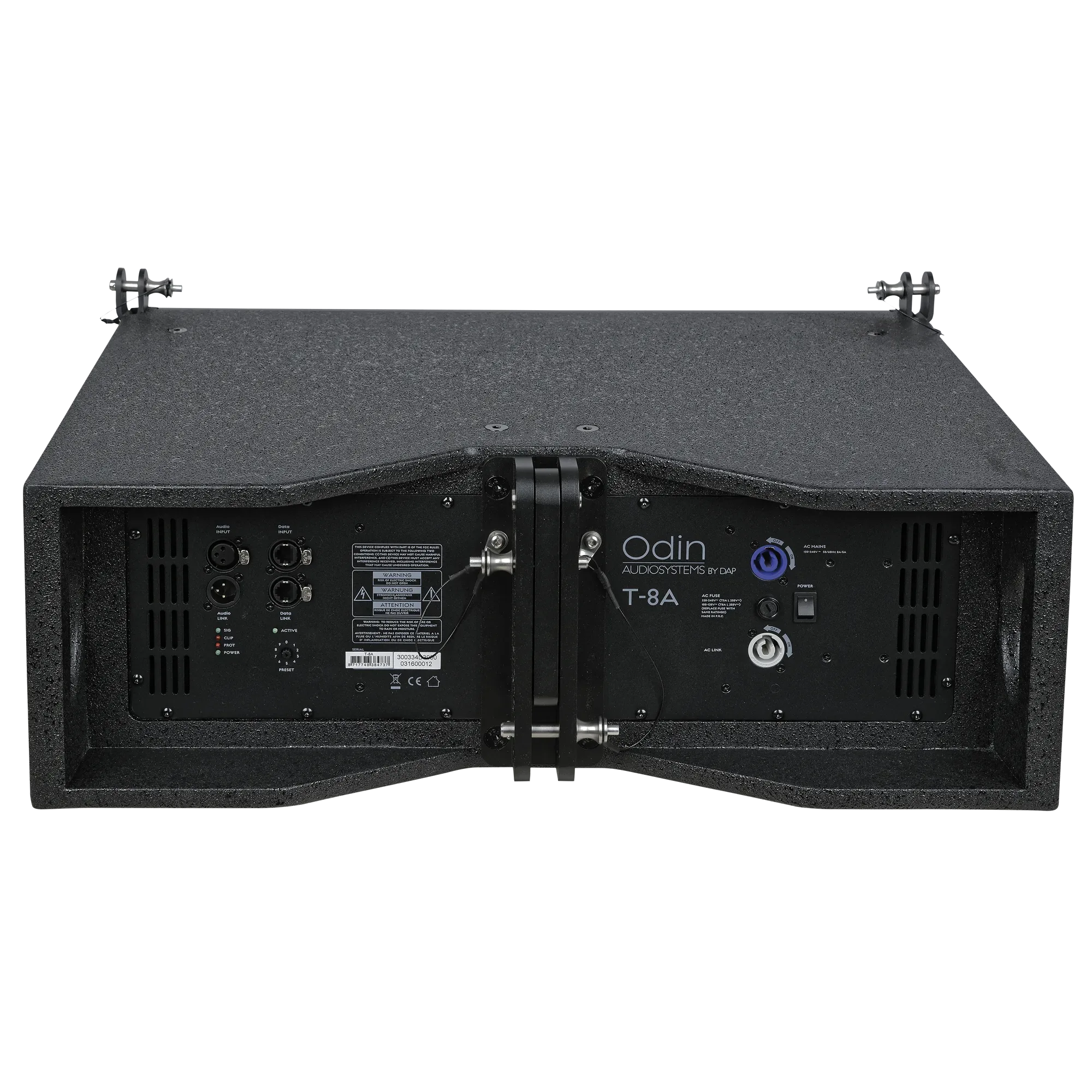

Power Connector In powerCON Blue
Power Connector Out powerCON Grey
Data Connector In etherCON
Data Connector Out etherCON
Mechanical Specifications
Amplifier Cooling Axial fan
Material Plywood
Material Thickness 18 mm
Colour Black
Finish Painted
IP Rating IP20 (indoor use only)
Product Properties
Pole Mount Optional 35 mm pole mount
Electronic Protection Convection-fan, Digital limiter, Overload, Thermal
LED Indicators Clip, Data connect, Power, Protect, Signal
Rotatable Horn No
Useable as Monitor/Wedge No
Speaker Grille Material Steel
Speaker Handle Positions Left side, Right side
Mounting Options 3-point suspension
Rigging Options Flying, Stacking


Kaal 22.5 kg
Mõõtmed 63.5 × 46.8 × 30 cm
