DAP M15

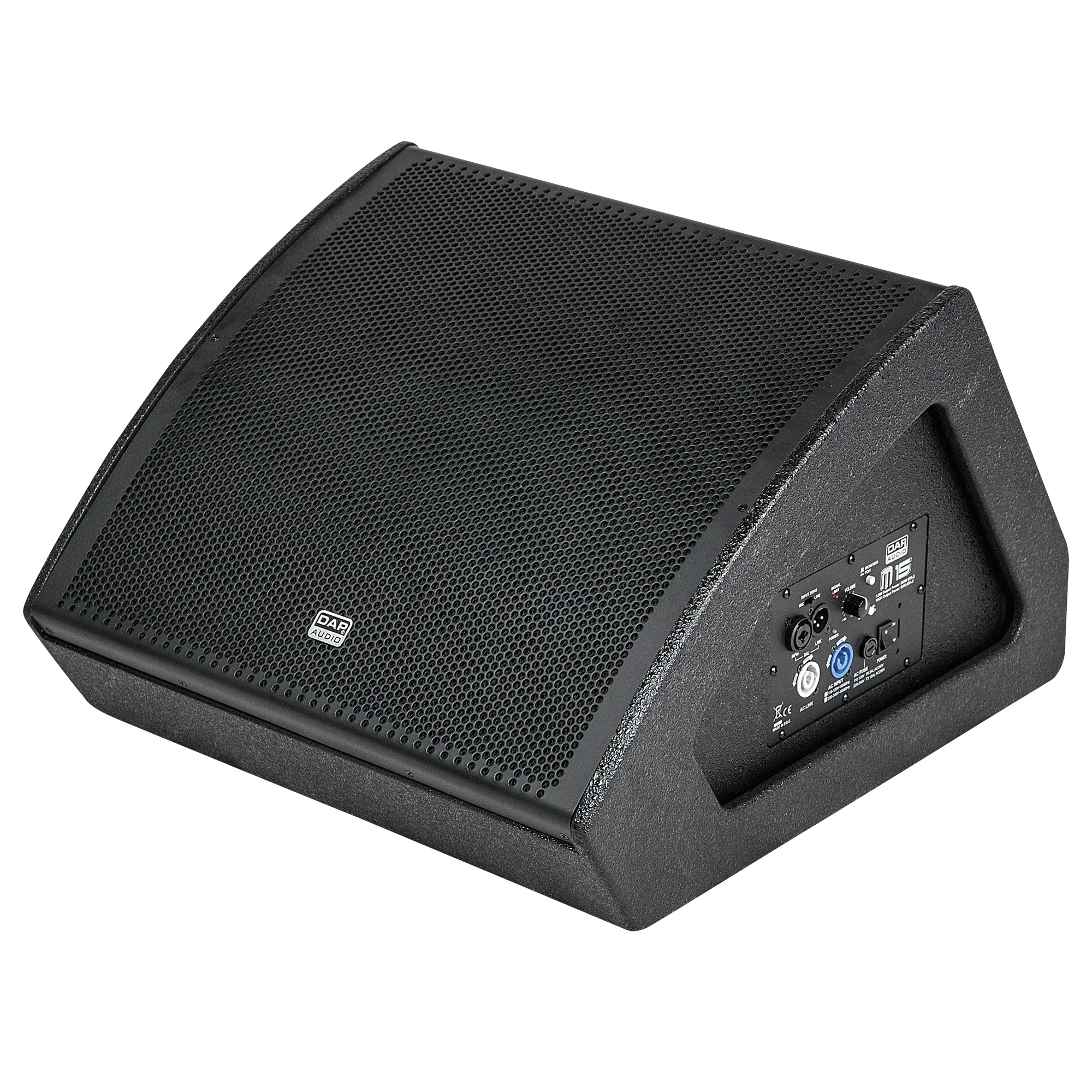

The DAP M15 is an active floor monitor speaker with a 15-inch woofer and a total power of 415 watt, especially built to amplify sounds on stage. It features a 60° wedge design and a coaxial speaker for transparent and direct ’in your face’ sound with consistent coverage. The powerful Class D amplifier provides good sound quality, even at a high volume.

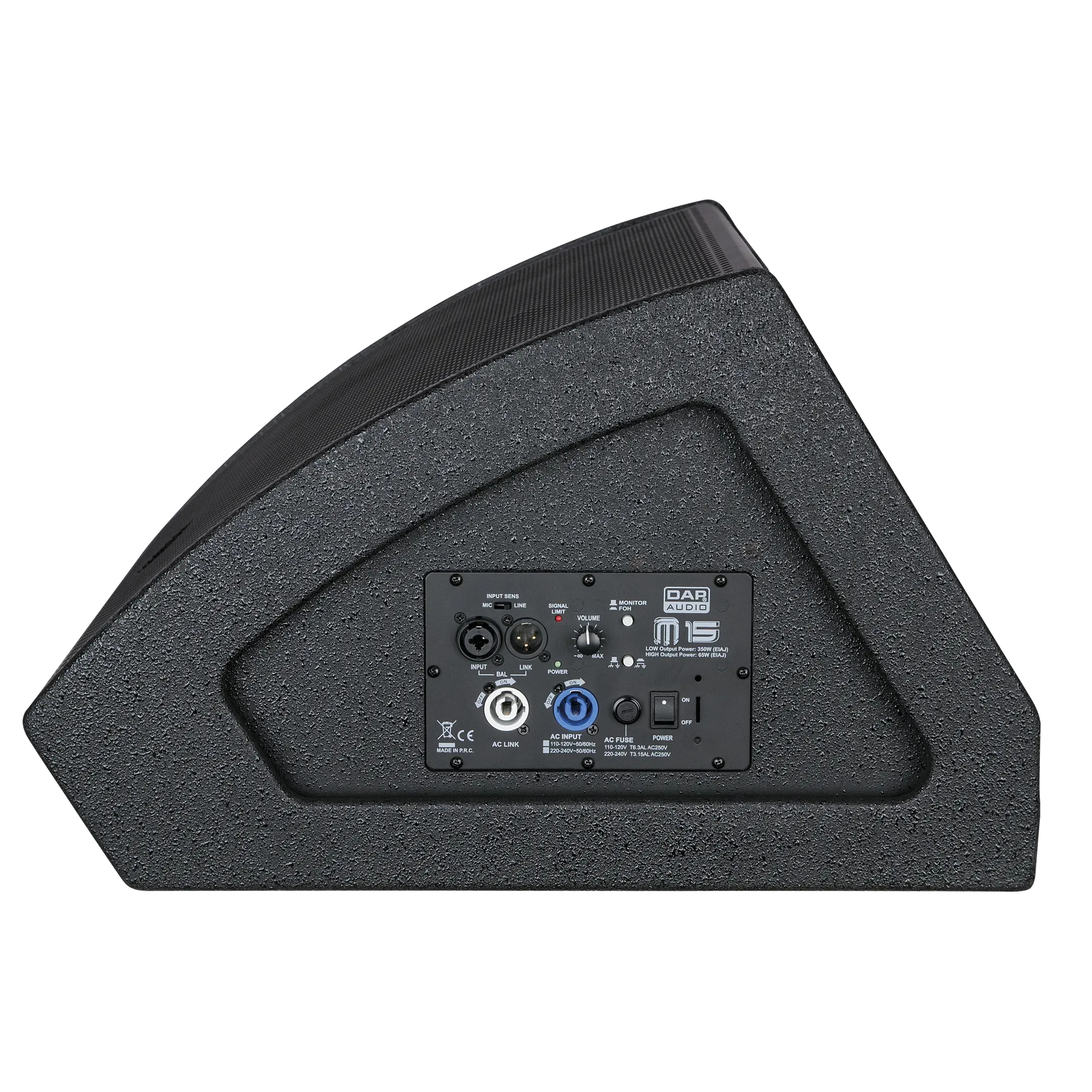

The built-in amplifier of the M15 has an XLR/Jack input connector, XLR line output connector and powerCON in and through connector. It’s equipped with a volume control, EQ preset selector, ground switch and AC fuse for adjusting the sound and output level.
Integrated handles protect the recessed amplifier and connectors from getting damaged and makes it a very easy-to-handle floor monitor, even in the toughest stage environments.

Kogus *

Tootekood: 8717748332202 Kategooria:

Kirjeldus

Outputs
Low Driver Power 350 W
High Driver Power 65 W
Power Amplifier RMS Output 415 W
Main Outputs 1
Main Output Connector 3-pin XLR
Inputs
Mono Inputs 1
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Audio Specifications
THD Level < 0.5 %
Signal-to-noise Ratio > 90 dB
Amp Technology Class D
Damping Factor 200 :1
Speaker System 2-way
Speaker Sensitivity (1 W/1 m) 99 dB
Maximum SPL at 1 m 128 dB
Frequency Response (-10 dB) Minimum 60 Hz
Frequency Response (-10 dB) Maximum 20000 Hz
Woofer Diameter 15 “
Woofer Voice Coil Diameter 2.5 “
Woofer Magnet Type Ferrite
Compression Driver Diameter 1 “
Compression Driver Voice Coil 1 “
Compression Driver Magnet Type Neodymium
Dispersion Angle (Horizontal) 70 °
Dispersion Angle (Vertical) 70 °
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 80 W
Fuse 3.15 A
Power Connector In powerCON Blue
Power Connector Out powerCON Grey
Mechanical Specifications
Amplifier Cooling Axial fan
Material Wood
Material Thickness 15 mm
Colour Black
Finish Painted
IP Rating
IP20 (indoor use only) Product Properties

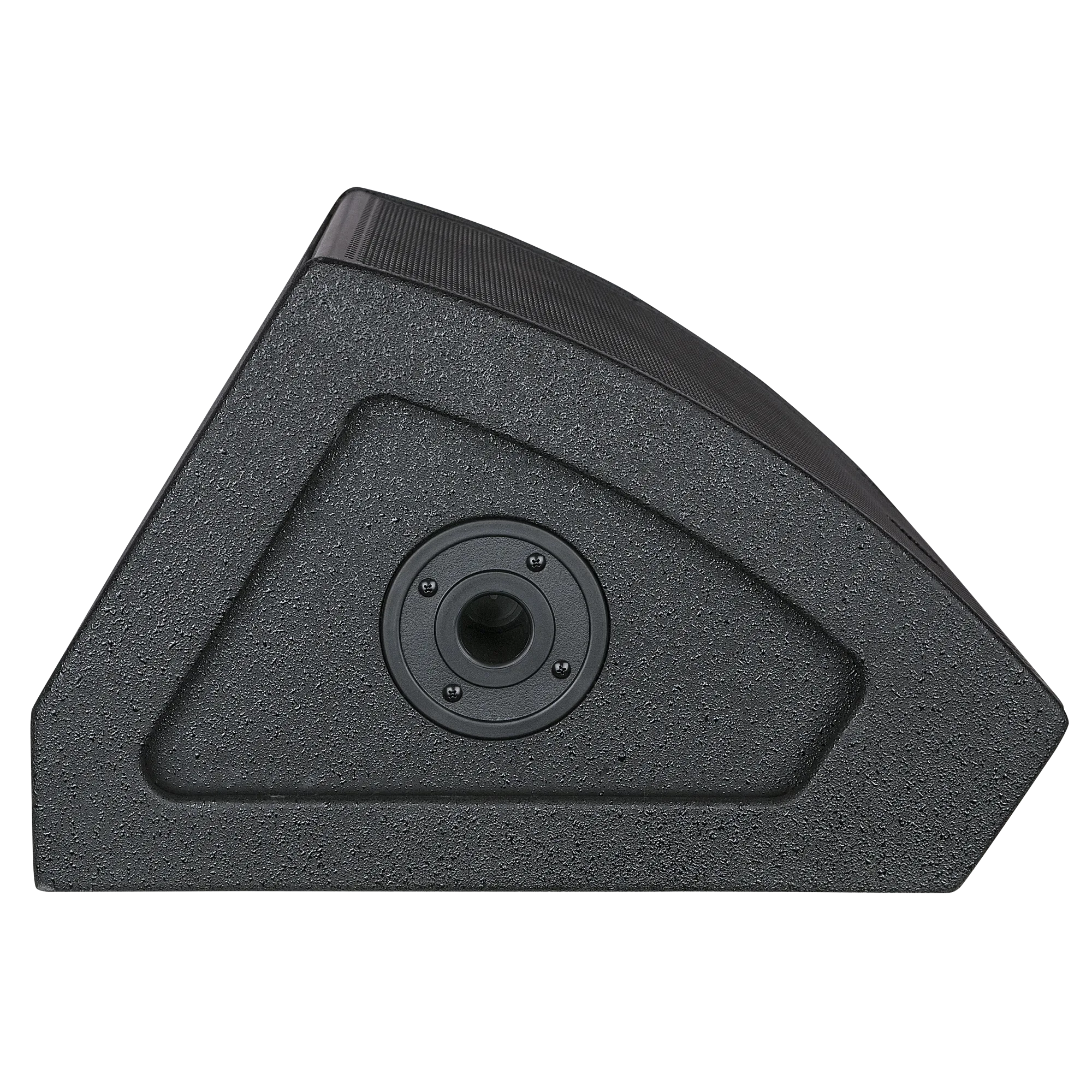

Pole Mount 35 mm
Electronic Protection Clip limiter (fixed), Convection-fan, DC voltage, Thermal
LED Indicators Clip, Power
Rotatable Horn No
Useable as Monitor/Wedge Yes
Speaker Grille Material Steel
Speaker Handle Positions Left side, Right side

Lisainfo

Kaal 18.4 kg
Mõõtmed 49.5 × 53.8 × 34.2 cm
