Cerevo FlexTally Wireless Tally
Cerevo FlexTally Wireless Tally Set in Bag switcher tally lamp on air lamp studio camera for live shooting cue lamp video mixer video switcher video switcher for live streaming.
The wireless connection between FlexTally Station and the Lamp units operates using the 433 MHz band. The wired connection uses RS-485 serial communication and can be used at up to several hundred meters distance. It also supports daisy-chain connection via the Wire Connection Terminal. FlexTally keeps cabling simple and flexible.
Kirjeldus

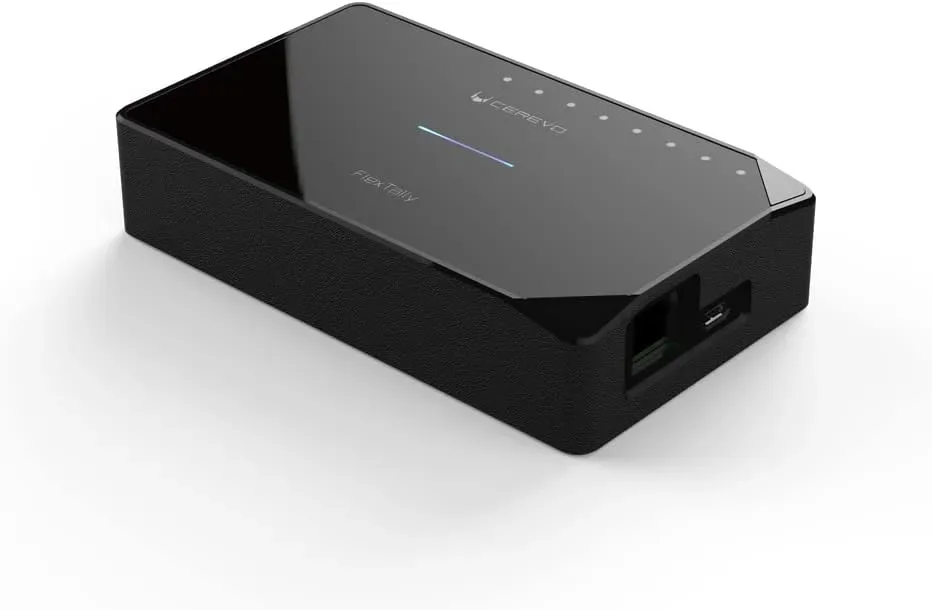

Station
Size (WxDxH): 128x77x28mm
Weight 142g 164g
Power Supply Micro-USB
Wireless Connection: 315MHz (Japan)/433MHz (US/EU)
Wired Connection: RS-485 Serial
Max. Connectable Lamps 16（※）
Max. Battery Runtime: N/A 6 Hours
Battery Charging Time: N/A:2 Hours
Brightness Adjustment: N/A 4 Steps (Preview: Green, On-air: Red

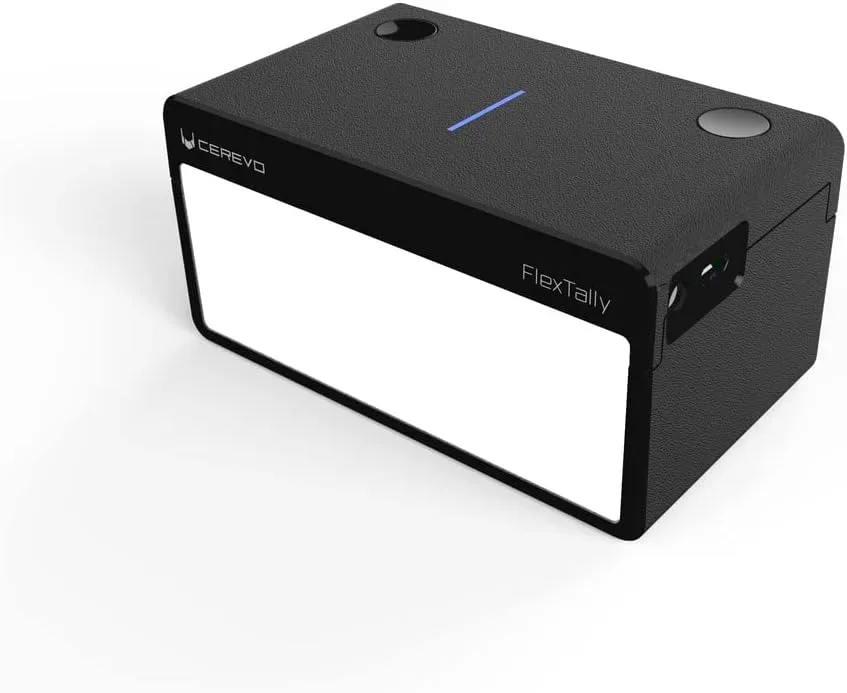

Lamp
Size (WxDxH): 100x60x50mm
Weight: 164g
Power Supply: Micro-USB / Internal Battery
Wireless Connection: 315MHz (Japan)/433MHz (US/EU)
Wired Connection: RS-485 Serial
Max. Battery Runtime: 6 Hours
Battery Charging Time: 2 Hours
Brightness Adjustment: 4 Steps (Preview: Green, On-air: Red)
Up to 32 lamps will be supported after a future firmware update. When GPIO connection is used, only 8 lamps can be controlled.
