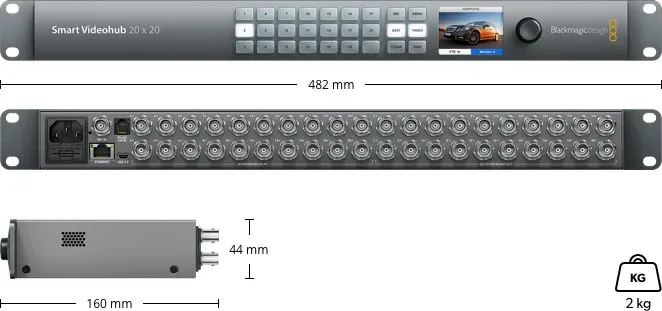

Blackmagic Smart Videohub 20×20
Smart Videohub 20×20 is a larger advanced Ultra HD mixed format router with built in control panel and monitoring. Ideal for larger workgroups and mobile broadcasting, it includes advanced 6G-SDI connections so you can simultaneously connect and route any combination of SD, HD and Ultra HD video all on the same router at the same time. You also get revolutionary new visual routing with the unique spin knob control, push button panel and the built in LCD screen. Also includes Ethernet for remote control and a fully customizable software development kit for Mac and Windows.
Kirjeldus
Connections
SDI Video Inputs: 20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Outputs: 20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G.
Video Input Re-Sync: None
SDI Reclocking: On all SDI outputs
Reference Input: Tri-Sync or Black Burst.
Control Panel Connection: Ethernet.
Serial Control Connection: RJ-7 RS-422.
Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
Updates: USB.
Router Control: 21 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router Configuration: Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for setting IP address only.
RS-422 Router Control: 1 x input for controlling router crosspoint switching.
Control
Built in Control Panel: 20 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.
External Control Panel: Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Display Built in LCD for video and menu settings.
Software
Software Control: Router control included free for Windows™ and Mac™.
Internal Software Upgrade: Via included updater application.
Power Requirements
Power Supply: 1 x Internal 100 – 240V AC. IEC power cable required.
Power Fail Protection: Router connections preserved and restored instantly at power on.
Power Consumption: 34 Watts
Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
Lisainfo
| Kaal | 2.65 kg |
|---|
