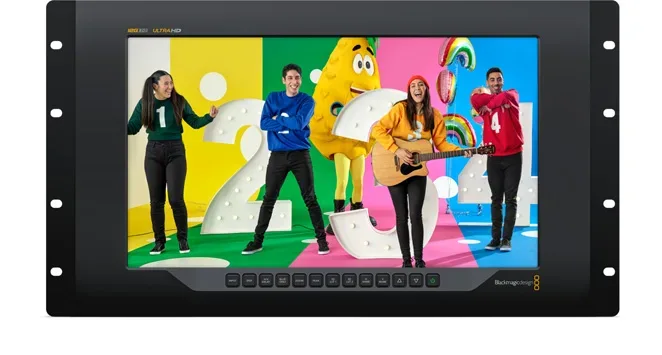

Blackmagic Design SmartView 4K G3
SmartView 4K G3 is the first Ultra HD broadcast monitor with both 12G-SDI and SMPTE-2110 IP video inputs. SmartView 4K G3 connects directly to IP based broadcast systems as well as a range of 12G-SDI professional video equipment up to 2160p60, making it perfect for broadcast and live production. It includes AC and 12V DC power connections, 3D LUTs and monitoring controls such as focus peaking, H/V delay, blue only and framing guides.
Kirjeldus
NMOS IS-05 Connection Management v1.1.2
NMOS BCP‑002‑01 Natural Grouping
NMOS BCP‑004‑01 Receiver capabilities
Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Software
Internal Software: Upgrade Via included firmware updater software.
Settings Control: Via USB or Ethernet.
Display
Display Element: 15.6″ TFT Active Matrix LCD
Display Resolution: 3840 x 2160 pixels
Response: 25 ms
Contrast Ratio: 1000:1
Color: Depth 16.7 million colors
Power Requirements
Power Supply: 1 x Internal 100 – 240V AC 50/60Hz.
Power Inputs: 1 x IEC C14 socket for AC power.
1 x 5.5mm barrel +12V DC In for external power supply or battery use.
Power Consumption: 24 W
Physical Installation 6 rack units.
Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Relative Humidity: 0% to 90% non-condensing
Lisainfo
| Kaal | 3.6 kg |
|---|---|
| Mõõtmed | 48.3 × 26.6 × 7 cm |
