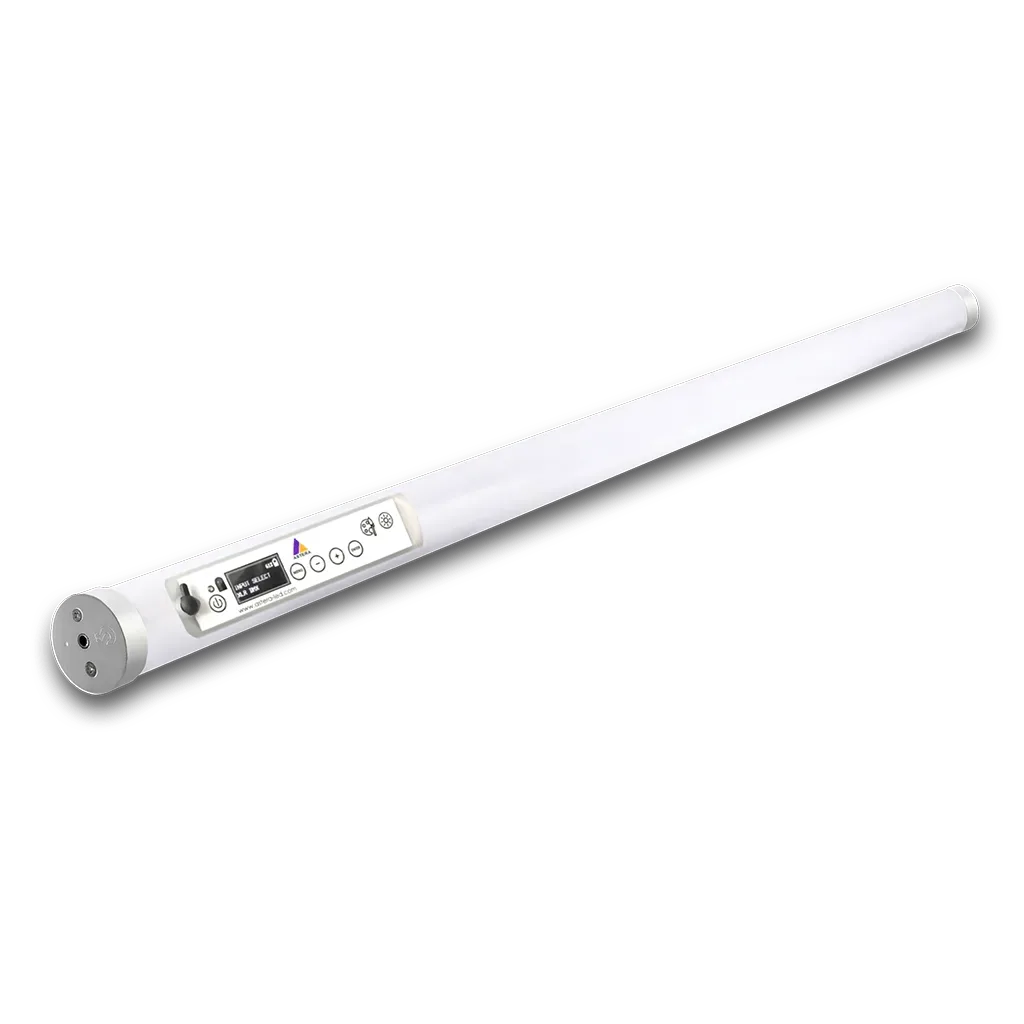

Astera Titan Tube
The ultimate LED tube for film, studio, stage and events.
itan Tube is the ultimate LED tube for filmmakers, studios, event technicians and any creative person. It emits powerful, tunable whites with ultra-high color rendering as well as colored light which can be applied to individual pixels or the whole tube. The tube offers unlimited range of usage; indoor or outdoor, AC-powered or on battery, on the go with the AsteraApp, with wired or wireless DMX.
Kirjeldus
| Order Code | FP1 | FP1-BTB |
|---|---|---|
| LED Engine | Titan LED Engine | |
| Colors | RGBMintAmber | |
| Total LED Power | 72 W | |
| LED Power draw | 48 W | |
| Luminous Flux 3200K | 2 535 Lumens | |
| Luminous Flux 4000K | 2 900 Lumens | |
| Light Output 3200 K @ 1m | 708 Lux | |
| Light Output 4000 K @ 1m | 785 Lux | |
| CRI(Ra)/TLCI 3200-6500K | ≥96 | |
| Beam Angle | 135° x 115° | |
| Field Angle | 175° x 160° | |
| Strobe | 0 – 25 Hertz | |
| Pixel | 16 | |
| Battery Runtime | Up to 20 hours | |
| Battery Runtime (max. Brightness) | 1 h 45 m | |
| Battery Lifetime | 70 % after 300 cycles | |
| Charging Time (nominal) | 3 hours | |
| DC Input | 24 VDC – 2 A | |
| DC Connector | 5.5 mm x 2.1 mm | |
| Wired DMX | Yes (via FP1-PWB / FP3-DTL / PWB-2-86) | |
| CRMX Receiver | Built-in | |
| BluetoothBridge BTB | No | Yes |
| Wireless Protocols | CRMX, UHF | CRMX, UHF, Bluetooth, WiFi |
| Wireless Range | CRMX/UHF up to 300 m / 330 yds | CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds |
| Infrared Control | Yes | |
| Housing Material | Polycarbonate, metal end caps | |
| IP Rating | IP65 (only with FP1-SP) | |
| Ambient Operating Temperature | 0 – 40 °C / 32 – 104 °F | |
| Mounting Options | 2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4″-20UNC thread), 1x TubeStand | |
Lisainfo
| Kaal | 1.35 kg |
|---|---|
| Mõõtmed | 4.3 × 103.5 cm |
