Antari F-7

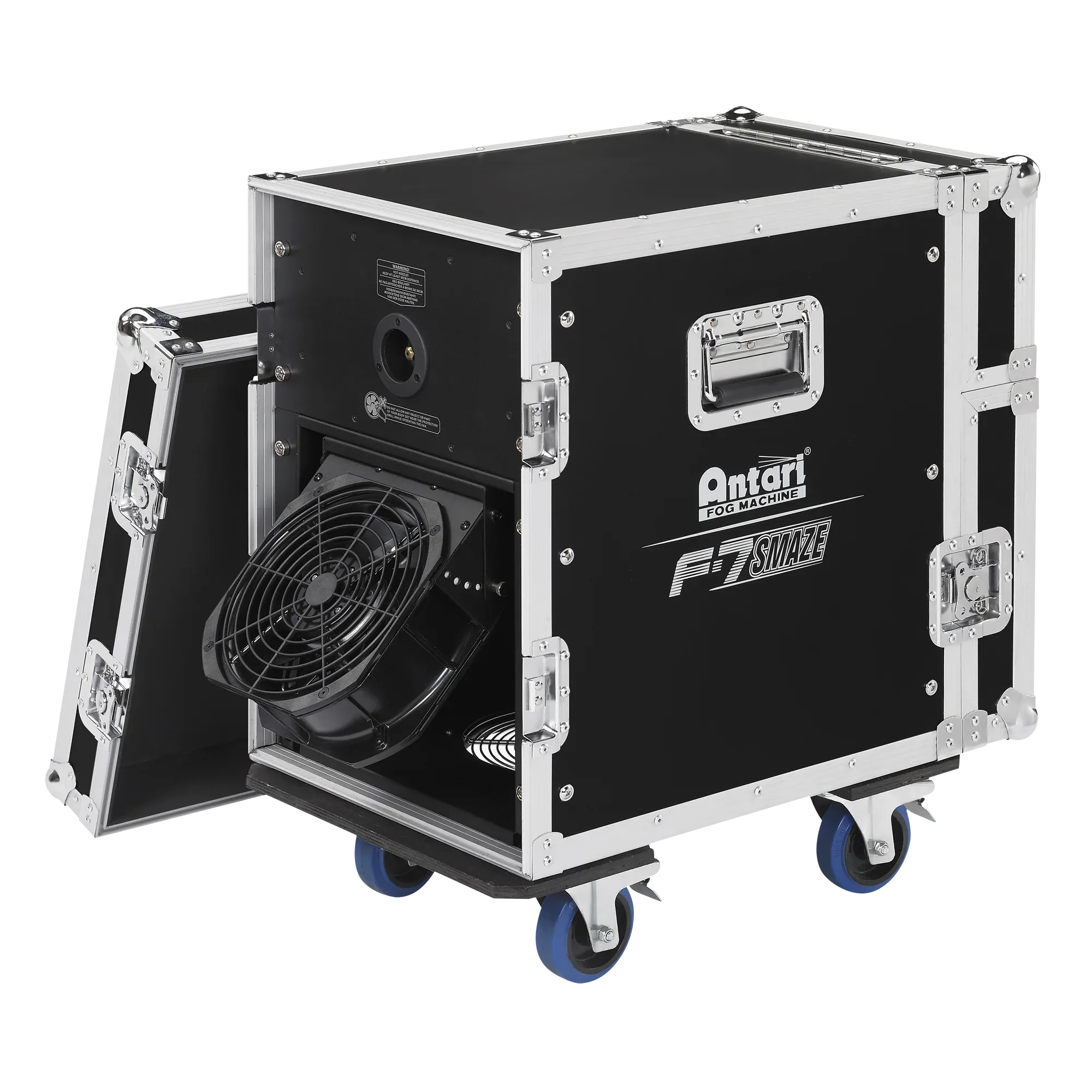

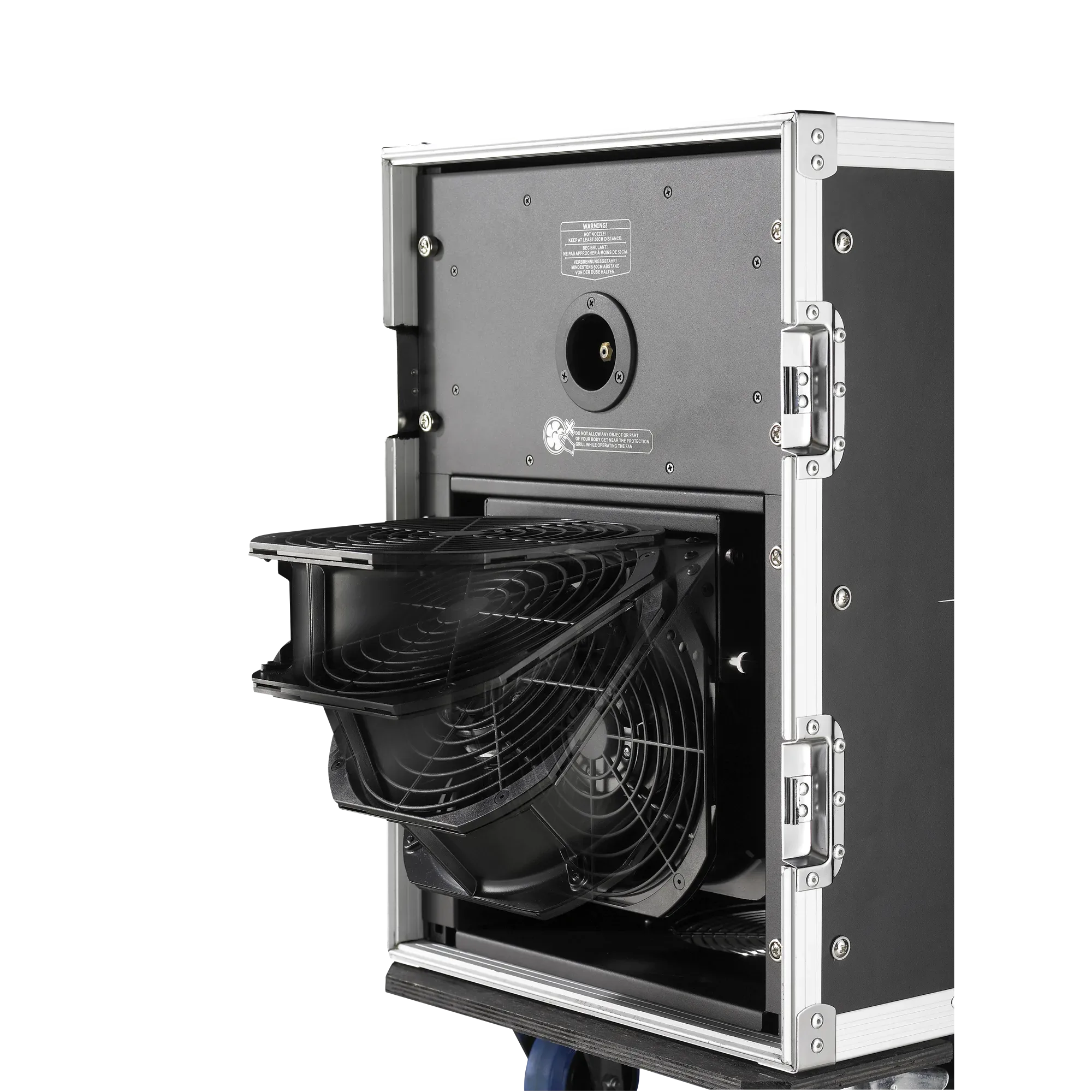

The F-7 Smaze machine offers an all-in-one solution for big venues and large stages. It combines a powerful fog machine with a fazer to fill up large venues very fast and create a nice thin layer of haze. The built-in fan allows you to direct the fog easily because of the adjustable angle.

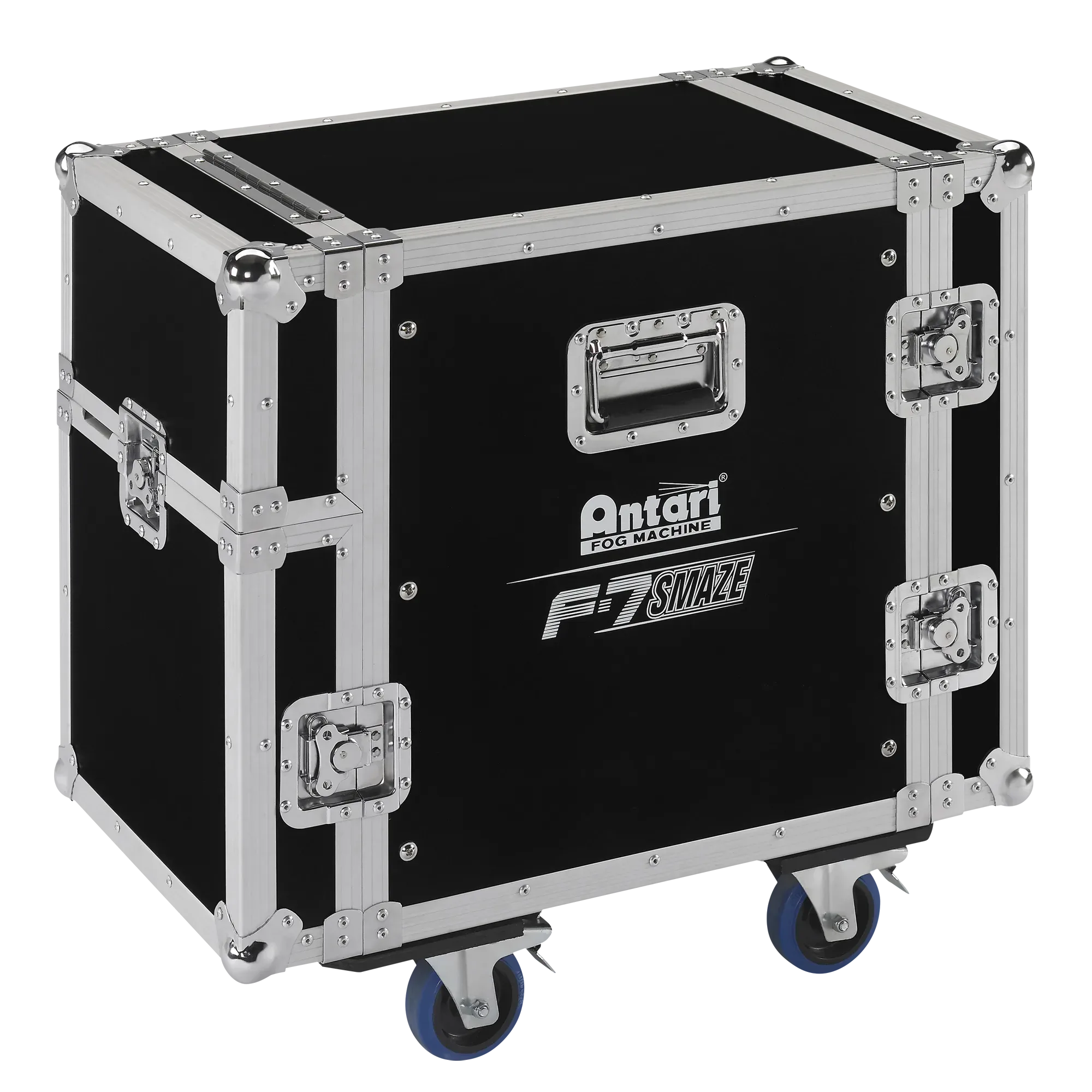

The F-7 Smaze is equipped with the latest air pump technology and the self-cleaning feature and is protected in a flight case housing to keep the machine running under the most rough stage situations. It can be controlled manually, by DMX and wireless thanks to the built-in W-DMX module from Wireless solutions Sweden.

Kogus *

Tootekood: 8717748359971 Kategooria:

Kirjeldus

Electrical Specifications and Connections
Power Supply 240 V AC 50/60 Hz
Power Consumption 1620 W
Power Connector In powerCON Blue
Power Connector Out powerCON Grey
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Heater 1600 W
Warm-up Time 8 min
Mechanical Specifications
Output Direction Forward
Housing Flightcase
Colour Black
Fluid Consumption 140 ml/min
Fluid Tank Capacity 5 L
IP Rating IP20 (indoor use only)
Control and Programming
Control Mode DMX, Manual, Remote, Stand Alone, Timer
DMX Channels 3
Wireless Wireless DMX
Display LCD
Product Properties
LED Indicators Power
Thermal Specifications
Maximum Ambient Temperature 40 °C

Lisainfo

Kaal 52.5 kg
Mõõtmed 72.8 × 42.8 × 71.9 cm
