Altar DA-410, distrobution unit DA-240

ALTAIR DA-410 is a compact, high performance distribution amplifier / zone mixer / mic splitter capable of processing 2 stereo input signals to obtain 5 stereo output signals. Used as a zone mixer, the unit can control 5 zones in stereo mode or 10 in mono mode. As an audio distributor, it will deliver up to 10 mono output signals, or 5 in stereo mode. This device will make a perfect solution for audio distribution in press rooms, recording units, audio production, broadcast, etc. Individually selected MIC/LINE input preamplifiers allow signal splitting to feed additional mixers without quality or headroom degradation. Up to 4×8 or lxlO active splitting is possible.The unit has a monitoring system, with buit-in microspeakers, and headphone output.All the inputs and outputs are electronically balanced(XLR).Additional options with input or output transformers,and 2 parametric equaliser cards.

Split box-240 – Complement of the Altair DA-410.
40 balanced OUTPUT, Distribution Unit, 3 POSITION attenuator per output, INDIVIDUAL short circuit protection in any output, Output TRANSFORMER optional, COMBO ™ & XLR link on inputs, Survival audio Patch: XLR male, XLR female, Jack ¼, RCA and minijack to ease interconnections.

Kogus *

Kategooria:

Kirjeldus



  • 2 Stereo Inputs x 5 Stereo Outputs (10 in mono mode).
  • Mic/Line active splitter, 4×8/1×10.

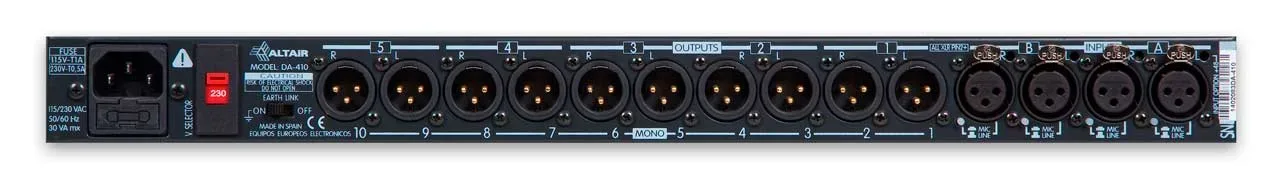

  • Balanced Inputs/Outputs.

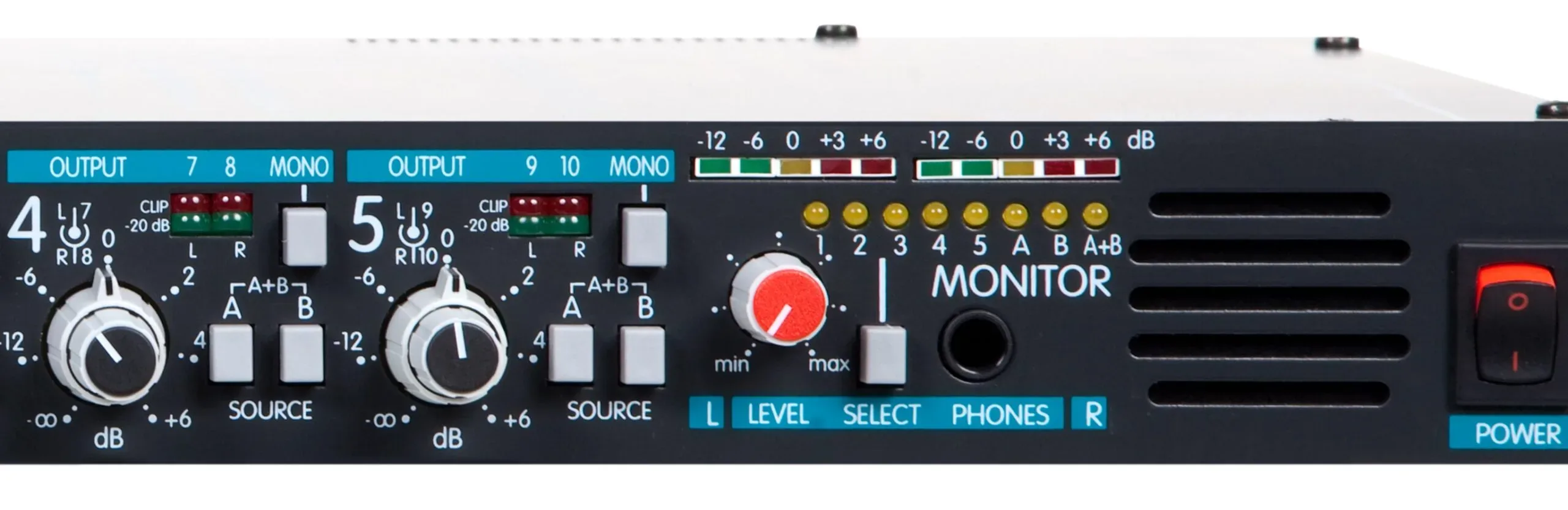

  • Built-in miniature stereo speakers. PFL and headphones output.
  • Input and Output compatibility to mono/stereo signals.
  • Optional transformers in all the inputs and/or outputs.
  • Up to 2 optional parametric equalisation points on each output.
  • TDA-O: Transformer output. Each transformer drives two outputs. Maximum: 20 units.

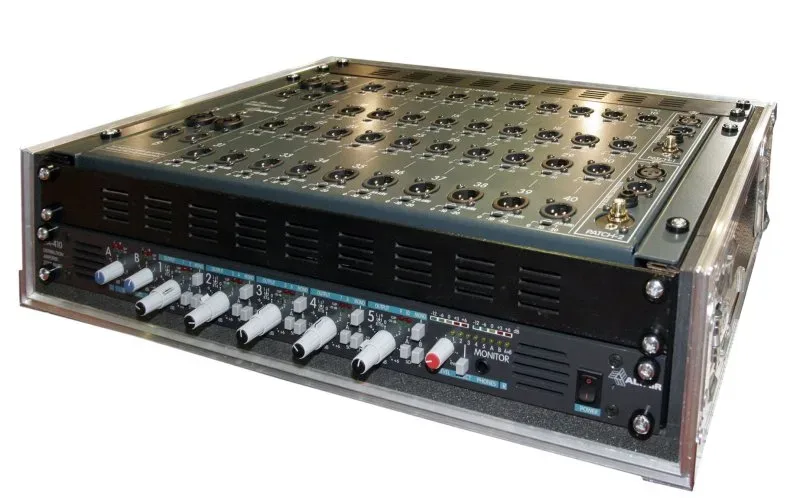

  • Flight case: for DA-410 and DA-240. It includes wiring and blind panels.
  • The Altair DA-240 appears to fulfill the huge demand of distributed audio signals in press and multimedia events.
  • This passive panel must be associated to the well known active ALTAIR DA-410 distribution and zone mixer unit.
  • The panel allows a direct input and output XLR connections. Each Stereo input pairs can be selected as mono inputs.
  • All the the 40 outputs incorporates full range attenuators to interface a line level signal to a mic level to drive camera and recording sets easily.

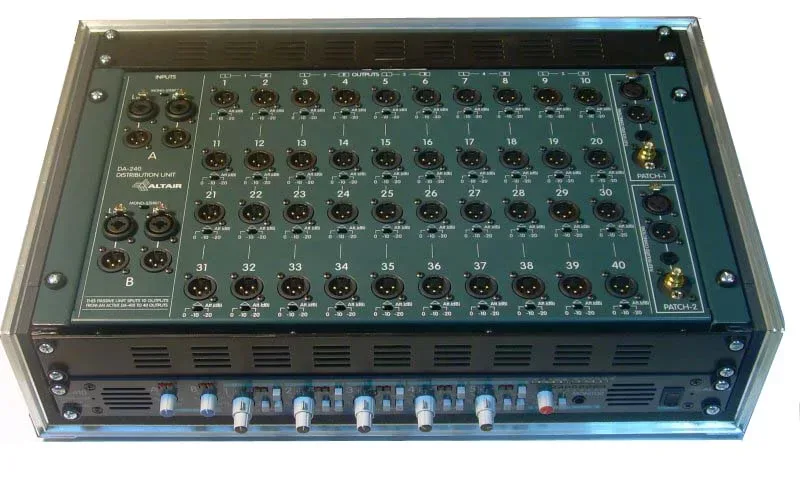

  • Outputs are grouped in 10 blocks of 4 outputs vertically. Each block incorporates individual A/B input selection, speaker monitoring and level adjustment in the DA-410 side.
  • All input and output are electronically balanced and can be optionally equipped with input and output transformer.
  • Two multigender patches are included to assist in difficult interconnections.
